2‑10
Chapter 2: BIOS information
2.3 Main menu

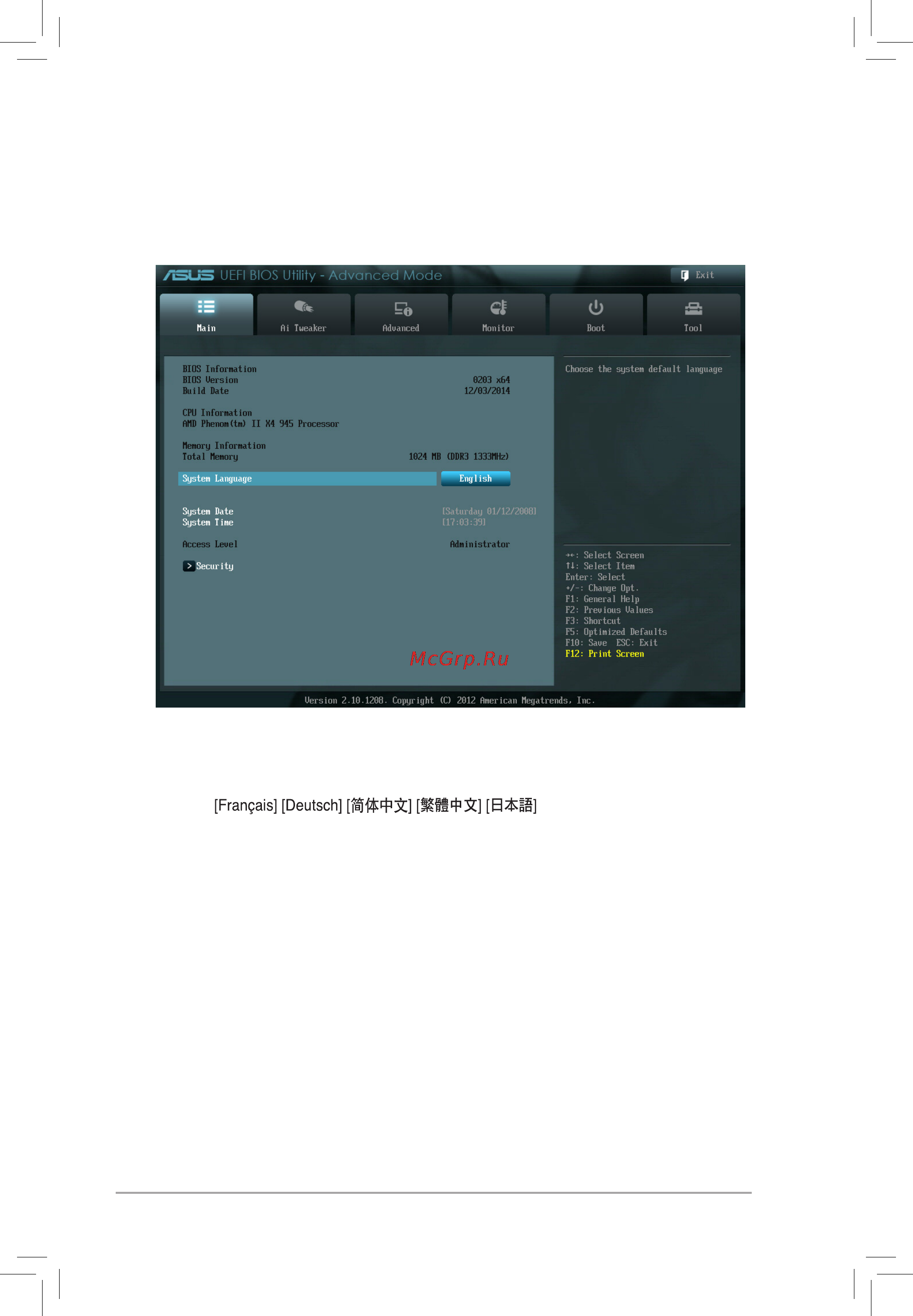

The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup
program. The Main menu provides you an overview of the basic system information, and
allows you to set the system date, time, language, and security settings.
2.3.1 System Language [English]
Allows you to choose the BIOS language version from the options. Conguration options:
[English] [Español] [Русский]
2.3.2 System Date [Day xx/xx/xxxx]
Allows you to set the system date.
2.3.3 System Time [xx:xx:xx]
Allows you to set the system time.
2.3.4 Security
The Security menu items allow you to change the system security settings.
