ASUS M5A97 PLUS
1-15
1.7.2 Internal connectors
1. CPU and chassis fan connectors (4-pin CPU_FAN, and 4-pin CHA_FAN1/2)
Connectthefancablestothefanconnectorsonthemotherboard,ensuringthatthe
black wire of each cable matches the ground pin of the connector.
• TheCPU_FANconnectorsupportsaCPUfanofmaximum2A(24W)fanpower.
• Onlythe4-pinCPUfanand4-pinchassisfansupporttheASUSFanXpert+feature.
DONOTforgettoconnectthefancablestothefanconnectors.Insufcientairowinside
thesystemmaydamagethemotherboardcomponents.Thesearenotjumpers!DONOT
place jumper caps on the fan connectors.
M5A97 PLUS

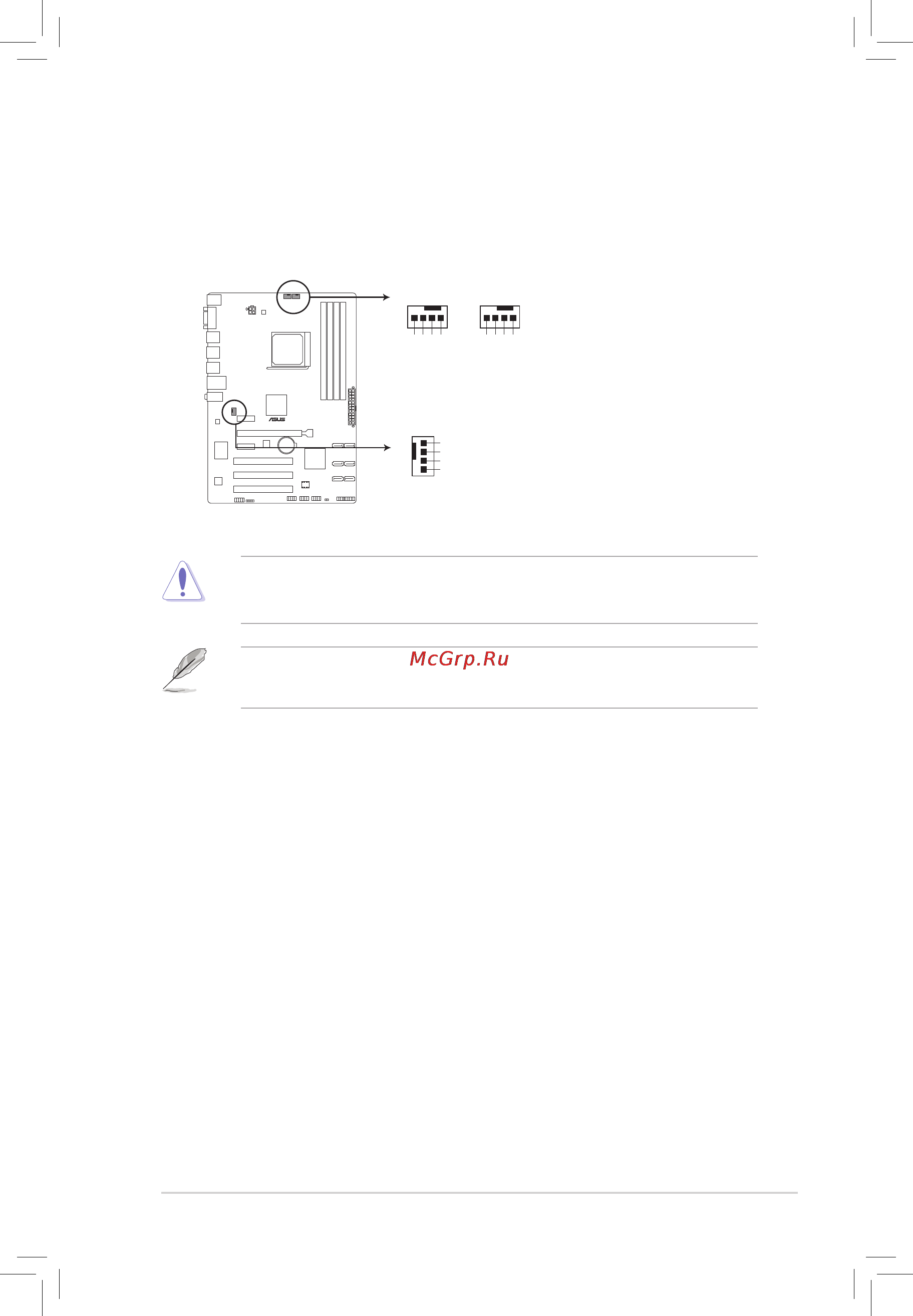

M5A97 PLUS Fan connectors
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
CHA_FAN2
+5V
CHA FAN IN
CHA FAN PWR
GND
CHA_FAN1
GND
CHA FAN PWR
CHA FAN IN
+5V
