2-4
Chapter 2: BIOS information

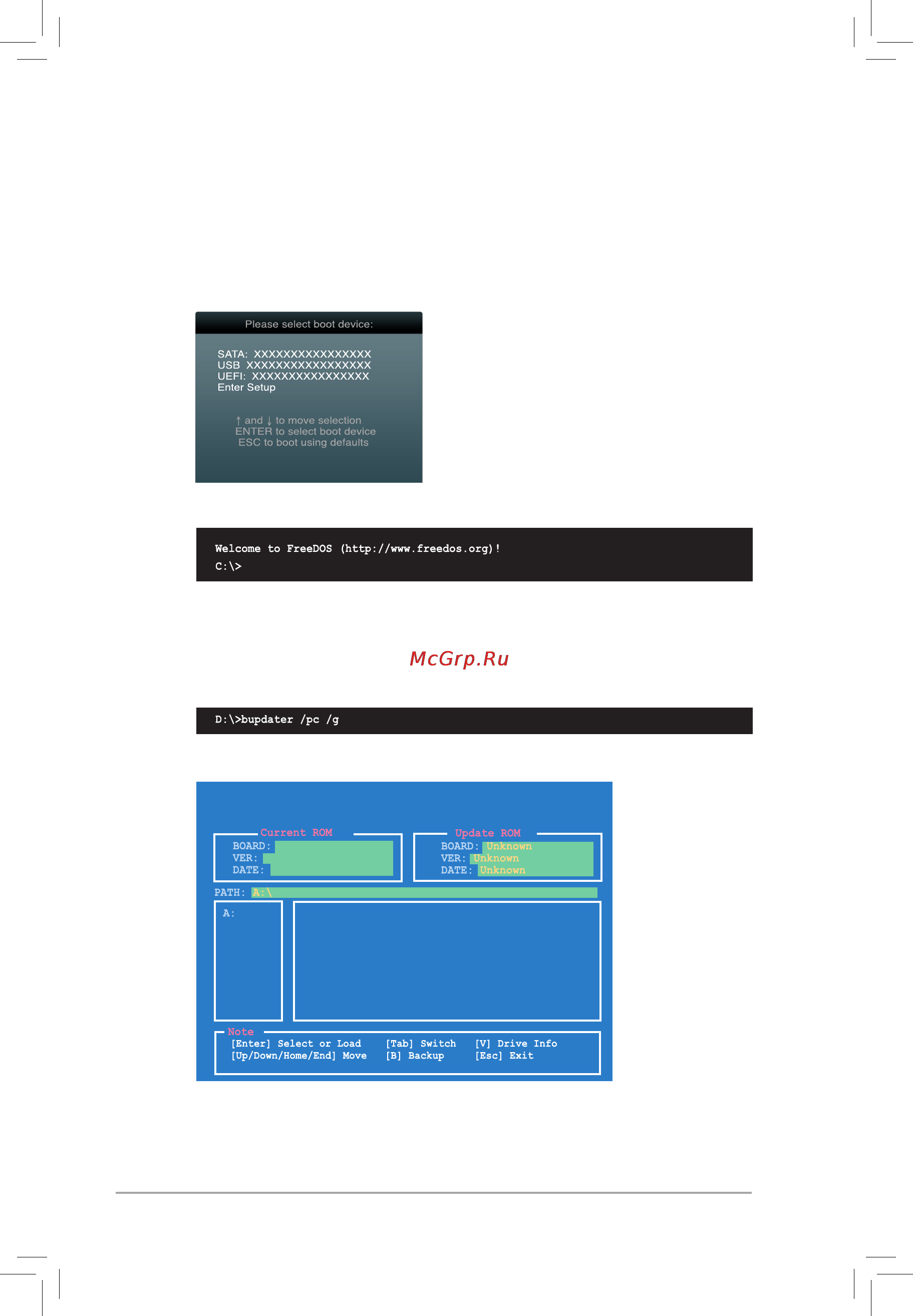

Booting the system to a DOS environment
1. Insert the DOS‑bootable USB ash drive with the latest BIOS le and BIOS Updater to
your computer’s USB port.
2. Boot your computer. When the ASUS Logo appears, press <F8> to show the BIOS
Boot Device Select Menu.
3. Select the optical drive as the boot device. The DOS screen appears.
Updating the BIOS le
To update the BIOS le using BIOS Updater:
1. At the FreeDOS prompt, type bupdater /pc /g and press <Enter>.
2. The BIOS Updater screen appears as below.
0302
M5A97P.CAP 8194 2014-02-21 15:25:48
02/21/2014
M5A97 PLUS
ASUSTek BIOS Updater for DOS V1.30
