2.5.1 Ai Overclock Tuner [Auto]
This item allows you to select the CPU overclocking options to achieve the desired CPU
internal frequency. Select any of these preset overclocking conguration options:
[Auto] Loads the optimal settings for the system automatically.
[Manual] Allows you to assign the BCLK (base clock) frequency manually.
The following ve items appear only when you set the Ai Overclocking Tuner to [Manual].
CPU Strap [Auto]
Manually select a strap value that is close to the target BCLK frequency for extreme
overclocking. Conguration options: [Auto] [100MHz] [125MHz] [167MHz] [250MHz]

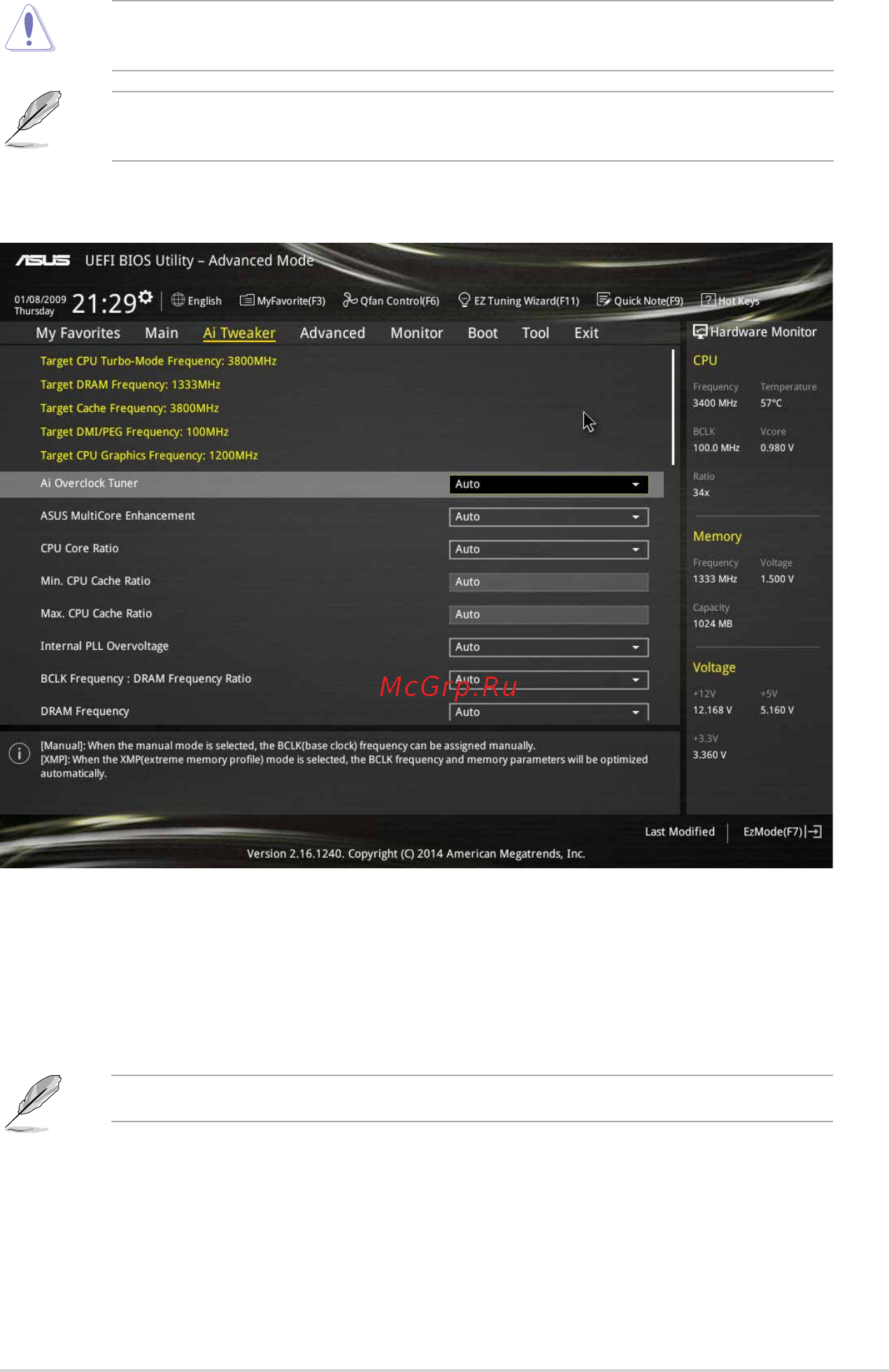

2.5 Ai Tweaker menu
The Ai Tweaker menu items allow you to congure overclocking‑related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld
values can cause the system to malfunction.
The conguration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.
Scroll down to display other BIOS items.
ASUS Z97-K/USB 3.1 2-19
