Asus z97-k/usb 3.1 [75/91] Monitor menu
![Asus z97-k/usb 3.1 [75/91] Monitor menu](/views2/1161775/page75/bg4b.png)
Power On By RTC [Disabled]
This item allows you to enable or disable the RTC (Real‑Time Clock) to generate a wake
event and congure the RTC alarm date. When enabled, you can set the days, hours,
minutes, or seconds to schedule an RTC alarm date. Conguration options: [Disabled]
[Enabled]
2.6.9 Network Stack Configuration
Network Stack [Disabled]
This item allows user to disable or enable the UEFI network stack. Conguration options:
[Disabled] [Enabled]
The following two items appear only when you set the previous item to [Enabled].
Ipv4 / Ipv6 PXE Support [Enabled]
This item allows you to enable or disable the Ipv4/Ipv6 PXE wake event. Conguration
options: [Disabled] [Enabled]

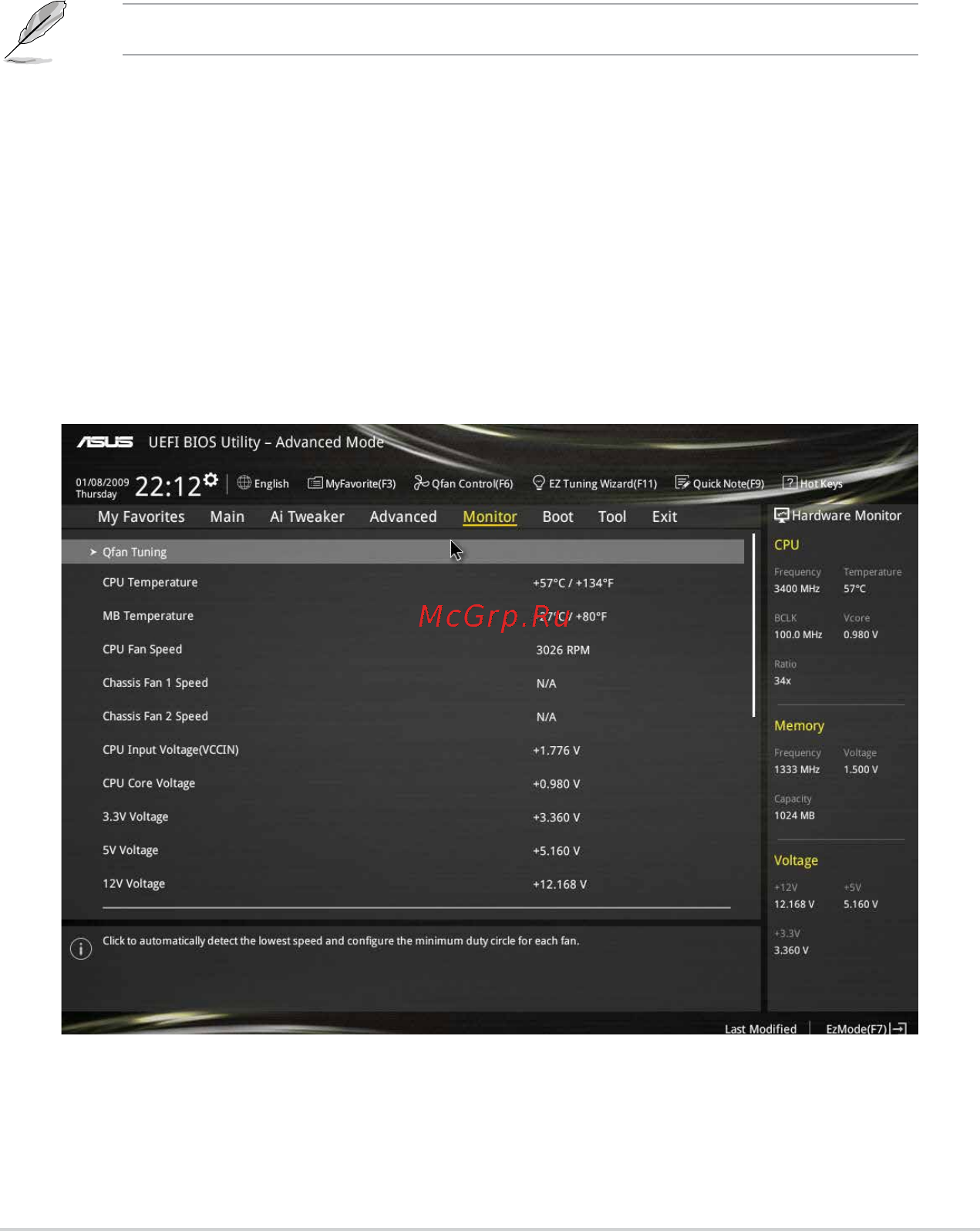

2.7 Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the other BIOS items.
ASUS Z97-K/USB 3.1 2-41
