Asus tuf sabertooth x99 [24/186] Motherboard layout

1-8

Chapter 1: Product introduction

Chapter 1

Refer to 1.2.9 Internal connectors and 2.3.1 Rear I/O connection for more information

about rear panel connectors and internal connectors.

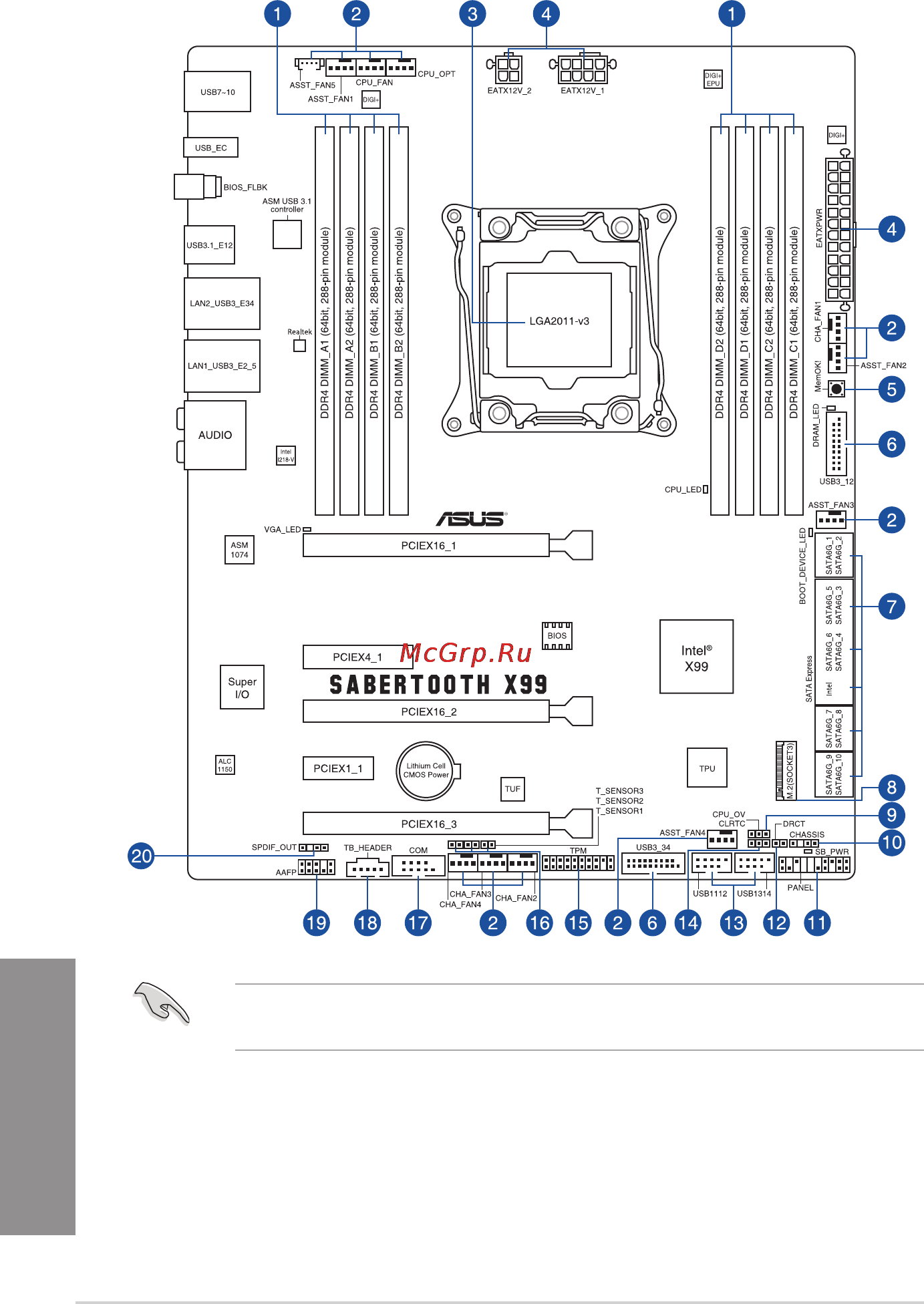

1.2.2 Motherboard layout
