Asus z170-e [54/128] Advanced mode
![Asus z170-e [54/128] Advanced mode](/views2/1162400/page54/bg36.png)
2-4
Chapter 2: BIOS Setup

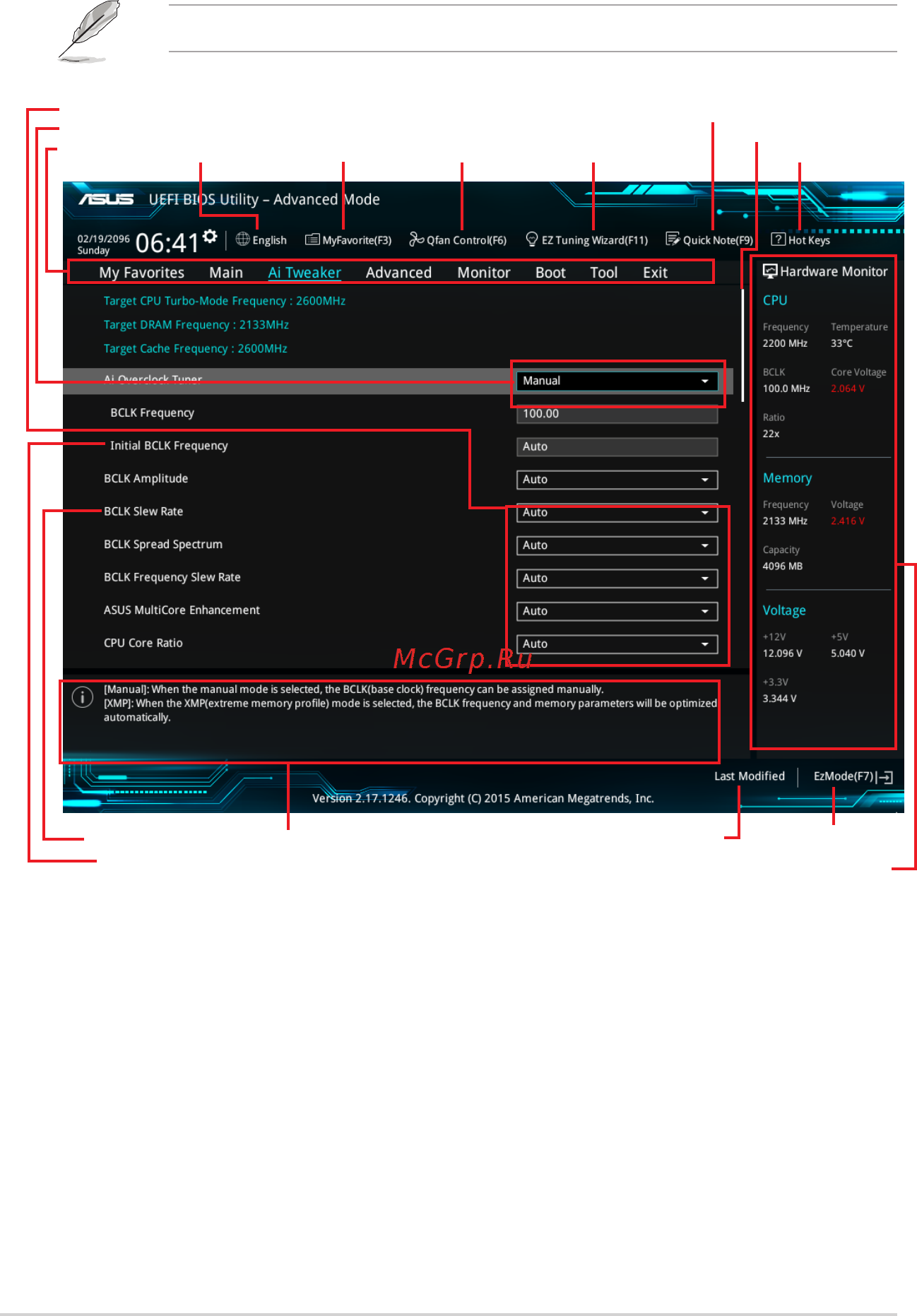

2.2.2 Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to congure
the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To switch from EZ Mode to Advanced Mode, click Advanced Mode or press <F7> hotkey.
Menu items
General help
Sub-menu item
Menu bar
Last modified settings
Go back to EZ Mode
Displays the CPU temperature,
CPU, and memory voltage output
Language
Hot Keys
Qfan Control(F6)
MyFavorite(F3)
Quick Note (F9)
EZ Tuning Wizard(F11)
Scroll bar
Pop-up Menu
Configuration fields
