Asus P9X79 [39/156] Chapter 2

ASUS P9X79 2-21

Chapter 2

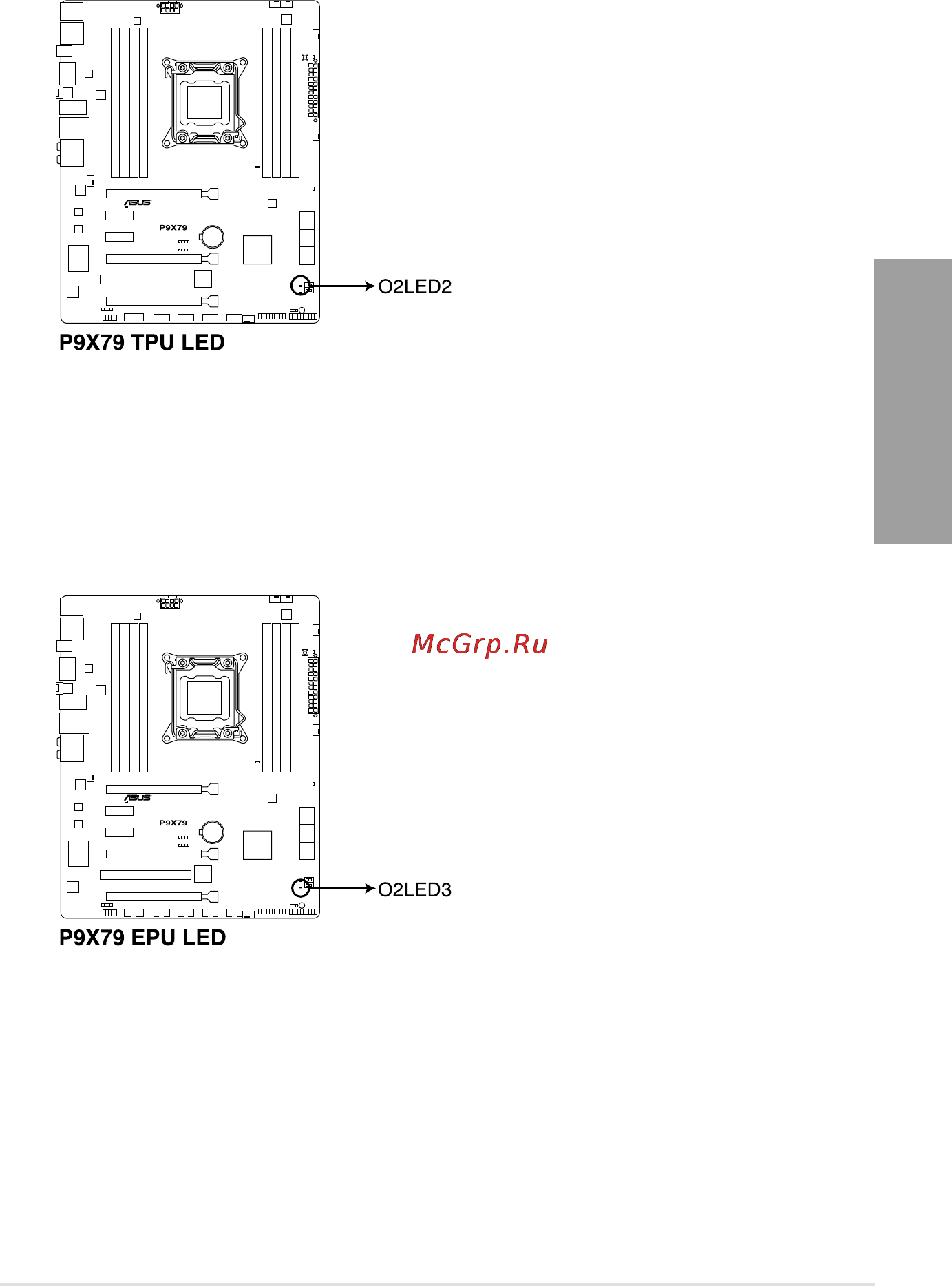

3. TPU LED

The TPU LED lights when the TPU switch is turned to

Enable

4. EPU LED

The EPU LED lights when the EPU switch is turned to

Enable
