IDENTIFYING EXTERNAL COMPONENTS
This chapter describes the front panel, rear panel, and LED indicators
of the Switch.
Front Panel
The figure below shows the front panels of the Switch.

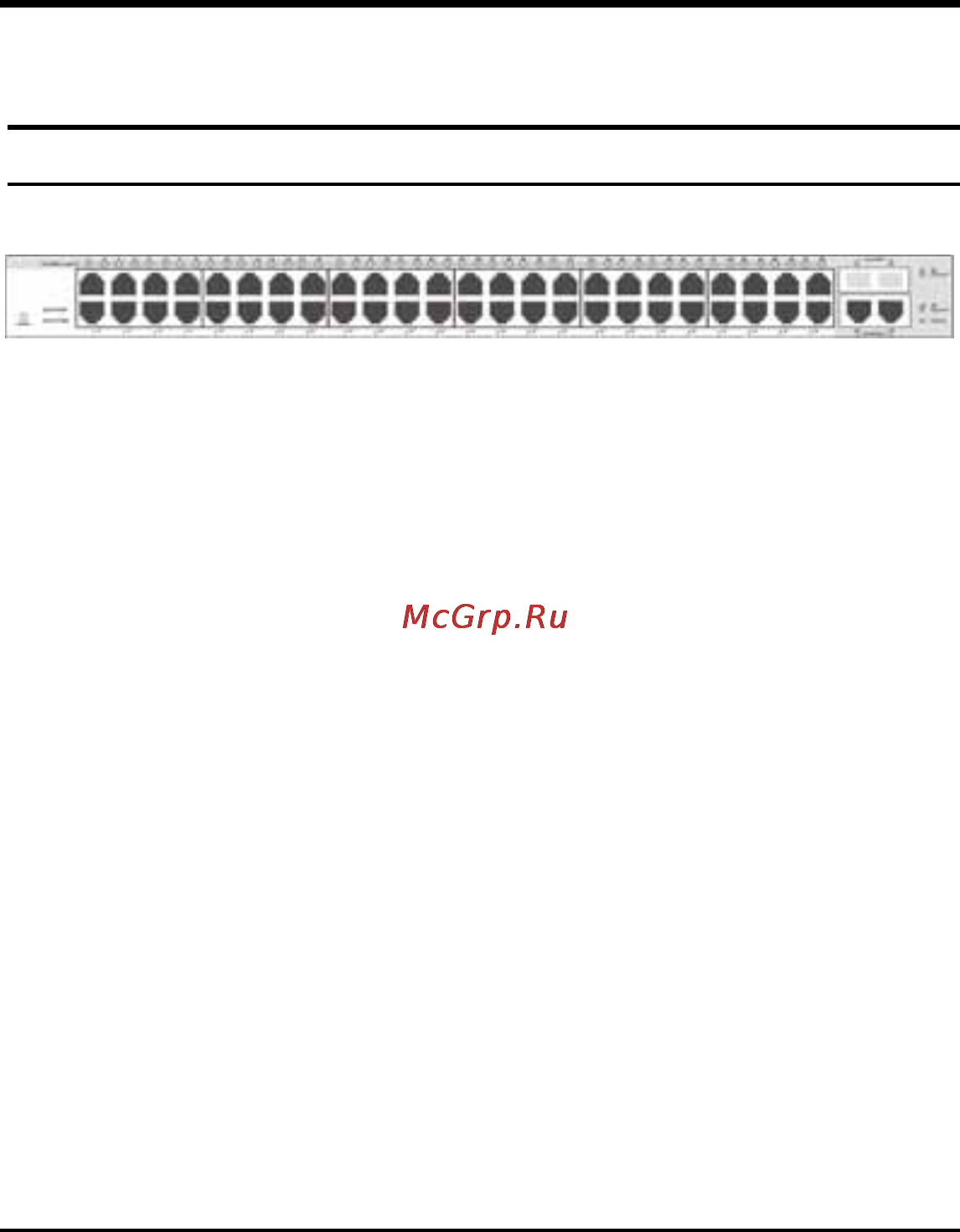

Figure 3. Front panel of 48+4G-port Gigabit Ethernet Switch
LED Indicator:
Comprehensive LED indicators display the status of the switch and
the network (see the LED Indicators chapter below).
Fast Ethernet Ports (Port 1~48):
These ports support network speeds of either 10Mbps or 100Mbps,
and can operate in half- and full- duplex transfer modes. These ports
also supports automatic MDI/MDIX crossover detection function
gives true “plug and play” capability, just need to plug-in the network
cable to the hub directly and don’t care if the end node is NIC
(Network Interface Card) or switch and hub.
Gigabit Ethernet Ports (Port 49~50):
The Switch is equipped with two Gigabit twisted pair ports, supported
auto negotiable 10/100/1000Mbps and auto MDI/MDIX crossover
detection function. These two ports can operate in half-duplex mode
for 10/100Mbps and full- duplex mode for 10/100/1000Mbps.
13
