Trendnet TEG-2248WS [33/46] Trunk setting

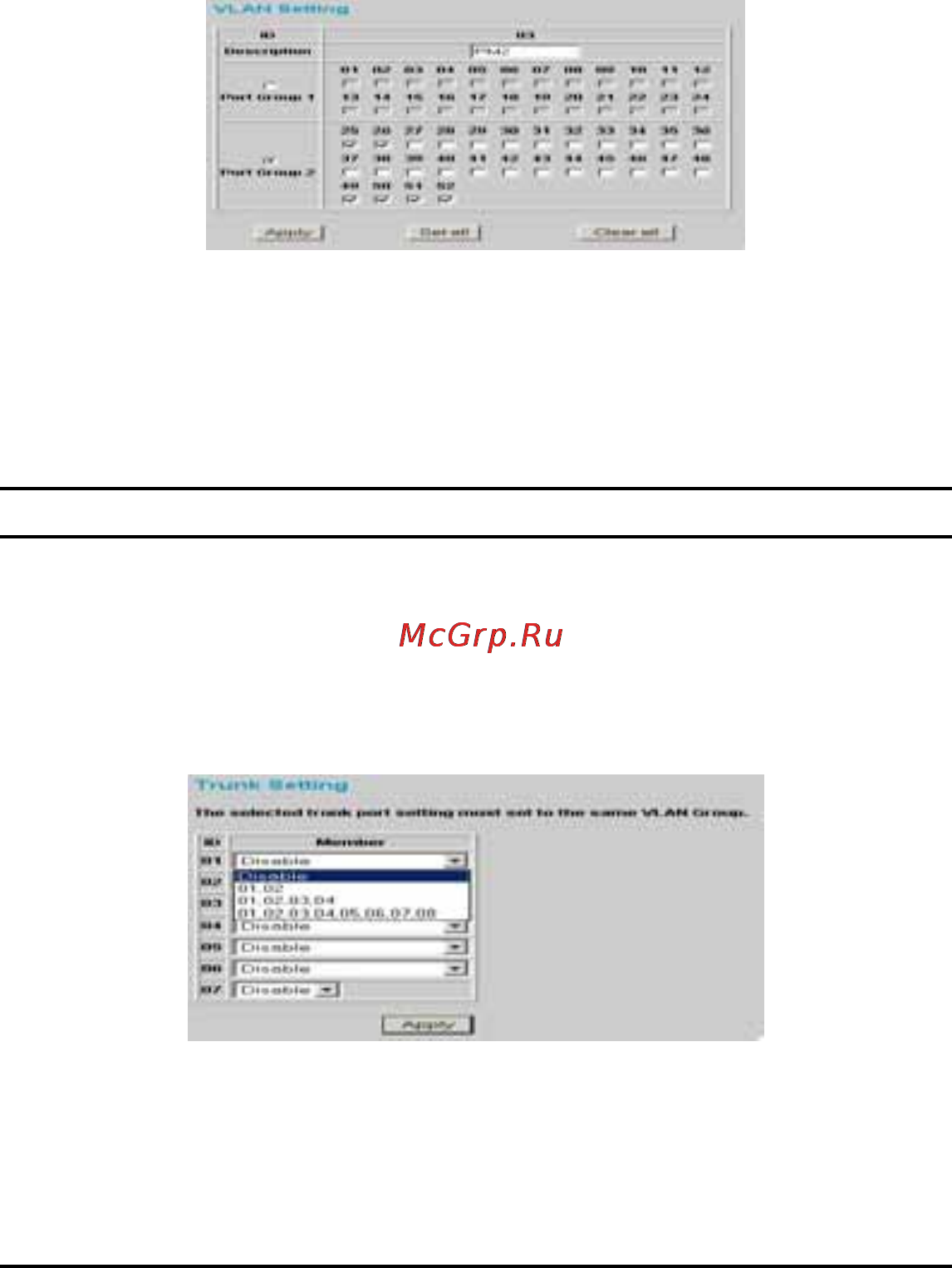

Figure 21. VLAN Group Change

Note 1: group 1 and Group 2 can not be managed at the same time

Note 2:When add a new Vlan, the members of default Vlan 1 are removed automatically.

Therefore, packets can only transmit among the member ports of new Vlan.

Packets can not fordward among the ports which are not included in the new

vlan.

Trunk Setting

The Trunk function enables to cascade two devices with a double

times bandwidth (up to 4000Mbps in full duplex mode).

There are seven groups for trunk setting, each group has fixed setting

to choose, Group 1~Group 6 for 10/100Mbps setting, Group 7 for

10/100/1000Mbps setting (only port 49 and port 50)

Figure 22. Trunk Settings

Be sure that the selected trunk setting port must connect to the device

with a same VLAN group.
