Trendnet TEG-2248WS [37/46] Set password
![Trendnet TEG-2248WS [37/46] Set password](/views2/1016658/page37/bg25.png)
Link Up/Link Down: a trap when there is linking status happens in
fiber port.
Abnormal* Receive Error: a trap when there are receive data
error in fiber port.
Abnormal* Transmit Error: a trap when there are transmit data
error in fiber port.
Copper Port Events: Monitoring the copper port status.
Abnormal* Receive Error: a trap when there are receive data
error in copper port.
Abnormal* Transmit Error: a trap when there are transmit data
error in copper port.
Abnormal*: 50 error packet count within 10 seconds.
Set Password
Password is the invaluable tool for the manager to secure Web
Management Switch, use this function to change the password.
If you forget the password, press the “Reset” button in the rear panel
of the Switch, the current setting includes VLAN, Port Setting… etc.
will be lost and the Switch will restore to the default setting.

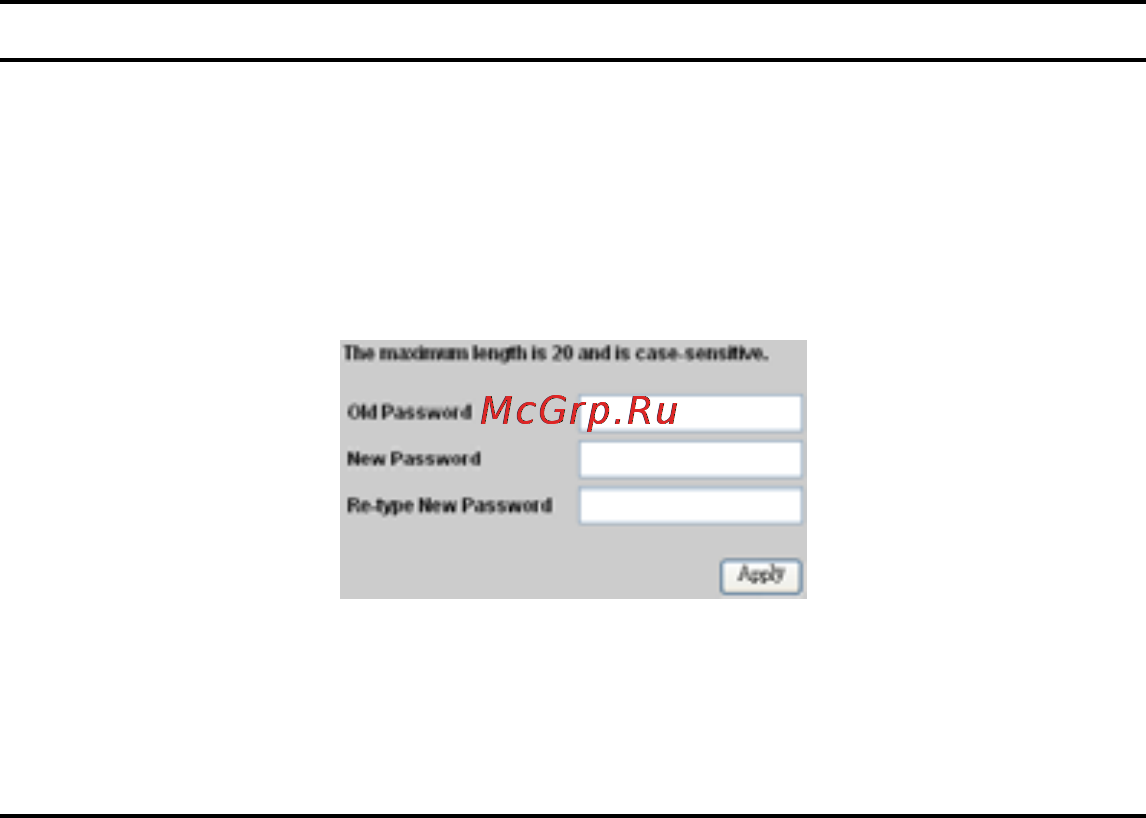

Figure 27. Set Password
36
