BIOS Setup
- 43 -

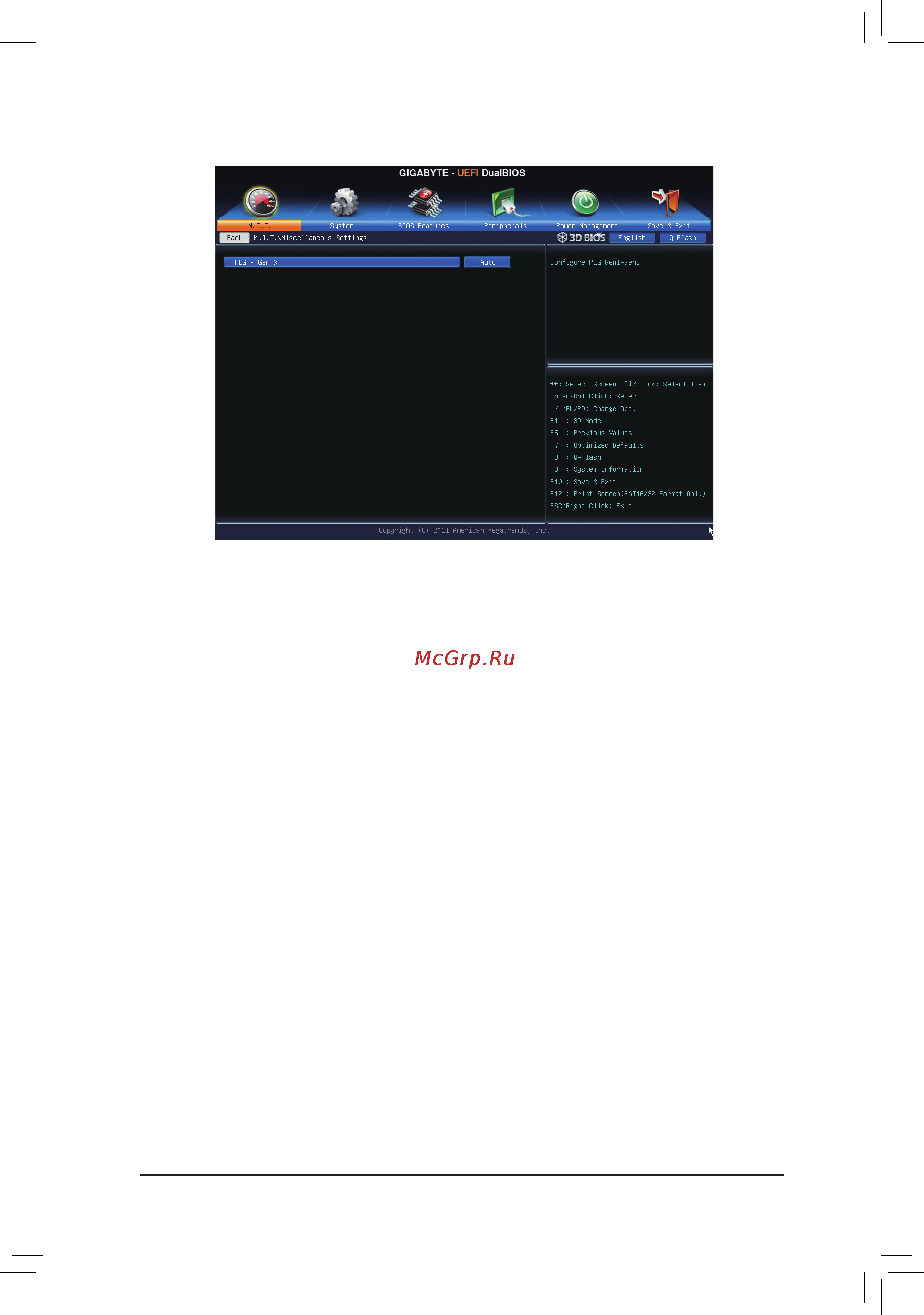

` Miscellaneous Settings
& PEG - Gen X
Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation
modeissubjecttothehardwarespecicationofeachslot.Forexample,thePCIExpressx1slotscan
support up to Gen 2 mode only. AutoletstheBIOSautomaticallycongurethissetting.(Default:Auto)
