Gigabyte GA-Z77-D3H [40/104] Advanced voltage settings
![Gigabyte GA-Z77-D3H [40/104] Advanced voltage settings](/views2/1168042/page40/bg28.png)

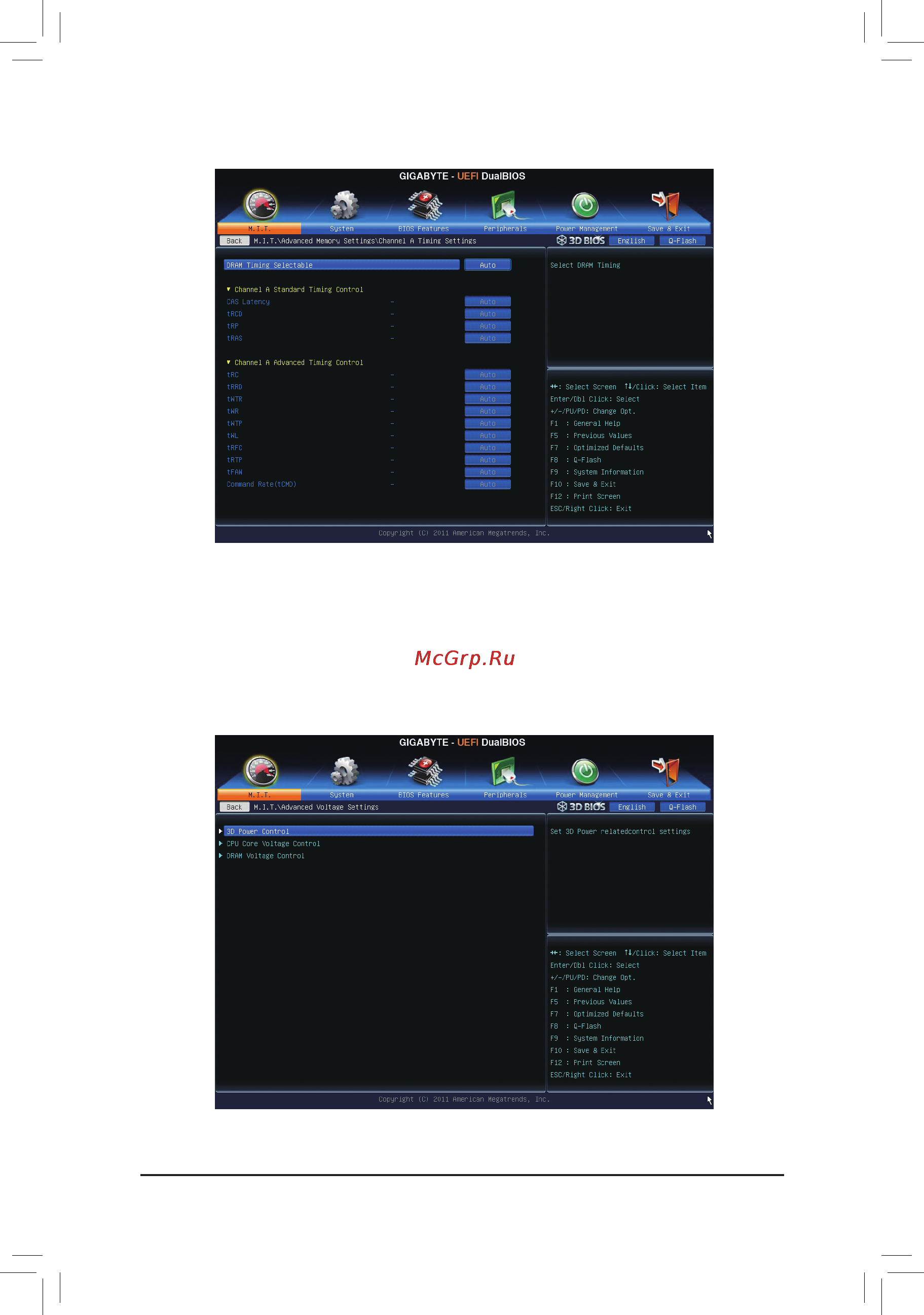

BIOS Setup - 40 -
This sub-menu provides memory timing settings for each channel of memory. The respective timing setting
screens are congurable only when DRAM Timing Selectable is set to Quick or Expert. Note: Your system
may become unstable or fail to boot after you make changes on the memory timings. If this occurs, please
reset the board to default values by loading optimized defaults or clearing the CMOS values.
Channel A/B Timing Settings `
Advanced Voltage Settings `
