BIOS Setup - 48 -

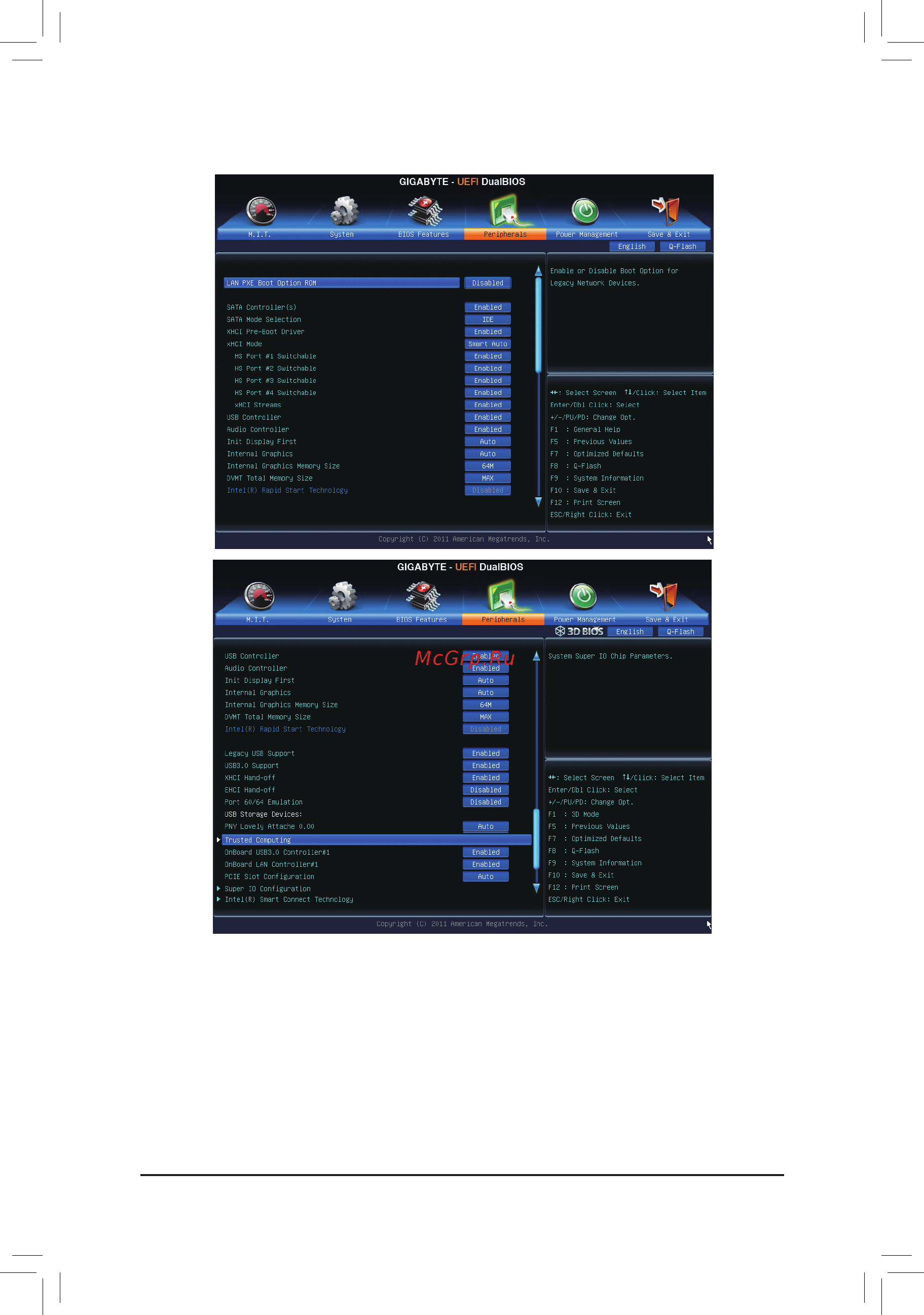

2-6 Peripherals
LAN PXE Boot Option ROM &
Allows you to decide whether to activate the boot ROM integrated with the onboard LAN chip. (Default:
Disabled)
SATA Controller(s) &
Enables or disables the integrated SATA controllers. (Default: Enabled)
