Appendix - 90 -
(Note) Enter the SPDIF OUT screen to congure further settings if you use the S/PDIF Out connector(s) on
the back panel for digital audio output or enter the SPDIF HDMI screen if you use the internal S/PDIF
Out connector (SPDIF_O) for digital audio output.

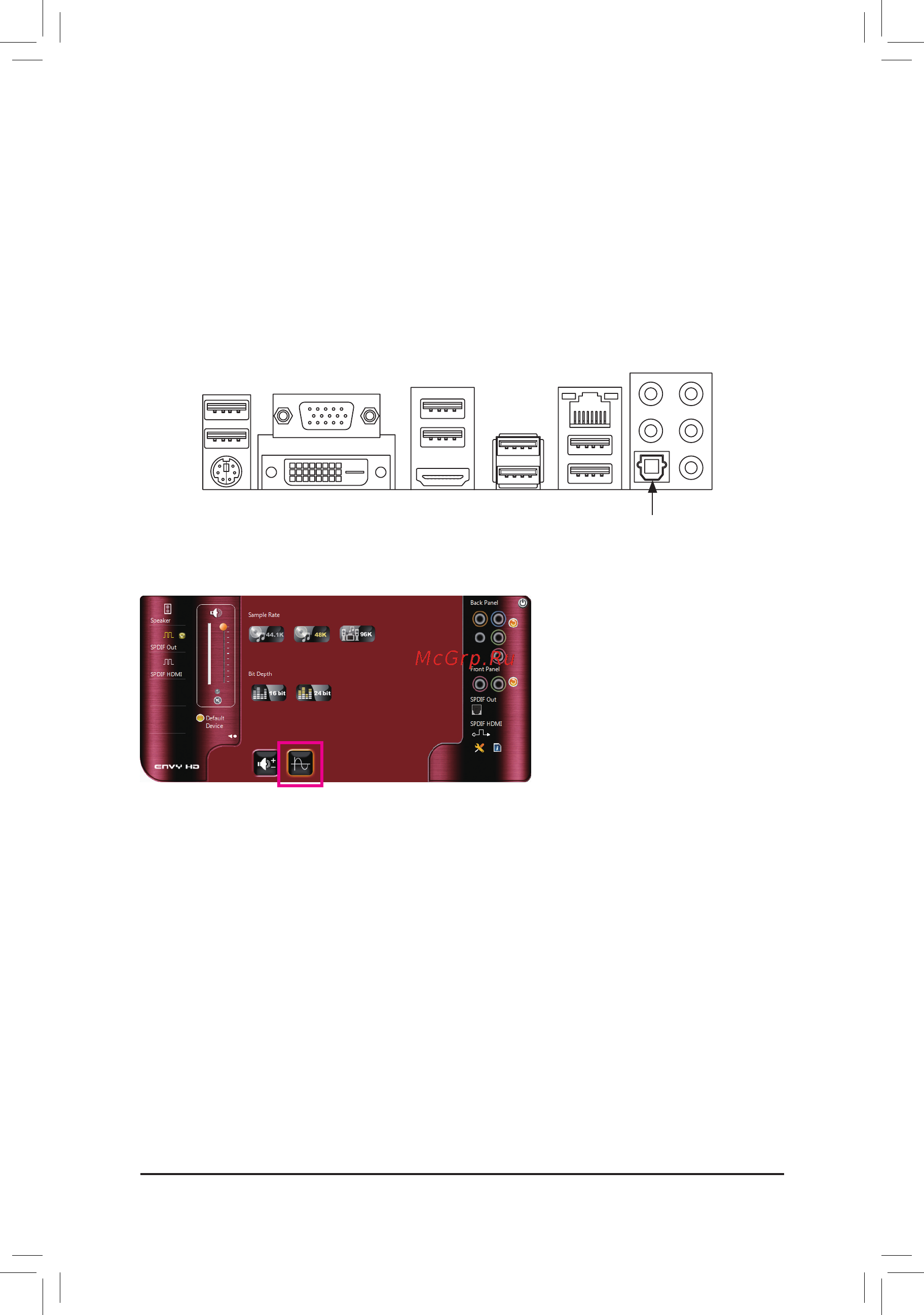

5-2-2 Conguring S/PDIF Out
The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio
quality.
1. Connecting a S/PDIF Out Cable:
Connect a S/PDIF optical cable to the corresponding S/PDIF out connector as shown below and an external
decoder for transmitting the S/PDIF digital audio signals.
2. Conguring S/PDIF Out:
On the SPDIF OUT screen
(Note)
, click the Default Format tab and then select the sample rate and bit depth.
Click OK to complete.
Connects to a S/PDIF optical cable
