Gigabyte GA-B75-D3V [41/88] Legacy benchmark enhancement
![Gigabyte GA-B75-D3V [41/88] Legacy benchmark enhancement](/views2/1168043/page41/bg29.png)
- 41 -
BIOS Setup

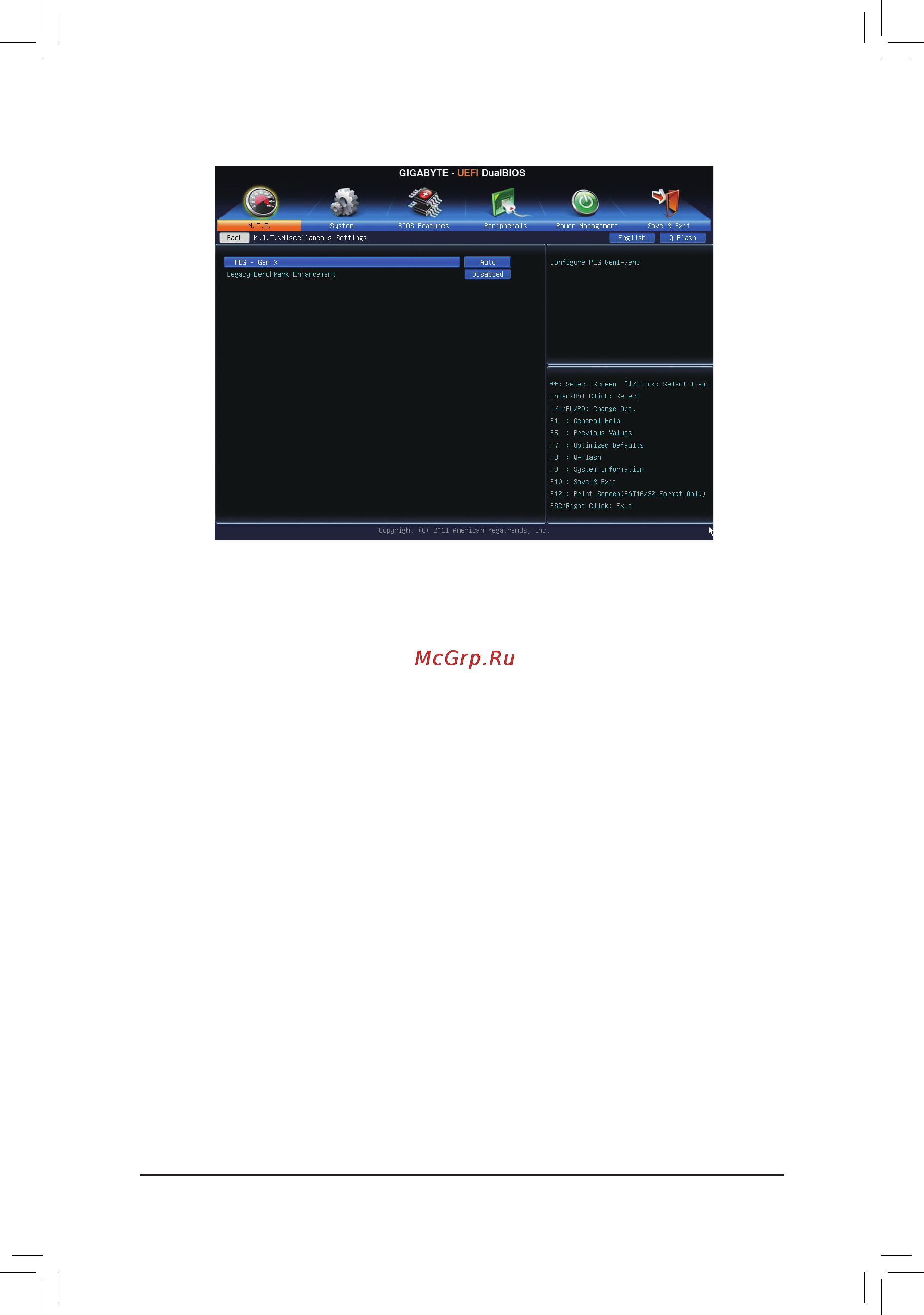

` Miscellaneous Settings
& PEG - Gen X
Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual operation
modeissubjecttothehardwarespecicationofeachslot.Forexample,thePCIExpressx1slotscan
support up to Gen 2 mode only. AutoletstheBIOSautomaticallycongurethissetting.(Default:Auto)
& Legacy BenchMark Enhancement
Allows you to determine whether to enhance some legacy benchmark performance. (Default: Disabled)
