- 23 -

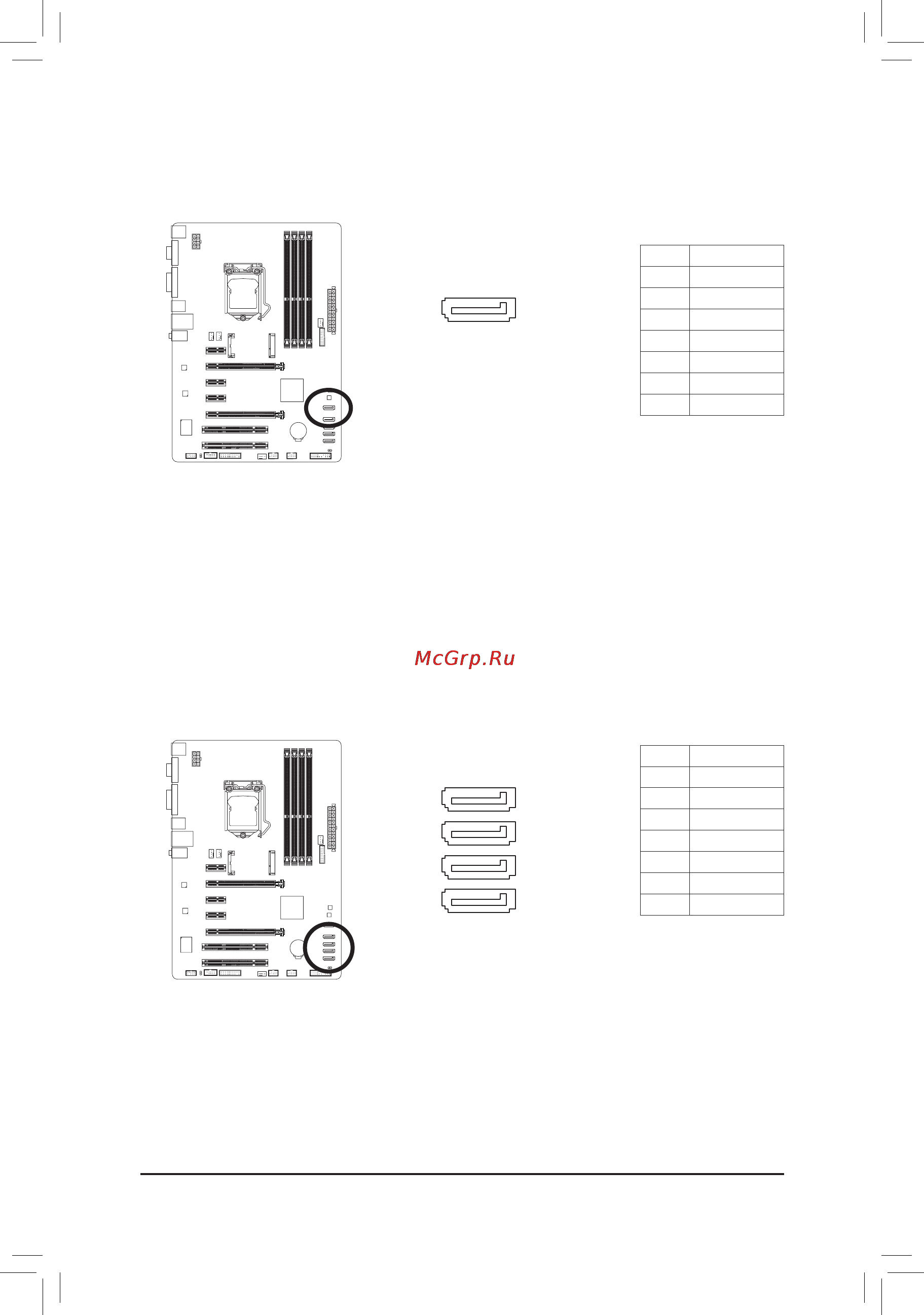

Hardware Installation
7) SATA2 1/2/3/4 (SATA 3Gb/s Connectors, Controlled by Intel B75 Chipset)
TheSATAconnectorsconformtoSATA3Gb/sstandardandarecompatiblewithSATA1.5Gb/sstandard.
Each SATA connector supports a single SATA device.
6) SATA3 0 (SATA 6Gb/s Connector, Controlled by Intel B75 Chipset)
TheSATAconnectorconformstoSATA6Gb/sstandardandiscompatiblewithSATA3Gb/sandSATA
1.5Gb/sstandard.EachSATAconnectorsupportsasingleSATAdevice.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
SATA2
1
2
3
4
SATA3 0
71
DEBUG
PORT
G.QBOFM
71
DEBUG
PORT
G.QBOFM
71
DEBUG
PORT
G.QBOFM
71
DEBUG
PORT
G.QBOFM
71
DEBUG
PORT
G.QBOFM
