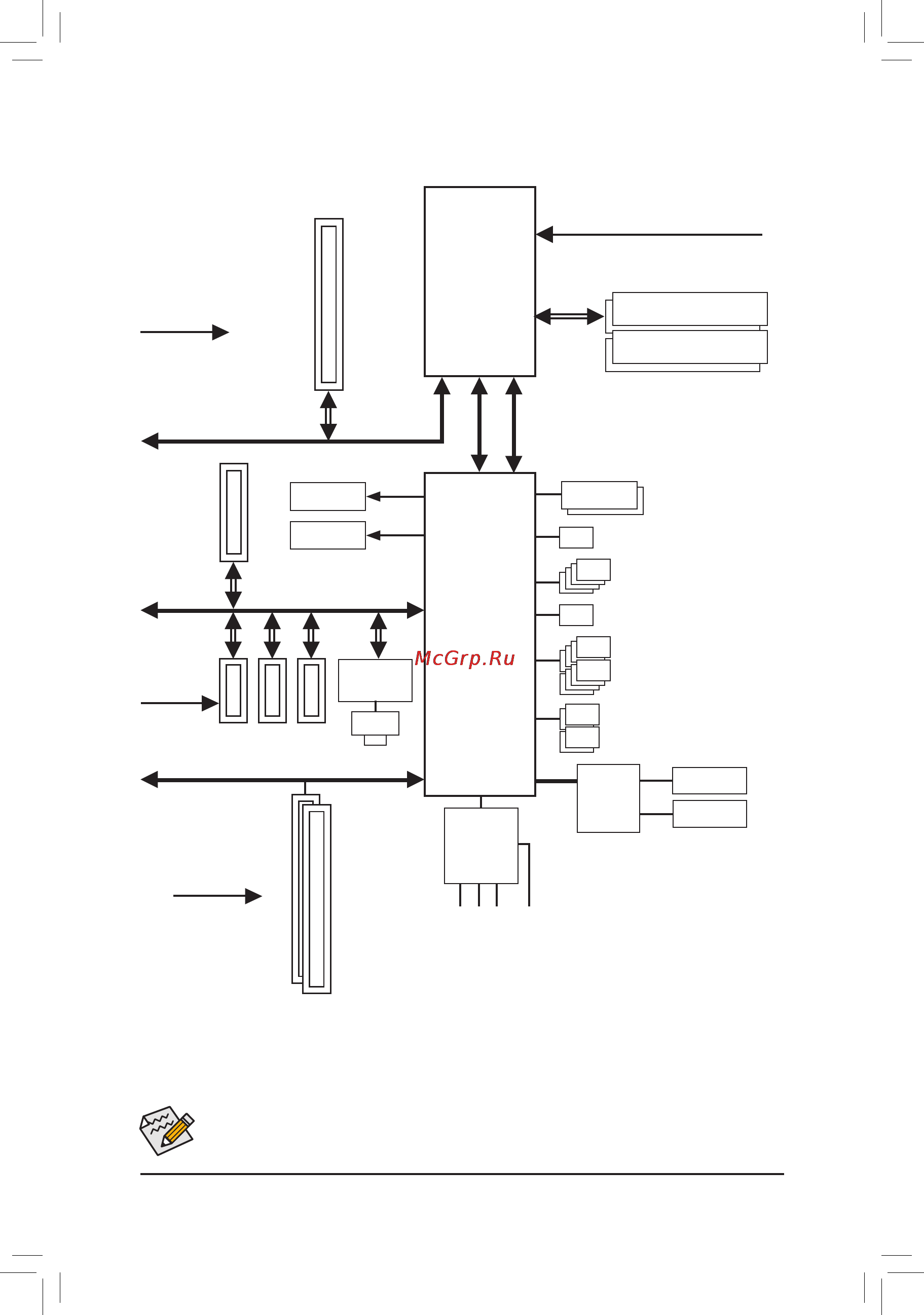

GA-B75-D3V Motherboard Block Diagram
x4
1 PCI Express x4
iTE
SuperI/O
PS/2KB/Mouse
LGA1155
CPU
Intel
®
B75
PCIe CLK
(100 MHz)
PCIe CLK
(100 MHz)
PCI Express Bus
CPUCLK+/-(100MHz)
1 PCI Express x16
Dual BIOS
COM
8USB2.0/1.1
4USB3.0/2.0
DDR31600/1333/1066MHz
PCI Express Bus
3 PCI Express x1
4SATA3Gb/s
1 mSATA
1SATA6Gb/s
D-Sub
DVI-D
DMI 2.0
FDI
x16
Dual Channel Memory
x1 x1 x1 x1
PCI CLK
(33 MHz)
2 PCI
PCI Bus
LAN
RJ45
Atheros
GbE LAN
LPC
Bus
Line Out (Front Speaker Out)
MIC(Center/Subwoofer
Speaker Out)
Line In (Rear Speaker Out)
S/PDIFOut
CODEC
