- 45 -
BIOS Setup

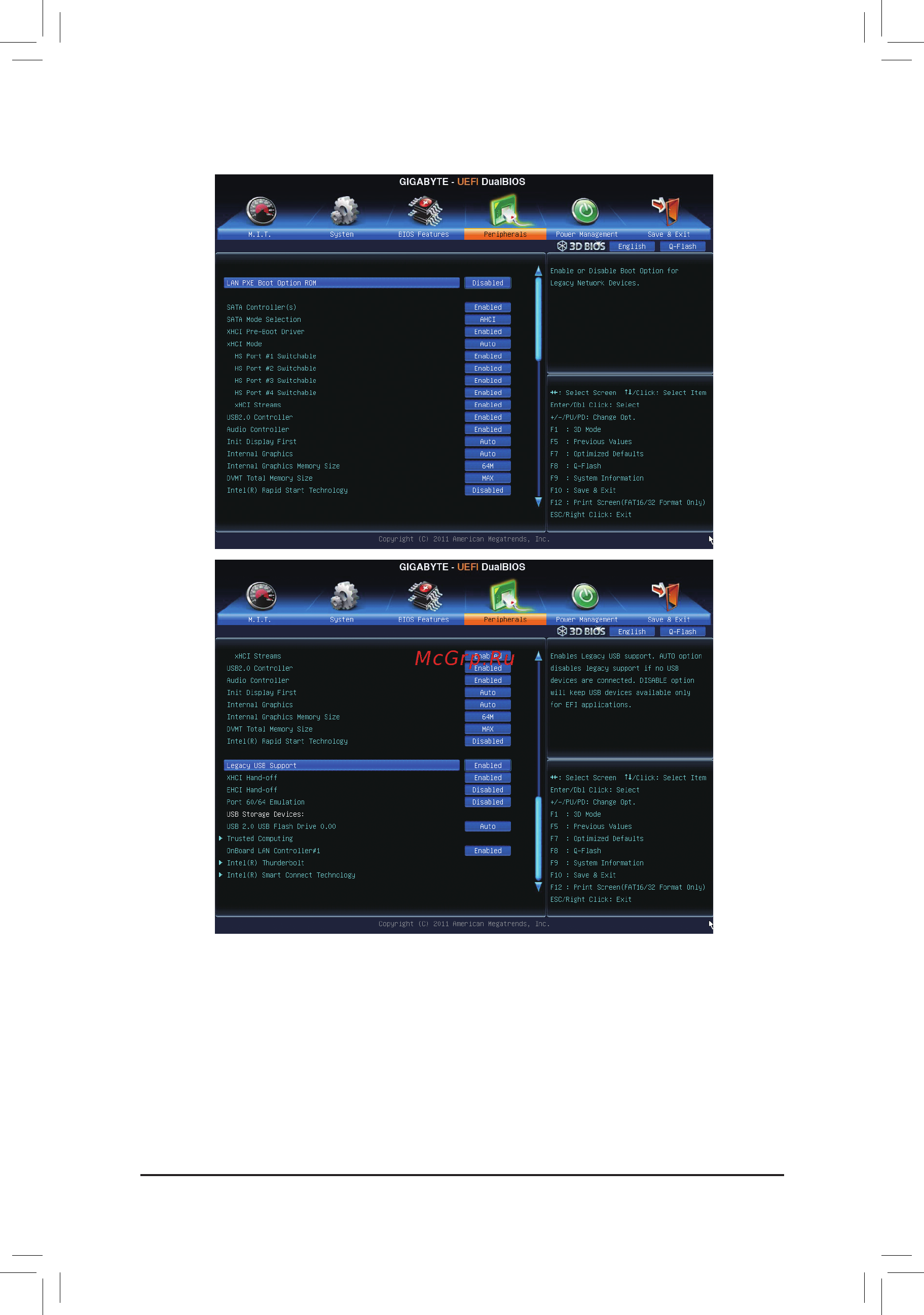

2-6 Peripherals
& LAN PXE Boot Option ROM
Allows you to decide whether to activate the boot ROM integrated with the onboard LAN chip. (Default:
Disabled)
& SATA Controller(s)
Enables or disables the integrated SATA controllers. (Default: Enabled)
& SATA Mode Selection
AllowsyoutodecidewhethertoconguretheSATAcontrollerintegratedintheChipsettoAHCImode.
IDE CongurestheSATAcontrollertoIDEmode.(Default)
