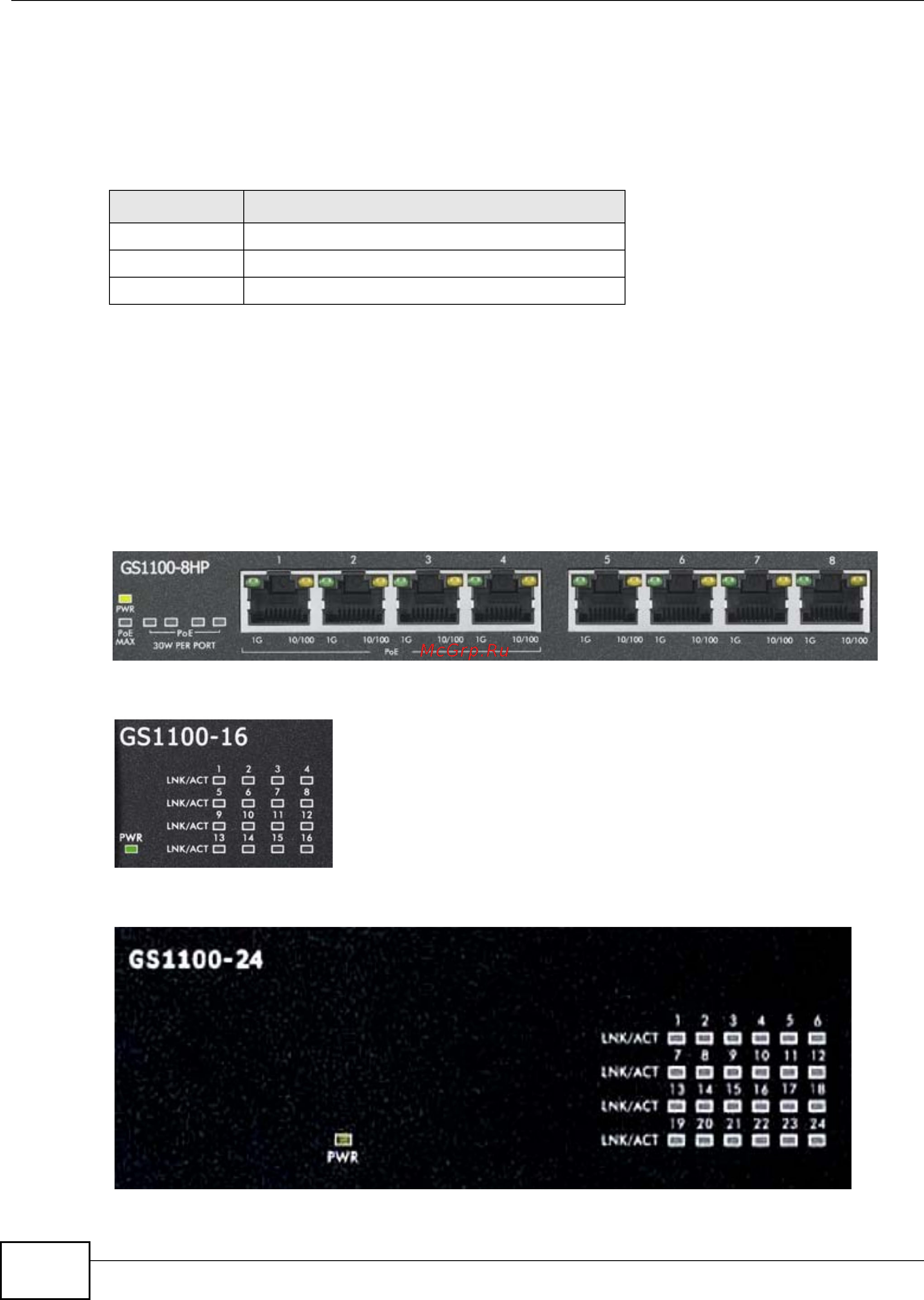

Chapter 2 Hardware Description and Connection
GS1100 Series User’s Guide
12
2.2.4 Front Panel Connections
You can use unshielded twisted pair (UTP) or shielded twisted-pair (STP) Ethernet cables for RJ-45
ports. The following table describes the types of network cable used for the different connection
speeds. .
You can use either crossover or straight-through cables for all the ports.
2.2.5 Front Panel LEDs
The LED Indicators give real-time information about the status of the Switch. The following table
provides descriptions of the LEDs.
Figure 11 Front Panel LEDs
Table 2 Network Cable Types
SPEED NETWORK CABLE TYPE
10 Mbps Category 3, 4 or 5 UTP/STP
100 Mbps Category 5 UTP/STP
1000 Mbps Category 5e, 6 UTP/STP
GS1100-8HP
GS1100-16
GS1100-24
