Chapter 1 Getting to Know Your Switch

GS1100 Series User’s Guide

In the figure below, the IP camera and IP phone get their power directly from the Switch. Aside

from minimizing the need for cables and wires, PoE removes the hassle of trying to find a nearby

electric outlet to power up devices.

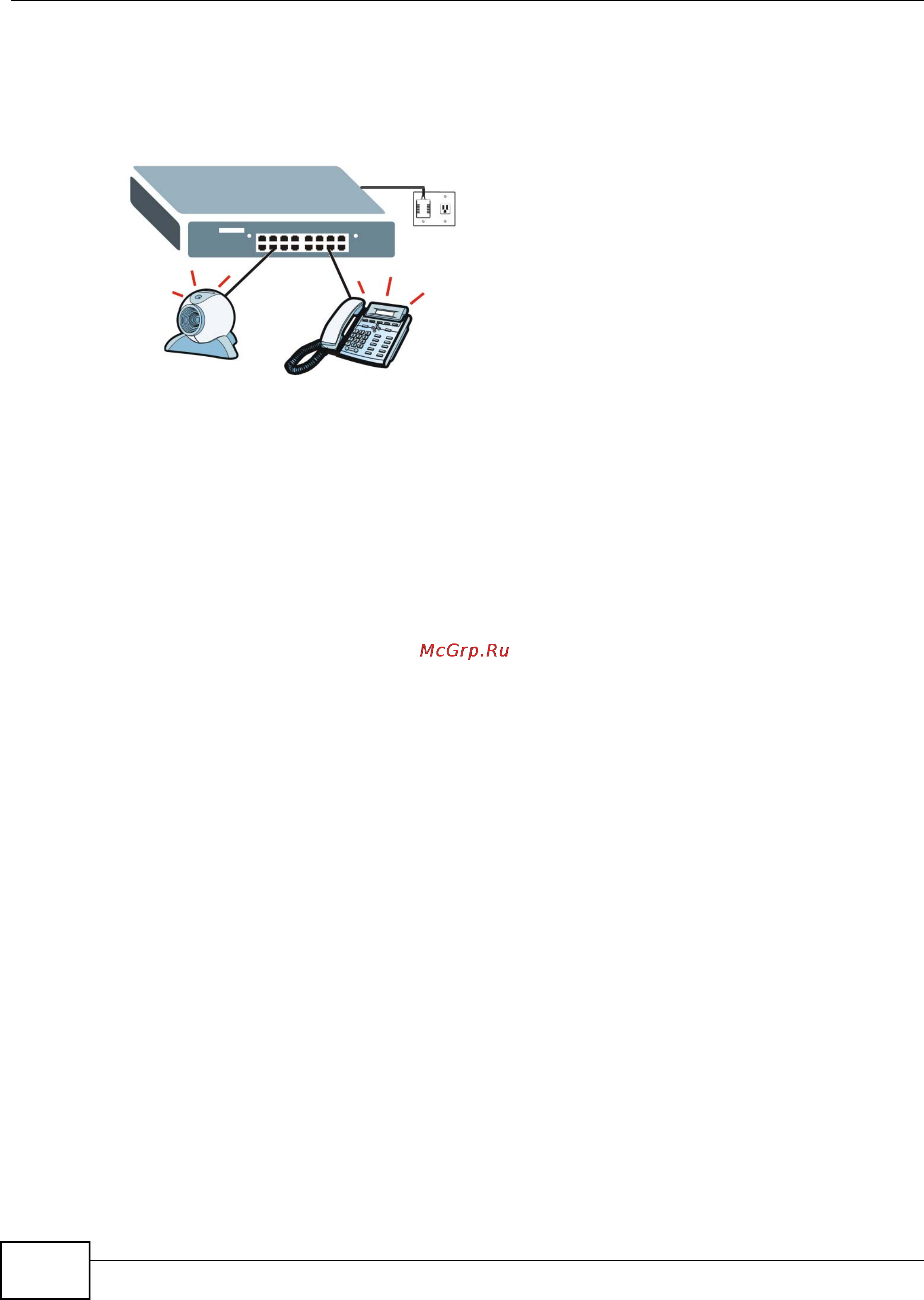

Figure 4 Powered Device Examples
