NWA5000 / WAC6000 Series User’s Guide
110
CHAPTER 10
WDS Profile
10.1 Overview
This chapter shows you how to configure WDS (Wireless Disbribution System) profiles for the NWA/
WAC to form a WDS with other APs.
10.1.1 What You Can Do in this Chapter
The WDS Profile screen (Section 10.2 on page 110) creates preset WDS configurations that can be
used by the NWA/WAC.
10.2 WDS Profile
This screen allows you to manage and create WDS profiles that can be used by the APs. To access
this screen, click Configuration > Object > WDS Profile.

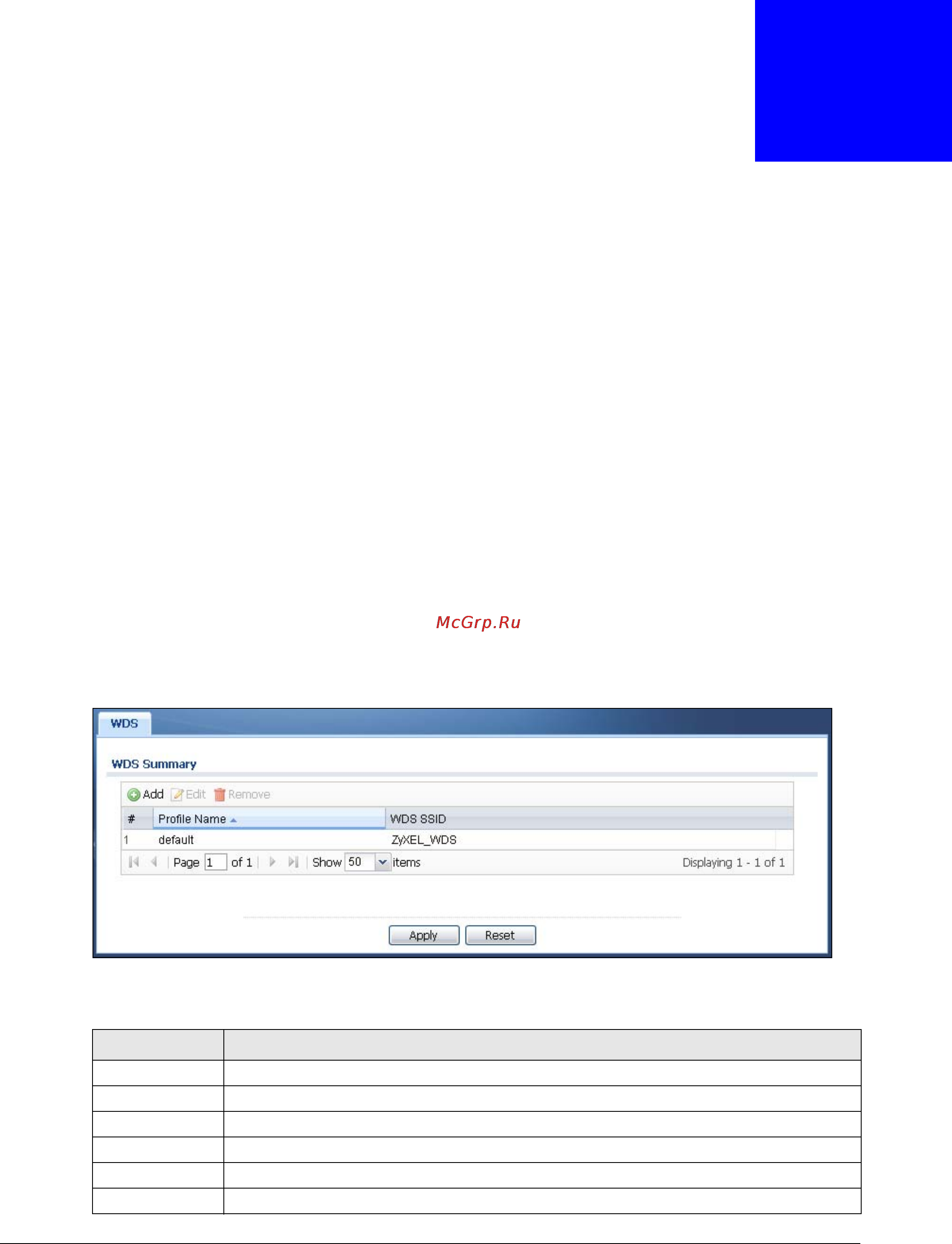

Figure 64 Configuration > Object > WDS Profile
The following table describes the labels in this screen.
Table 54 Configuration > Object > WDS Profile
LABEL DESCRIPTION
Add Click this to add a new profile.
Edit Click this to edit the selected profile.
Remove Click this to remove the selected profile.
# This field is a sequential value, and it is not associated with a specific profile.
Profile Name This field indicates the name assigned to the profile.
WDS SSID This field shows the SSID specified in this WDS profile.
