Chapter 12 System
NWA5000 / WAC6000 Series User’s Guide
153

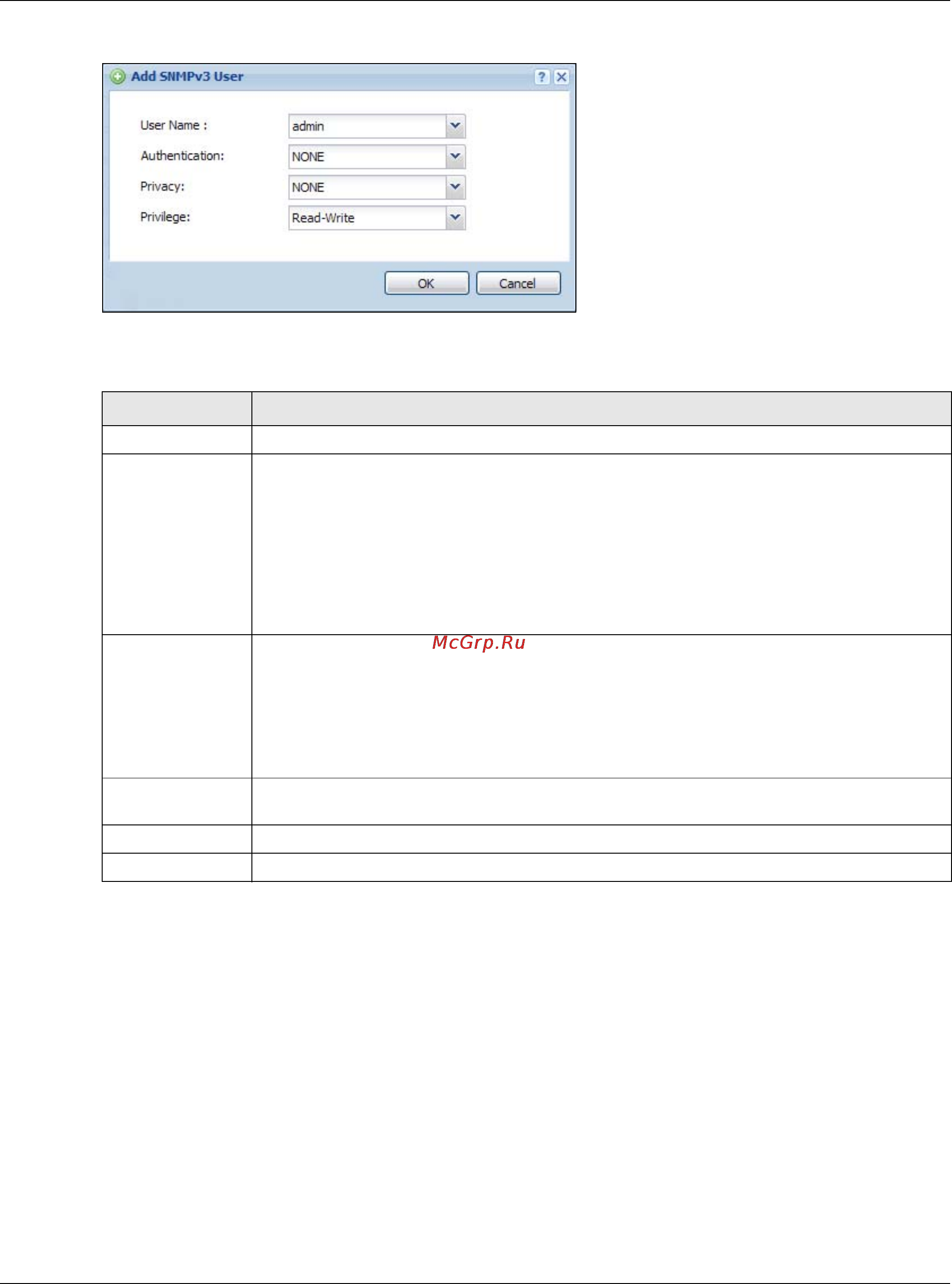

Figure 93 Configuration > System > SNMP > Add
The following table describes the labels in this screen.
Table 72 Configuration > System > SNMP
LABEL DESCRIPTION
User Name Select the user name of the user account for which this SNMPv3 user profile is configured.
Authentication Select the type of authentication the SNMPv3 user must use to connect to the NWA/WAC
using this SNMPv3 user profile.
Select NONE to not authenticate the SNMPv3 user.
Select MD5 to require the SNMPv3 user’s password be encrypted by MD5 for
authentication.
Select SHA to require the SNMPv3 user’s password be encrypted by SHA for
authentication.
Privacy Select the type of encryption the SNMPv3 user must use to connect to the NWA/WAC
using this SNMPv3 user profile.
Select NONE to not encrypt the SNMPv3 communications.
Select DES to use DES to encrypt the SNMPv3 communications.
Select AES to use AES to encrypt the SNMPv3 communications.
Privilege Select whether the SNMPv3 user can have read-only or read and write access to the NWA/
WAC using this SNMPv3 user profile.
OK Click OK to save your changes back to the NWA/WAC.
Cancel Click Cancel to exit this screen without saving your changes.
