Chapter 12 System
NWA5000 / WAC6000 Series User’s Guide
148
Figure 88 SSH Example 2: Log in
3 The CLI screen displays next.
12.6 Telnet
You can use Telnet to access the NWA/WAC’s command line interface. Click Configuration >
System > TELNET to configure your NWA/WAC for remote Telnet access. Use this screen to enable
or disable Telnet and set the server port number.

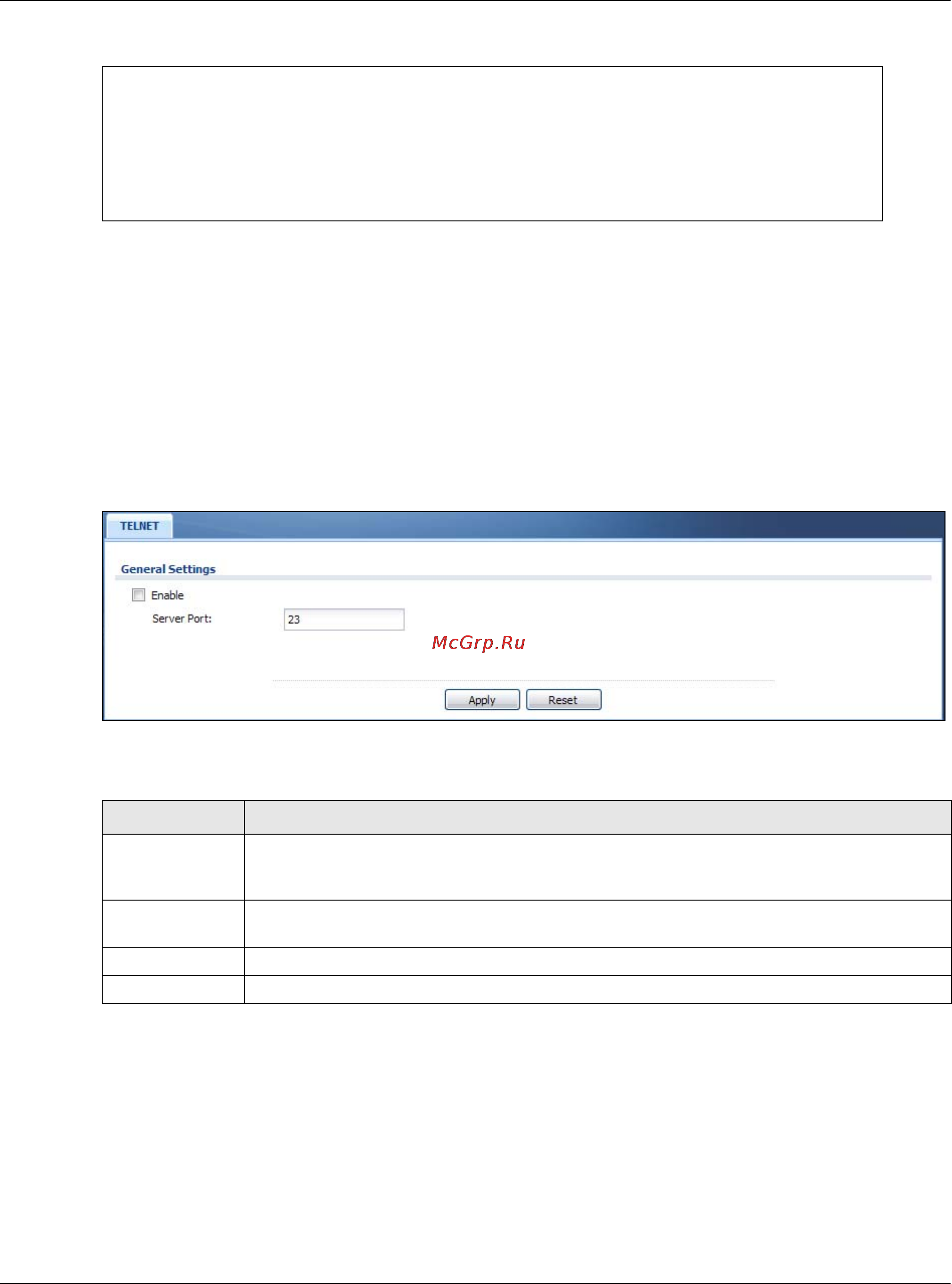

Figure 89 Configuration > System > TELNET
The following table describes the labels in this screen.
12.7 FTP
You can upload and download the NWA/WAC’s firmware and configuration files using FTP. To use
this feature, your computer must have an FTP client. See Chapter 14 on page 167 for more
information about firmware and configuration files.
To change your NWA/WAC’s FTP settings, click Configuration > System > FTP tab. The screen
appears as shown. Use this screen to specify FTP settings.
$ ssh –1 192.168.1.2
The authenticity of host '192.168.1.2 (192.168.1.2)' can't be established.
RSA1 key fingerprint is 21:6c:07:25:7e:f4:75:80:ec:af:bd:d4:3d:80:53:d1.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.1.2' (RSA1) to the list of known hosts.
Administrator@192.168.1.2's password:
Table 68 Configuration > System > TELNET
LABEL DESCRIPTION
Enable Select the check box to allow or disallow the computer with the IP address that matches
the IP address(es) in the Service Control table to access the NWA/WAC CLI using this
service.
Server Port You may change the server port number for a service if needed, however you must use the
same port number in order to use that service for remote management.
Apply Click Apply to save your changes back to the NWA/WAC.
Reset Click Reset to return the screen to its last-saved settings.
