8

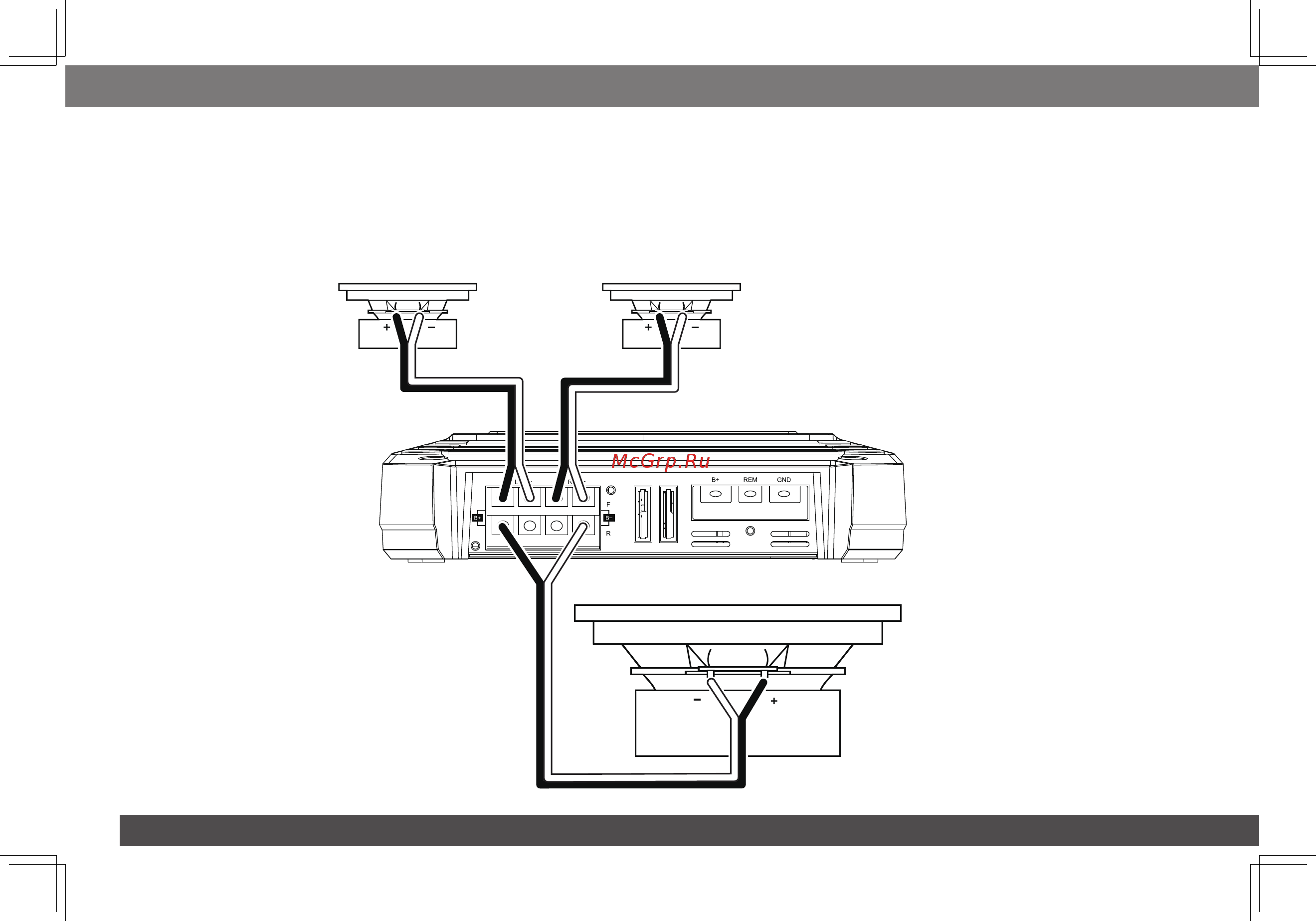

GX-A604 SPEAKER CONNECTIONS: 3-CHANNEL OPERATION

Minimum speaker impedance: 2 ohms each (left & right speakers); 4 ohms (subwoofer)

•ConnecttheleftandrightspeakerstotheFLandFR(+)and(–)terminals

•ConnectthesubwoofertotheRL(+)andRR(–)terminals.(Therear-channelBassBoostcontrolmakestherearchannelspreferableforsubwoofer

connection. See Set The Bass Boost, on page 23.) NOTE: You can connect two 2-ohm subwoofers in series to maintain the required 4-ohm

mimimum impedance for the subwoofer channel.

Speaker

Fuses 20A
