LSI Corporation
- 42 -
6Gb/s MegaRAID SAS RAID Controllers User Guide
August 2013
MegaRAID SAS RAID Controller Characteristics
6Gb/s MegaRAID SAS RAID Controller Family
3.1.4.2 MegaRAID SAS 9265CV-8i RAID Controller – Board Layout and Jumper/Connector Information
This subsection provides the board layout, and the connector and jumper information for the MegaRAID
SAS 9265CV-8i RAID controller.
The following figure shows the location of the jumpers and the connectors on the MegaRAID SAS 9265CV-8i RAID
controller. The jumpers are set at the factory, and you usually do not need to change them.

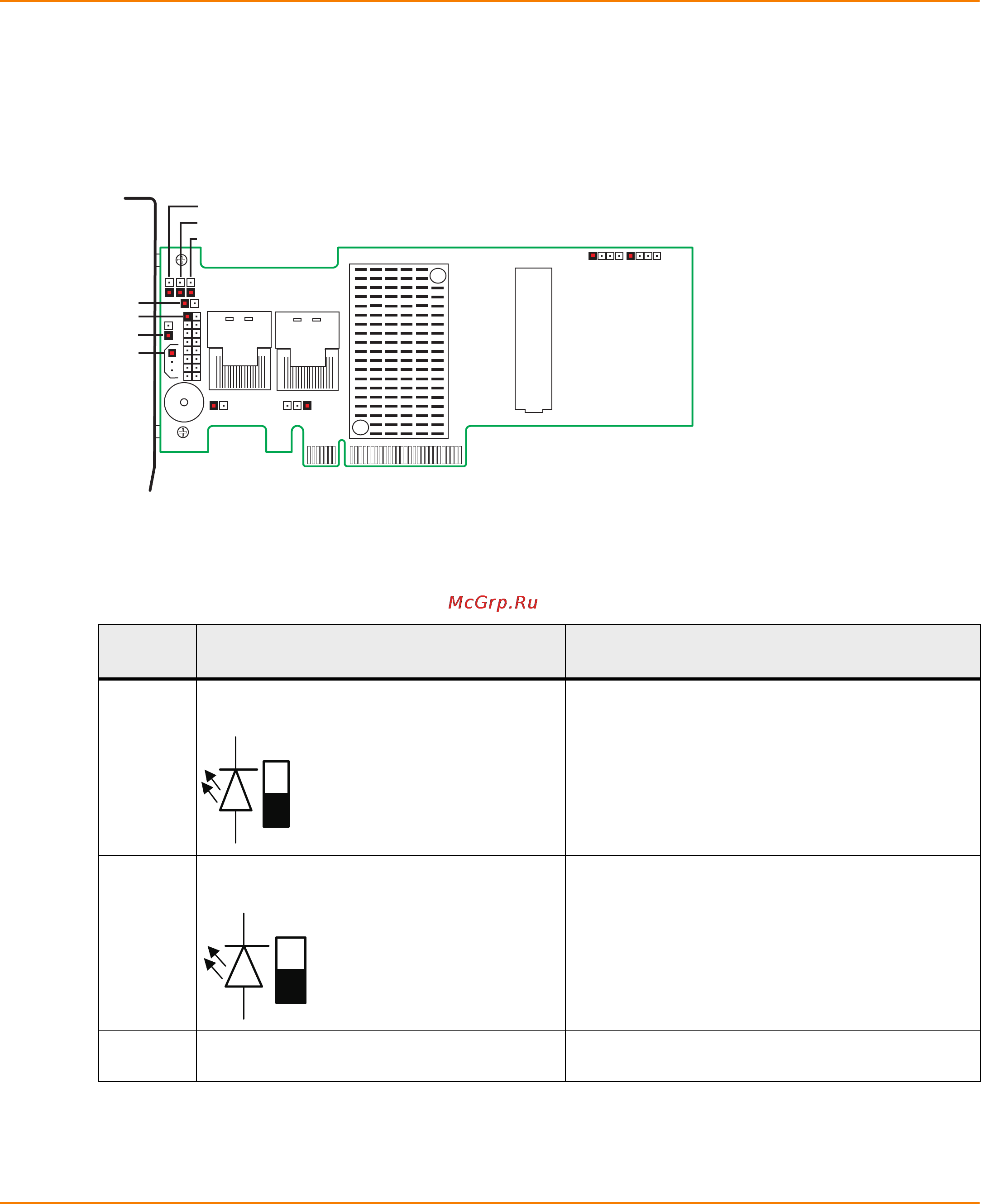

Figure 15 Card Layout for the MegaRAID SAS 9265CV-8i RAID Controller
NOTE Pin 1 on the headers and connectors is highlighted in red in this figure.
The following table describes the jumpers and the connectors on the MegaRAID SAS 9265CV-8i RAID controller.
Table 9 MegaRAID SAS 9265CV-8i RAID Controller – Jumpers and Connectors
Jumper/
Connector
Type Description
J1A1 Global Drive Fault LED header 2-pin connector
Connects to an LED that indicates whether a drive is in a
fault condition.
J1A2 Write-Pending LED header 2-pin connector
Connects to an LED that indicates when the data in the
cache has yet to be written to the storage devices. Used
when the write-back feature is enabled.
J1A3 LSI Test header 2-pin connector
Reserved for internal use.
3_00792-00
J2B1 J2B2
J1A1
J1A2
J1A3
J1A4
J1A5
J1A7
J2B4
J5B1
J5A1
J6A1
J1B1
J2B3
J1A8
J1A1
ak
+ve
-ve
J1A2
ak
+ve
-ve
