LSI Corporation
- 61 -
6Gb/s MegaRAID SAS RAID Controllers User Guide
August 2013
MegaRAID SAS RAID Controller Characteristics
6Gb/s MegaRAID SAS RAID Controller Family
3.1.9.2 MegaRAID SAS 9285CV-8e RAID Controller – Board Layout and Jumper/Connector Information
This subsection provides the board layout and the connector information for the MegaRAID SAS 9285CV-8e RAID
controller. The following figure shows the location of the jumpers and the connectors on the MegaRAID
SAS 9285CV-8e RAID controller. The jumpers are set at the factory, and you usually do not need to change them.

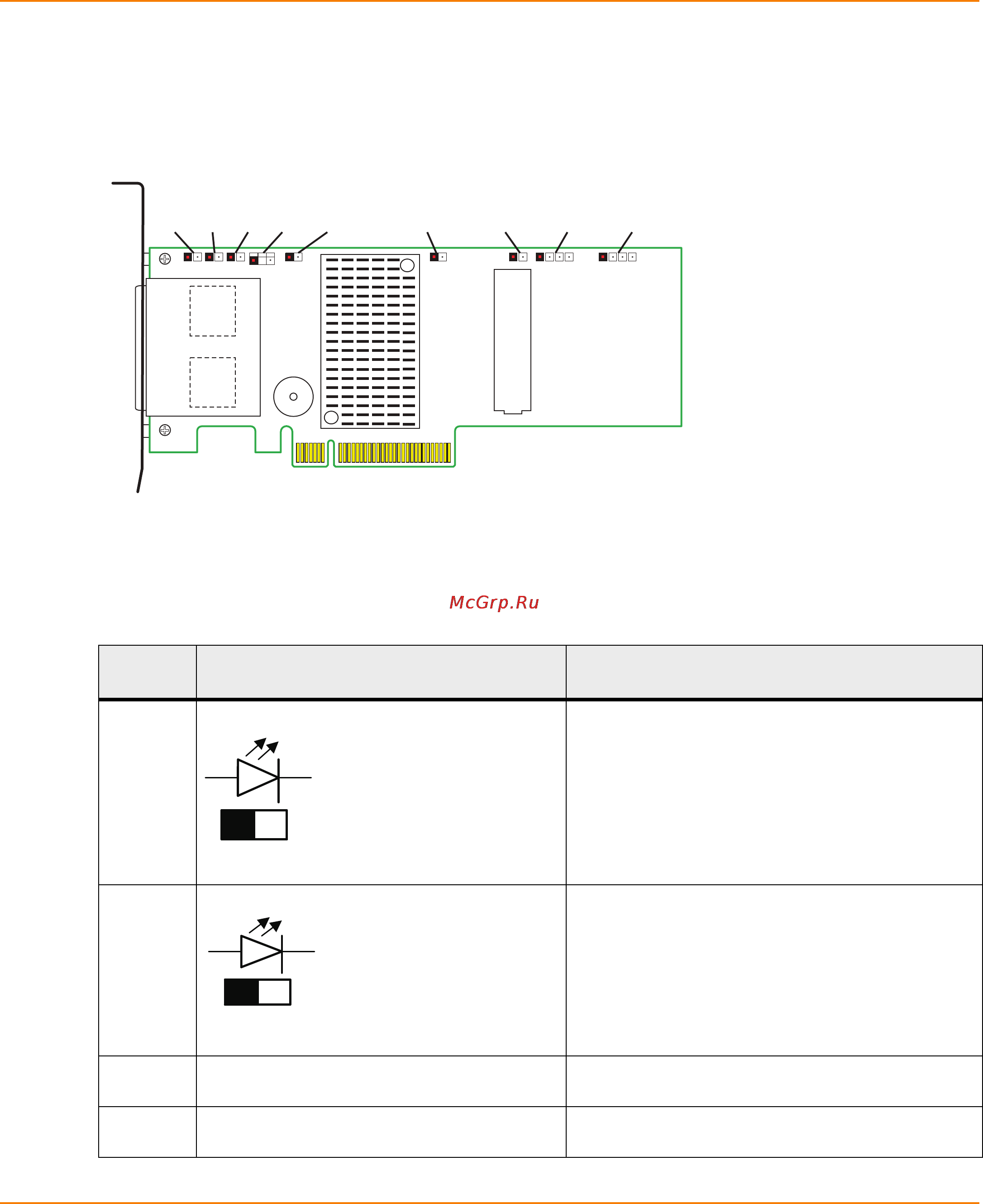

Figure 23 Card Layout for the MegaRAID SAS 9285CV-8e RAID Controller
NOTE Pin 1 on the headers and connectors is highlighted in red in this figure.
The following table describes the connectors on the MegaRAID SAS 9285CV-8e RAID controller.
Table 17 MegaRAID SAS 9285CV-8e RAID Controller – Connectors
Jumper/
Connector
Type Description
J1A1 Write-Pending LED header 2-pin connector
Connects to an LED that indicates when the data in the
cache has yet to be written to the storage devices. Used
when the write-back feature is enabled.
J1A3 Global Drive Fault LED header 2-pin connector
Connects to an LED that indicates whether a drive is in a
fault condition.
J1A4 x4 SAS Ports 4 to 7 External connector SFF-8088 x4 external mini SAS connector
Connects the controller by cable to SAS drives or SATA drives.
J1B1 x4 SAS Ports 0 to 3 External connector SFF-8088 x4 external mini SAS connector
Connects the controller by cable to SAS drives or SATA drives.
3_00922-00
J1A1
J1A3
J2A1
J2A2
J4A1 J4A2 J5A1 J6A1
J2A4
J2B1
J1A4
J1B1
J5B1
J1A1
ak
+ve -ve
J1A3
ak
+ve
-ve
