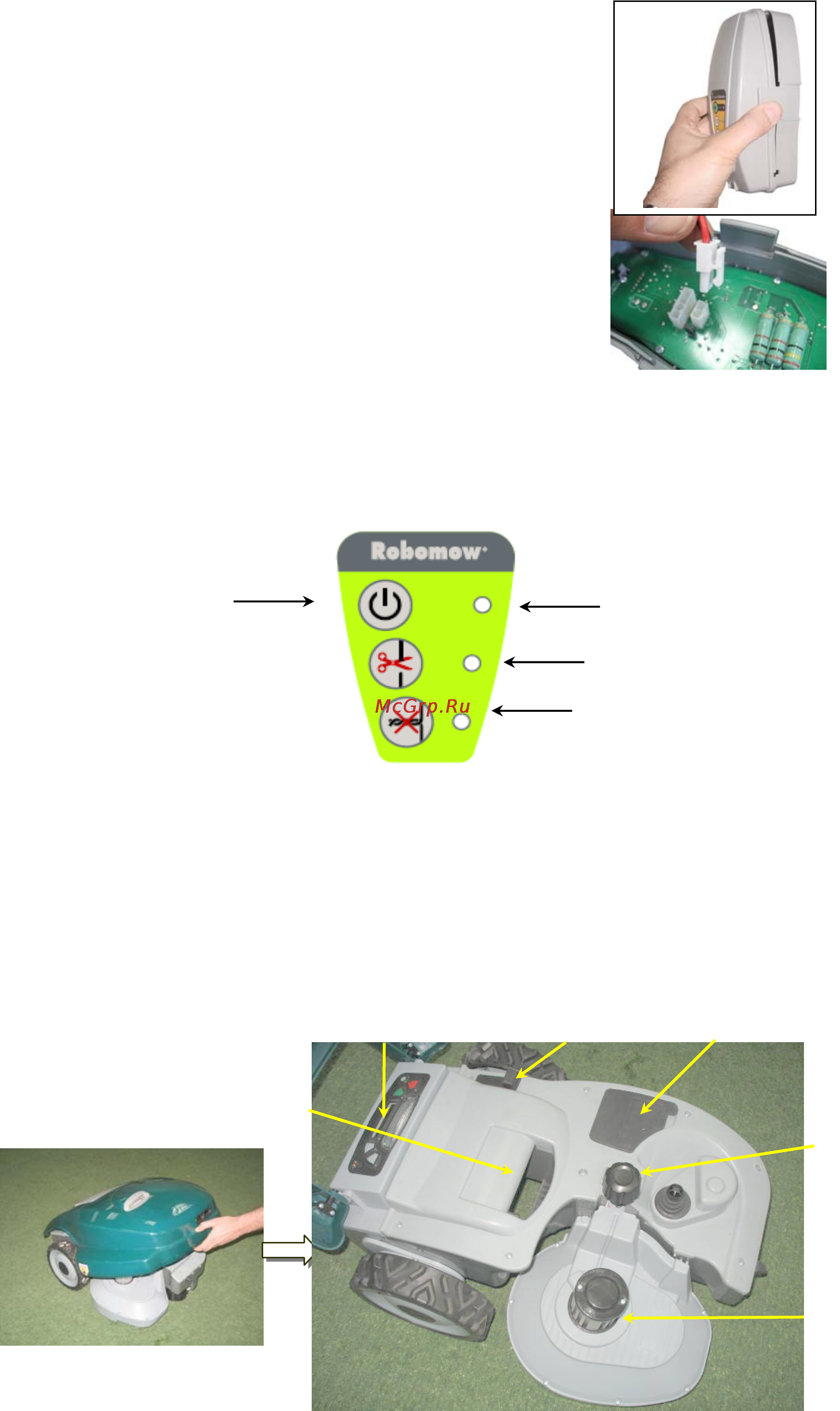

Figure 1.19
Perimeter Switch
Operating Panel
Flashing light
indicates the s
y
stem
Indicates poor splicing of
perimeter wires or perimeter
wire, which is too long
Indicates a
disconnected/broken
ON
button
Take the Perimeter Switch and squeeze the tabs on
both sides of the Perimeter Switch, (as shown in
figure 1.18a) and remove the back cover from the
Perimeter Switch.
Connect the power supply plug to the Perimeter
Switch board (see figure 1.18b) and reassemble the
Perimeter Switch.
Connect the power supply to a regular household
receptacle 230/120 Volts AC;
The Power Supply is for indoor use only, thus place
it in a dry location, which is well ventilated (do not
cover it with plastic bag); be sure the power supply
and the connection to the low voltage cable are in a
dry place and not exposed to water and rain.
Press the ‘ON’ button. A small flashing green light next to the ‘ON’ button indicates that the system is
on and functioning properly. The Perimeter Switch also has indicators for a disconnected/broken
perimeter wire and for
poor wire splicing. Figure 1.19
The Perimeter Switch has an automatic shutoff feature, eliminating the need for you to turn it off after
each use. It will shut itself off after 12 hours of operation. You may manually turn the perimeter switch
off by pressing the ‘ON’ button continuously for 3 seconds. A beep will be heard after the three
seconds, indicating you may release the button and the switch is off.
1.4 Robomow Preparation and Settings
1.4.1 Setting the Cutting Height
Lift the Bumper Cover from the front side of the Robomow (figure 1.20).
To change the cutting height, rotate the cutting height adjustment knob (see figure 1.21).
Figure 1.18b
Connect the power supply plug
to the Perim
eter Switch board
Figure 1.20 -
Lifting the Bumper Cover
Figure 1.21 -
RM200 General View
Cutting height
adjustment
knob
Mowing
motor
Carrying
handle
Power Supply
connection
Fuse locationControl Panel
Figure
1.18a
