Robomow RM200 [36/44] Batteries replacement

5.7 Batteries Replacement

WARNING!

Follow the instructions below. Complete replacement of one battery before starting to replace the second

battery.

Replacing the batteries:

- Lift the bumper and remove the batteries fuse;

- Remove the cutting height adjustment knob by lifting it

upwards (figure 5.4)

- Unscrew the five nuts manually at the rear side of the Chassis

cover (figure 5.5). If you find it difficult use a wide flat

screwdriver;

- Lift the rear side of the cover (see figure 5.6) and disconnect

only the two cables from the left battery (figure 5.7);

Place the new battery and connect the cables to the battery

tabs when the red and the black cables are fitted to the color

on the battery;

- Disconnect the cables from the right battery;

- Place the new battery and slightly crimp the battery

connectors with plyers, so that they fit tightly on the battery

tabs.

- Connect the cables to the battery tabs respectively by color;

- Place the cover back in its position and screw the five nuts

manually, confirm they are tight enough;

- Insert the batteries fuse and confirm the Robomow wakes up.

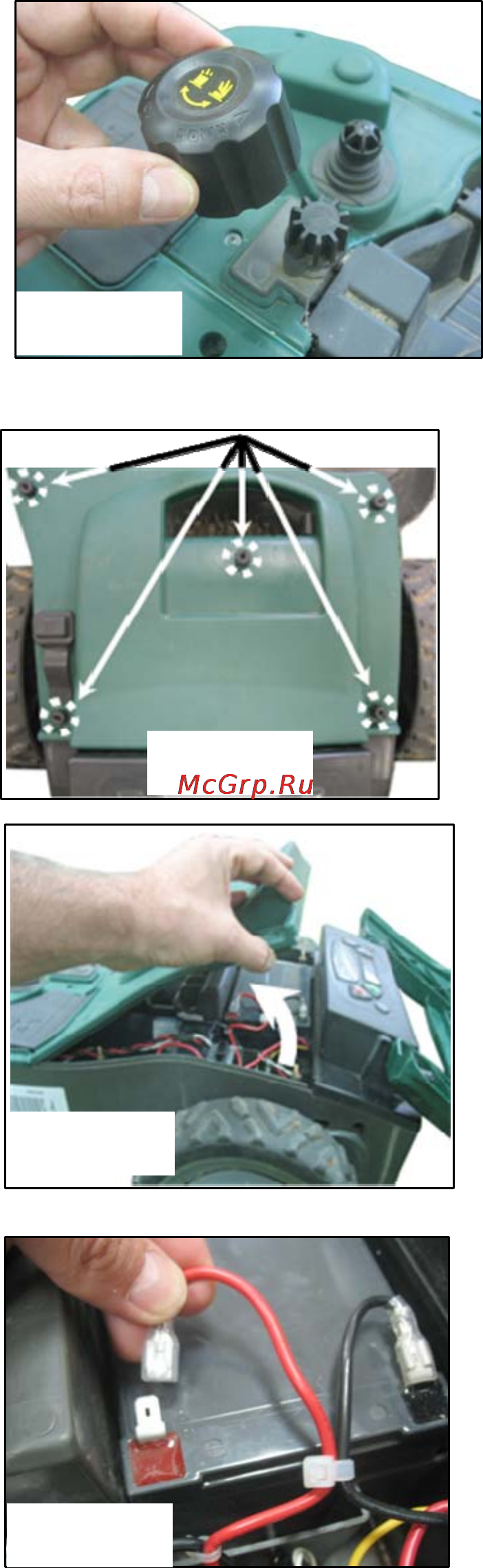

Figure 5.4

Figure 5.5

Figure 5.6

Figure 5.7
