DSL-562T DSL Router User’s Manual
xi
Installing the USB Driver
The CD-ROM shipped with the Router contains the USB driver software.
1. Insert the DSL-562T Installation CD-ROM into the CD-ROM drive.

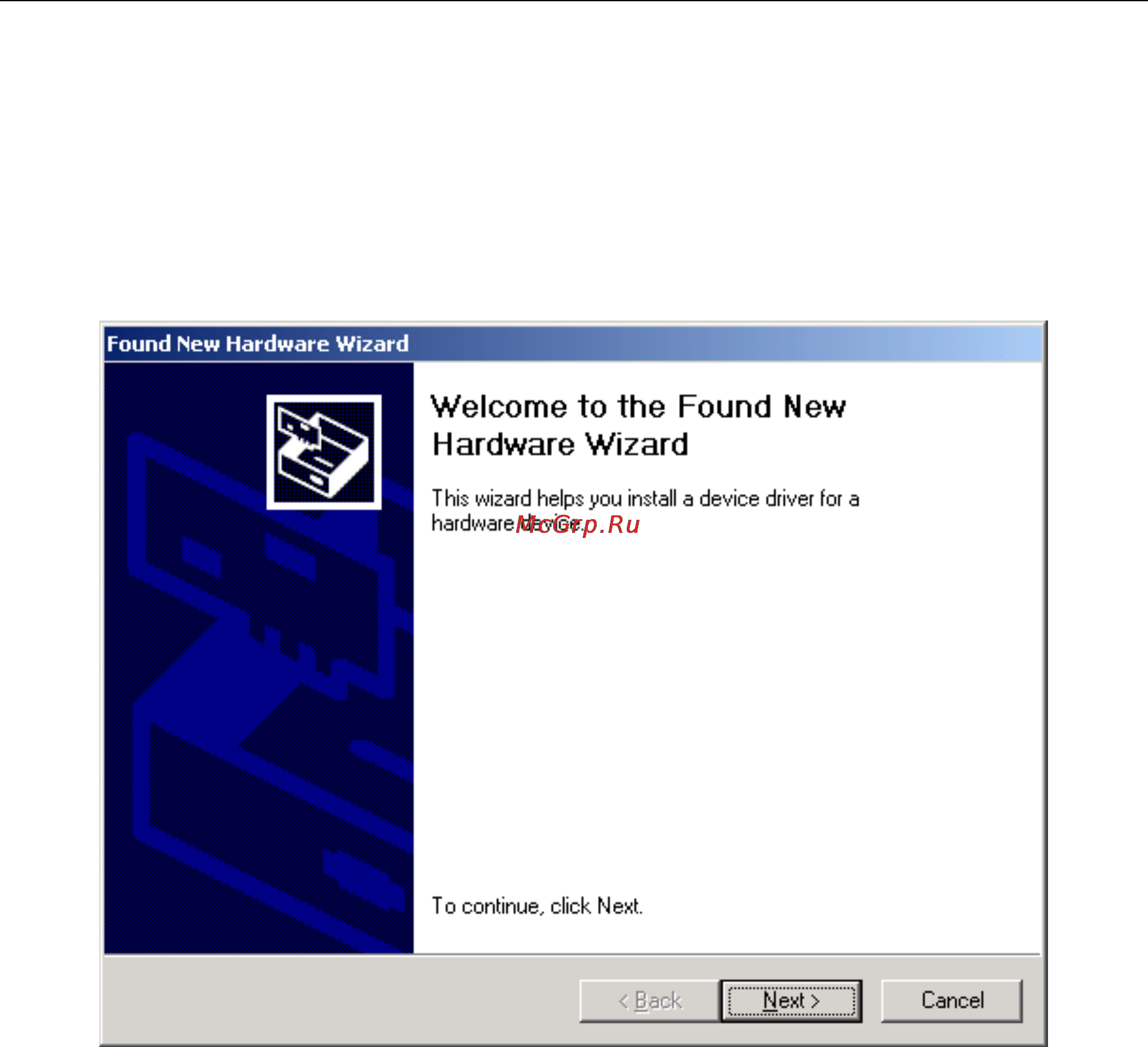

2. Connect the USB cable to the device. Within a few seconds you should see the “ Found New Hardware”
message window, followed shortly after by the opening “ Found New Hardware Wizard” window:
3. If you do not see the auto-run window pictured above, explore the CD and double-click the inf file
DLink_562t.inf.
