DSL-562T ADSL Router User’s Guide
34
4
Advanced Router Management
Click the Advanced tab to access menus used to configure UPnP, Port Forwarding, Access Control,
Advanced Security (including NAT, Firewall and DMZ setup), LAN Clients, Bridge Filters, Multicast pass-
through, Static Routing and Dynamic Routing (RIP setup).

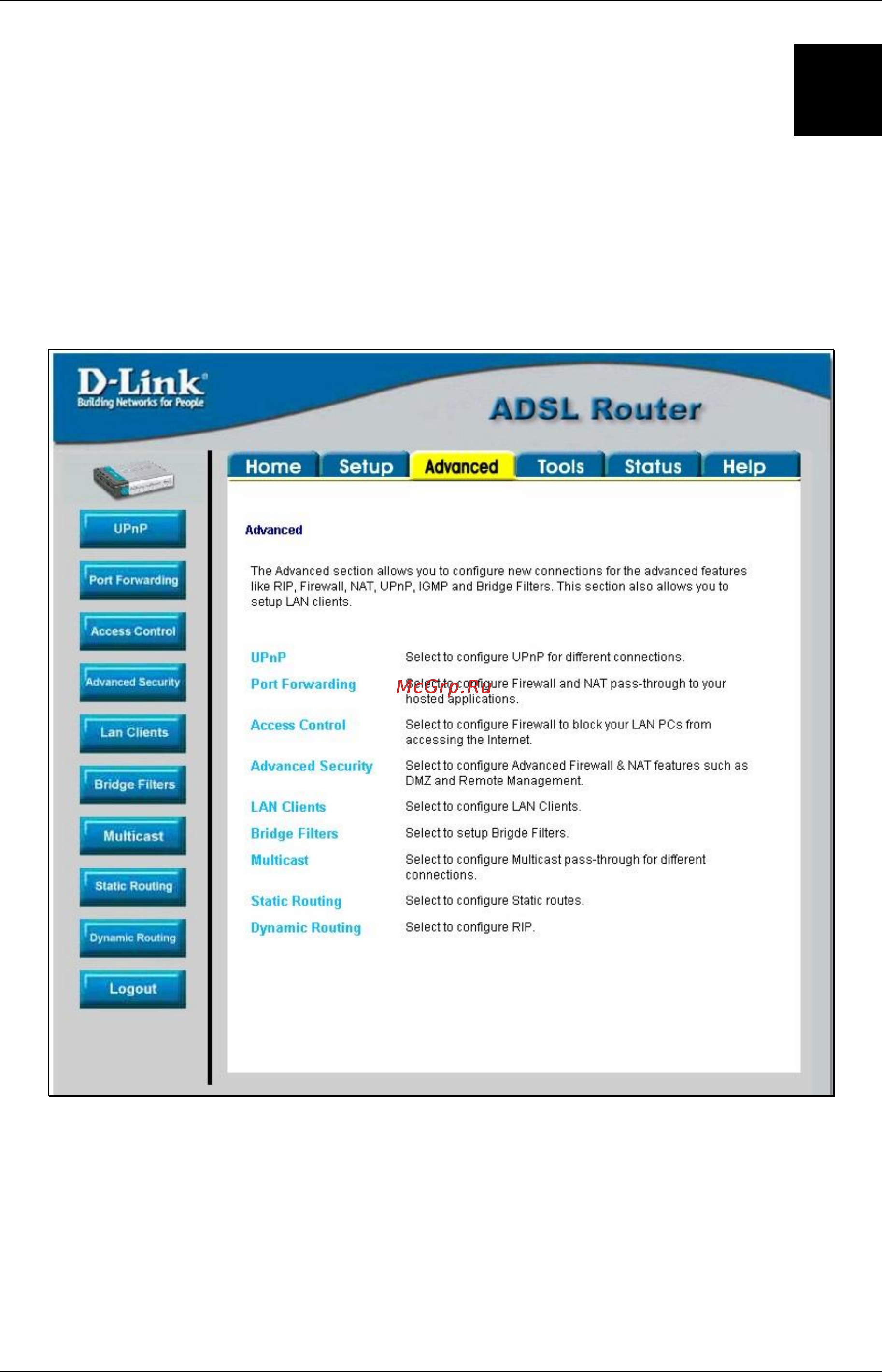

Figure 4-1. Advanced setup main menu
