DSL-562T ADSL Router User’s Guide
57
Network Statistics

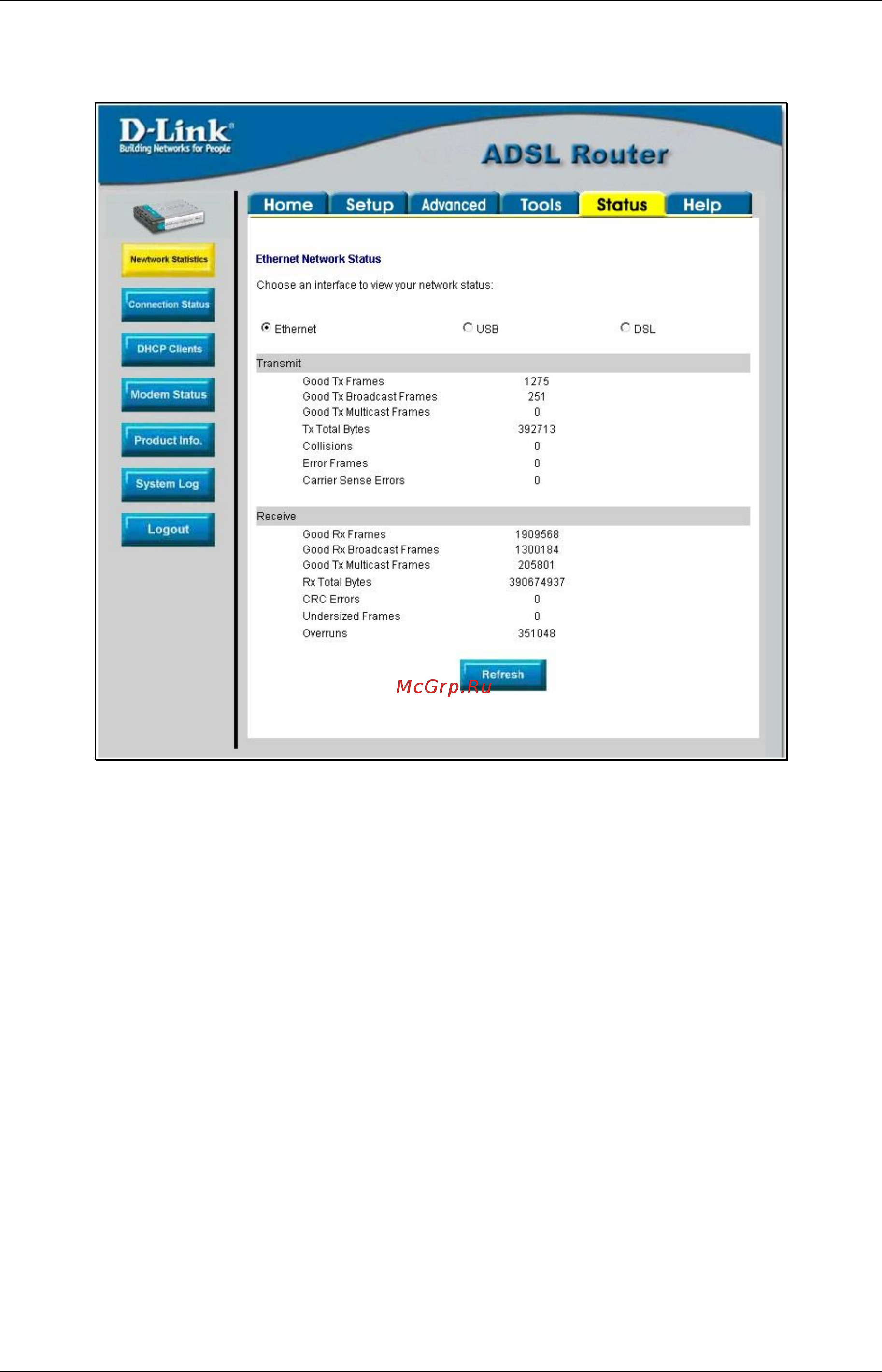

Figure 4-21. Network Statistics window
Choose the desired interface at the top of the window and then click Refresh to view Ethernet network statistics.
