DSL-562T ADSL Router User’s Guide
56
Status Menus
Use the Status windows to display various performance data about the Router

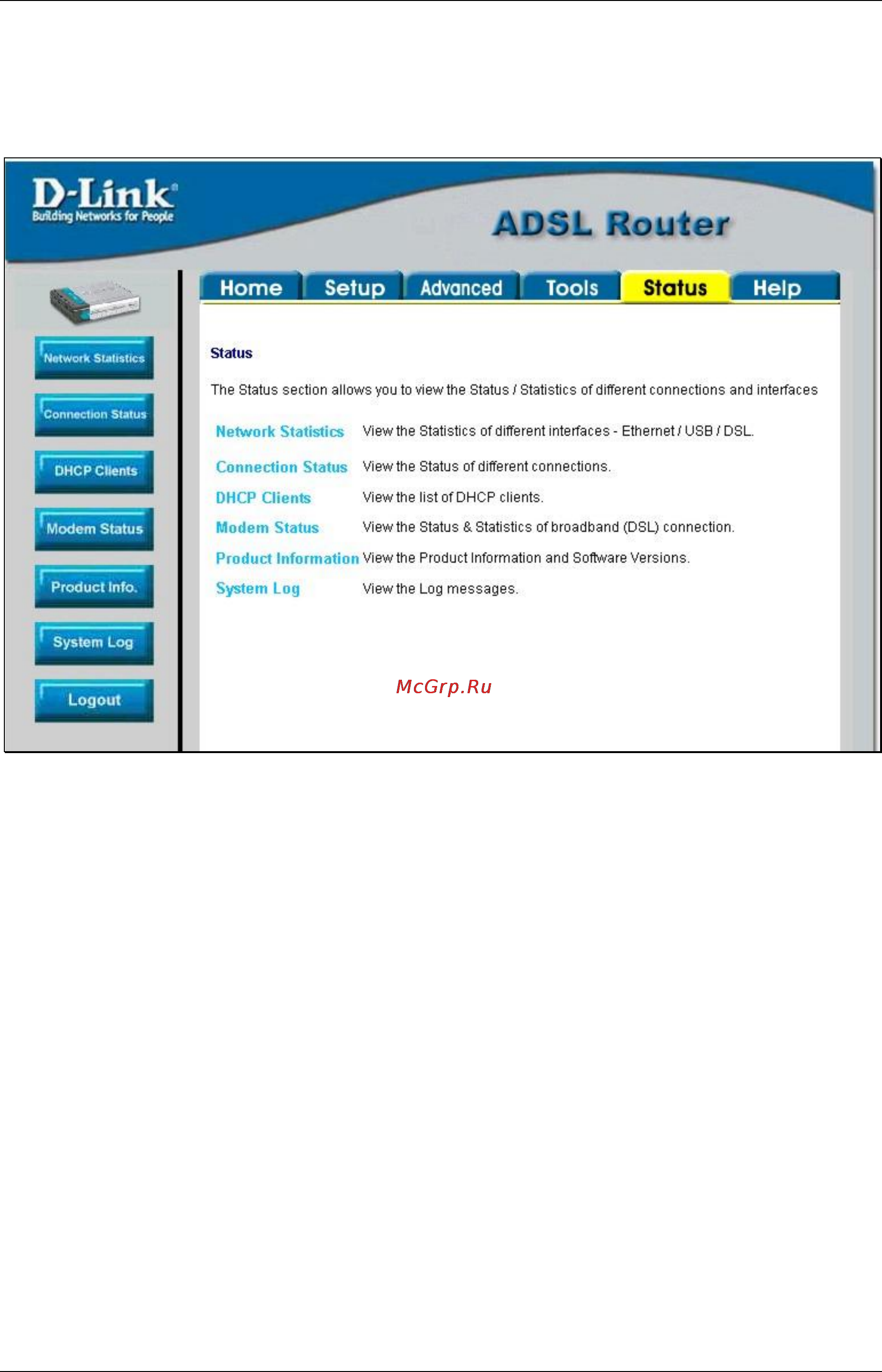

Figure 4-20. Status display links
Click the hyperlink or menu button for the desired Status window.
