DSL-562T ADSL Router User’s Guide
59
Modem Status
This window displays DSL statistics and various modem status data.

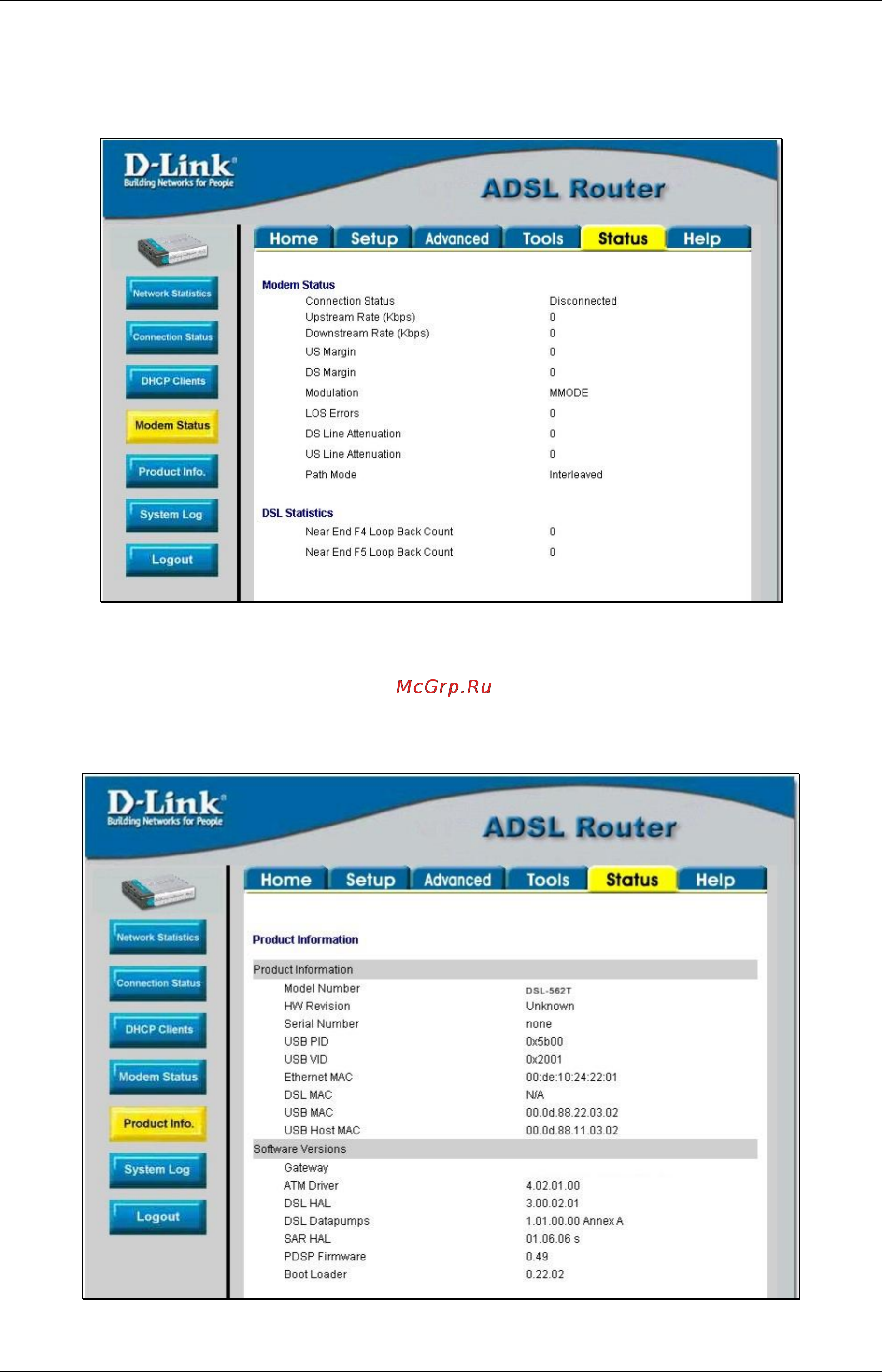

Figure 4-24. Modem Status window
Product Information
This window displays product information including hardware and firmware versions.
Figure 4-25. Product Information window
