DSL-562T ADSL Router User’s Guide
58
Connection Status

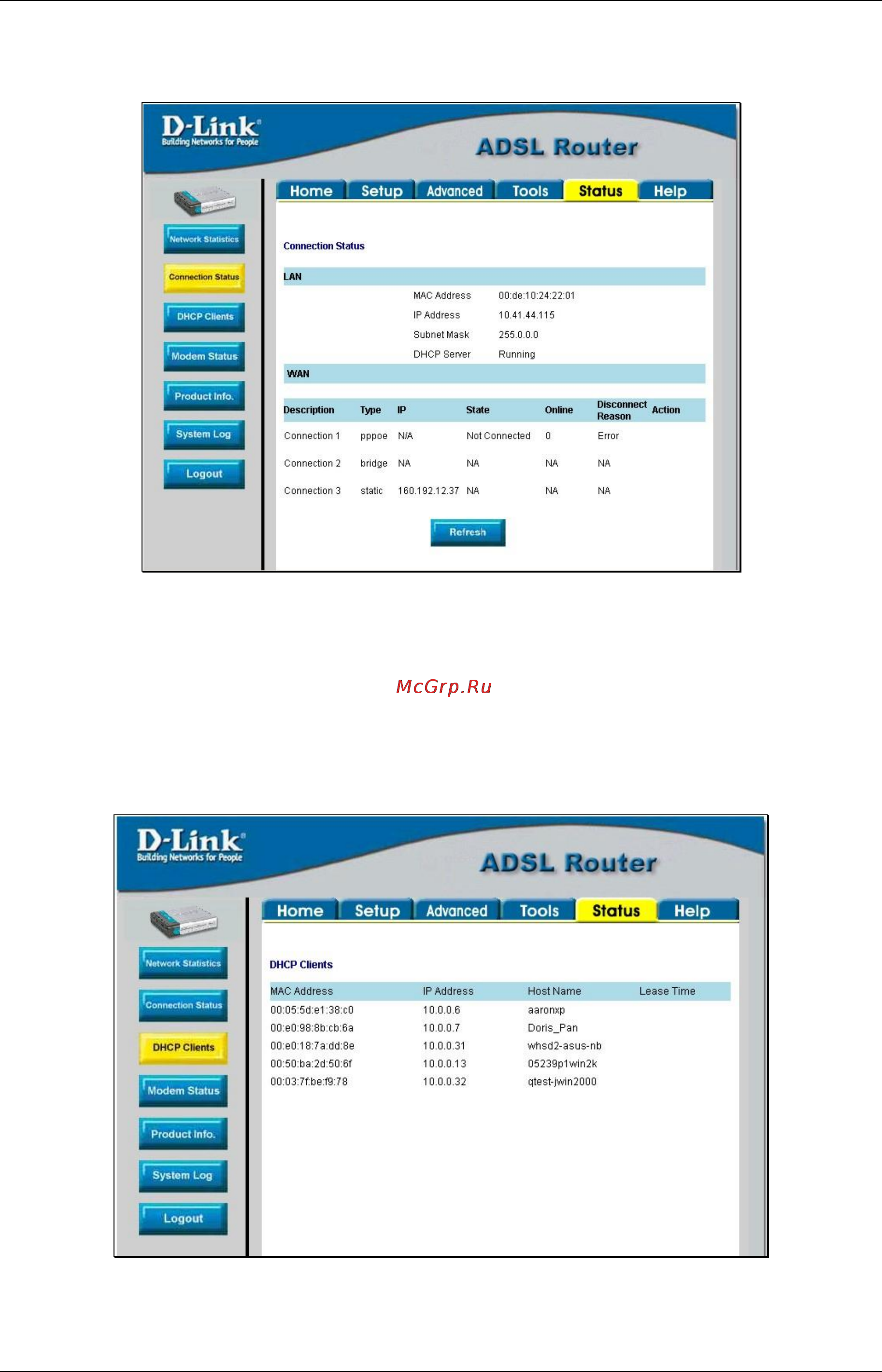

Figure 4-22. Connection Status window
Click Refresh to view connection status information.
DHCP Clients
This window displays the status of all current DHCP clients.
Figure 4-23. DHCP Clients window
