DSL-562T ADSL Router User’s Guide
33

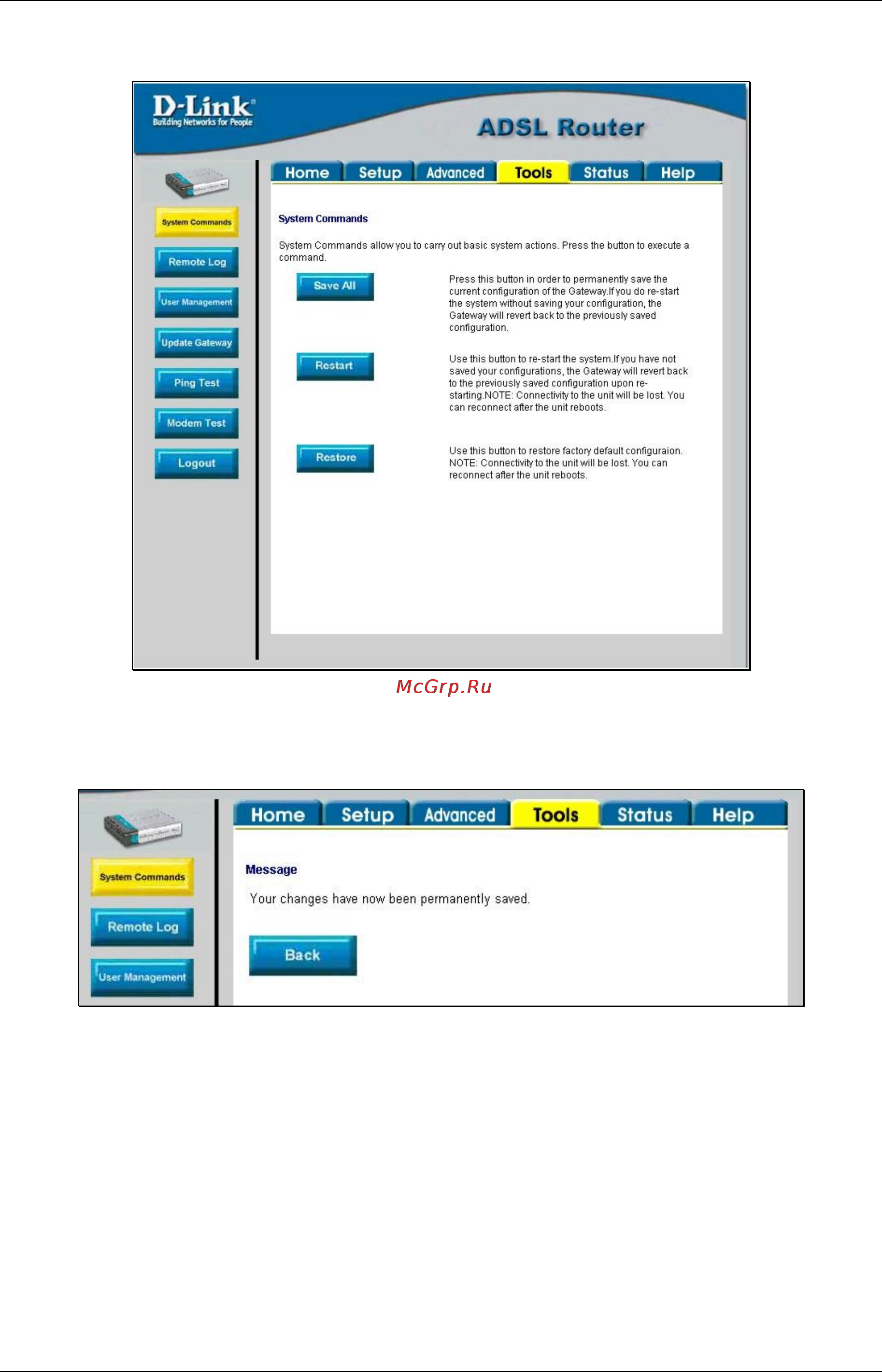

Figure 3- 17. Available System Commands
To save the new settings, click on the Save All button. It will take a second or two to perform the save. After the
save is completed, a message appears in a new menu (see below).
Figure 3- 18. Changes permanently saved message
To return to the System Commands menu you can click the Back button in the new menu or use the back
function of the web browser.
