DSL-562T DSL Router User’s Manual
xiii
6. Check “ CD-ROM drives" (as shown above) if you are using the USB driver included on the CD-ROM
that came with your Router. Click Next.
7. Connect the Ethernet cable if you have not done so.
8. Connect the ADSL cable if you have not done so. Remember that most ADSL installations require a
filter to divide the ADSL signal from the Plain-Old Telephone signal.

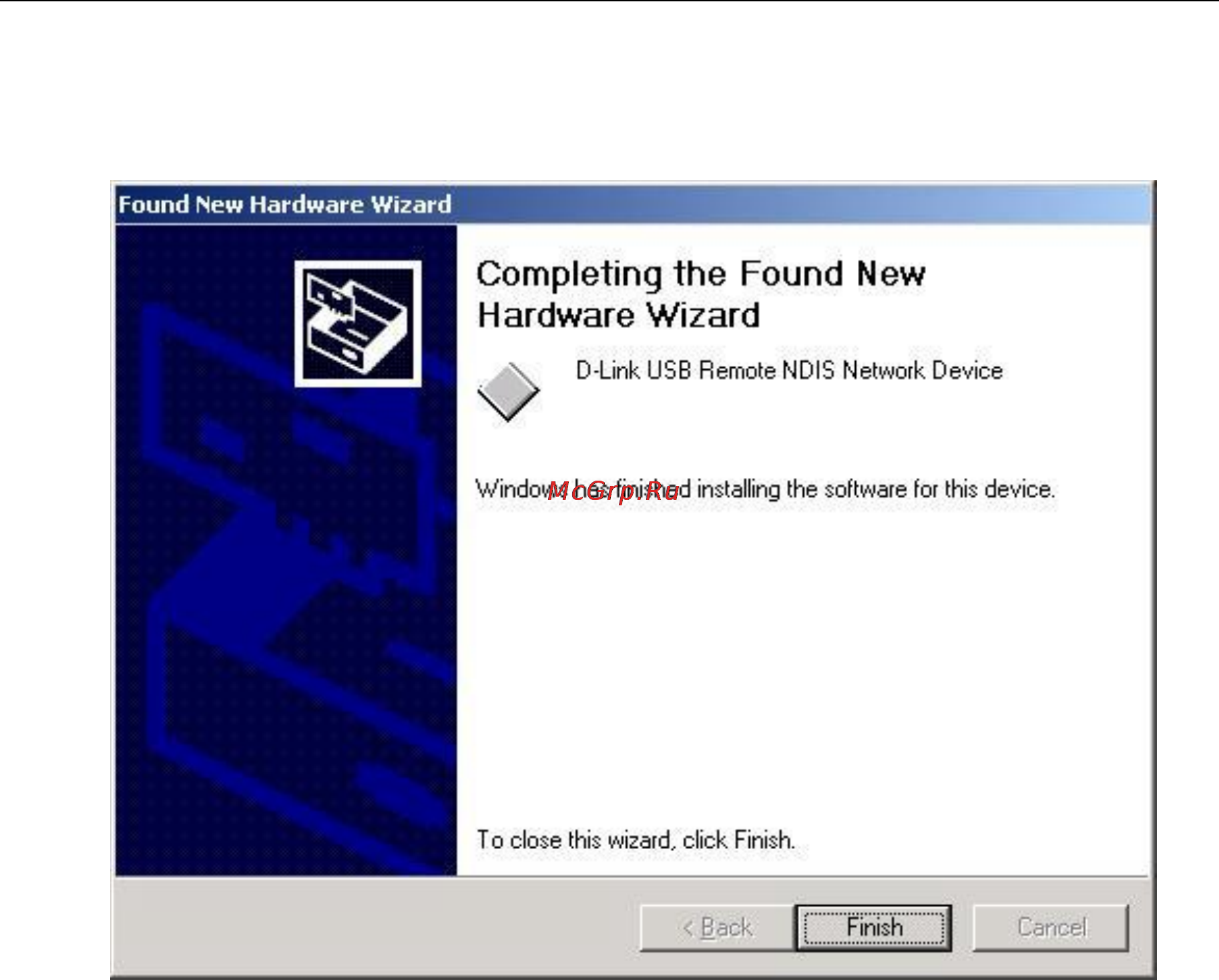

9. You can restart your computer now by clicking the Finish button. The computer will be able to connect
to the Router through the USB port after restarting.
