● OPERATING INSTRUCTIONS ●
Before operation: Insert the power supply plug into the power outlet and/or
turn the breaker on.
Operation indicator lamp
Remote control
receiving section
Emergency
operation
switch
Page 4
Horizontal vane
Air inlet
Air fi lter
Front
panel
Installing the remote controller batteries

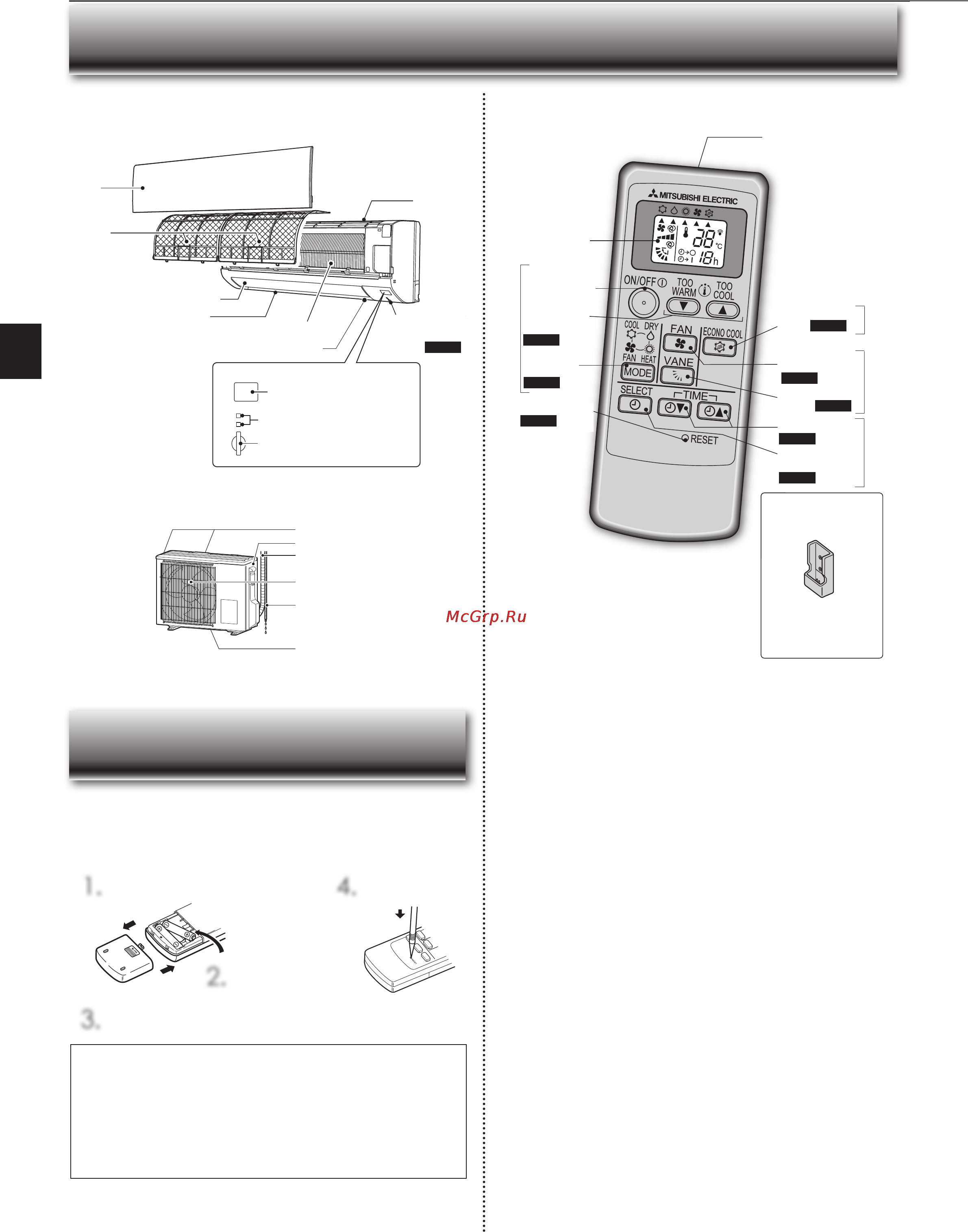

NAME OF EACH PART
PREPARATION BEFORE
OPERATION
Indoor unit
2.
Insert the negative
pole of AAA
alkaline batteries fi rst.
Air outlet
Outdoor unit
Outdoor units may be different in appearance.
*1 The manufacturing year and month is indicated on the spec name plate.
Heat exchanger
Air inlet (back and side)
Drainage hose
Air outlet
Drain outlet
Remote controller
holder (option)
Signal transmitting section
Distance of signal :
About 6m
Beep(s) is (are) heard
from the indoor unit
when the signal is
received.
Operation dis-
play section
ON/OFF
(operate/stop)
button
Temperature
buttons
Page 4
Operation
select button
Page 4
ECONO COOL
button
Page 5
FAN speed
control button
Page 4
VANE control
button Page 4
TIME set button
Page 5
RESET button
Page 3
• Install the remote control-
ler holder in a place where
the signal can be received
by the indoor unit.
Only use the remote controller provided with
the unit.
Do not use other remote controllers.
If two or more indoor units are installed in
proximity to one another, an indoor unit that is
not intended to be operated may respond to the
remote controller.
Remote controller
TIMER mode
select button
Page 5
• Make sure the polarity of the batteries is correct.
• Do not use manganese batteries and leaking batteries.
The remote controller
could malfunction.
• Do not use rechargeable batteries.
• Replace all batteries with new ones of the same type.
• Batteries can be used for approximately 1 year. However, batteries with
expired shelf lives last shorter.
• Press RESET gently using a thin instrument.
If the RESET button is not pressed, the remote controller may not operate
correctly.
1.
Remove the back lid.
3.
Install the back lid.
4.
Press RESET.
Emergency operation switch
A
C
B
D
Spec name plate *1
Refrigerant piping
Spec name plate *1
