Installation instructions
22
2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or sides of the dishwasher may
be placed up against walls or other furniture units.
If the dishwasher is installed near a heat source, fit the special insulating panel to prevent
overheating and malfunction of the appliance.
To ensure stability, install integrated or built-under dishwashers only under continuous worktops,
and screw them to the adjacent units.
To facilitate the installation procedure, the intake and drain hoses can be positioned in any
direction; make sure that the hoses are not kinked, crushed or pulled too tightly. A hole at least
8 cm in diameter is required to allow the power supply cable and pipes to pass.
Level the appliance on the floor using its adjustable feet. This operation is essential for ensuring
correct operation of the dishwasher.
For free-standing models only:
if the appliance is not built-in and is therefore accessible on one
side, the door hinge area must be covered for safety reasons (injury hazard).
The covering fixtures are available as an accessory from specialist dealers or the After-Sales
Service.
Some models are equipped with only one adjustable foot at the rear, which can be adjusted by
turning the screw on the lower front part of the appliance.
2.1 Water supply connection
Preventing the risk of clogging or damage:
if the water pipe is new or has not been used for a
long time, before connecting to the water supply check that the water is clear and free of impurities,
to prevent damage to the appliance.
The dishwasher must always be connected to the water system with new hoses; old or used
hoses must never be reused.

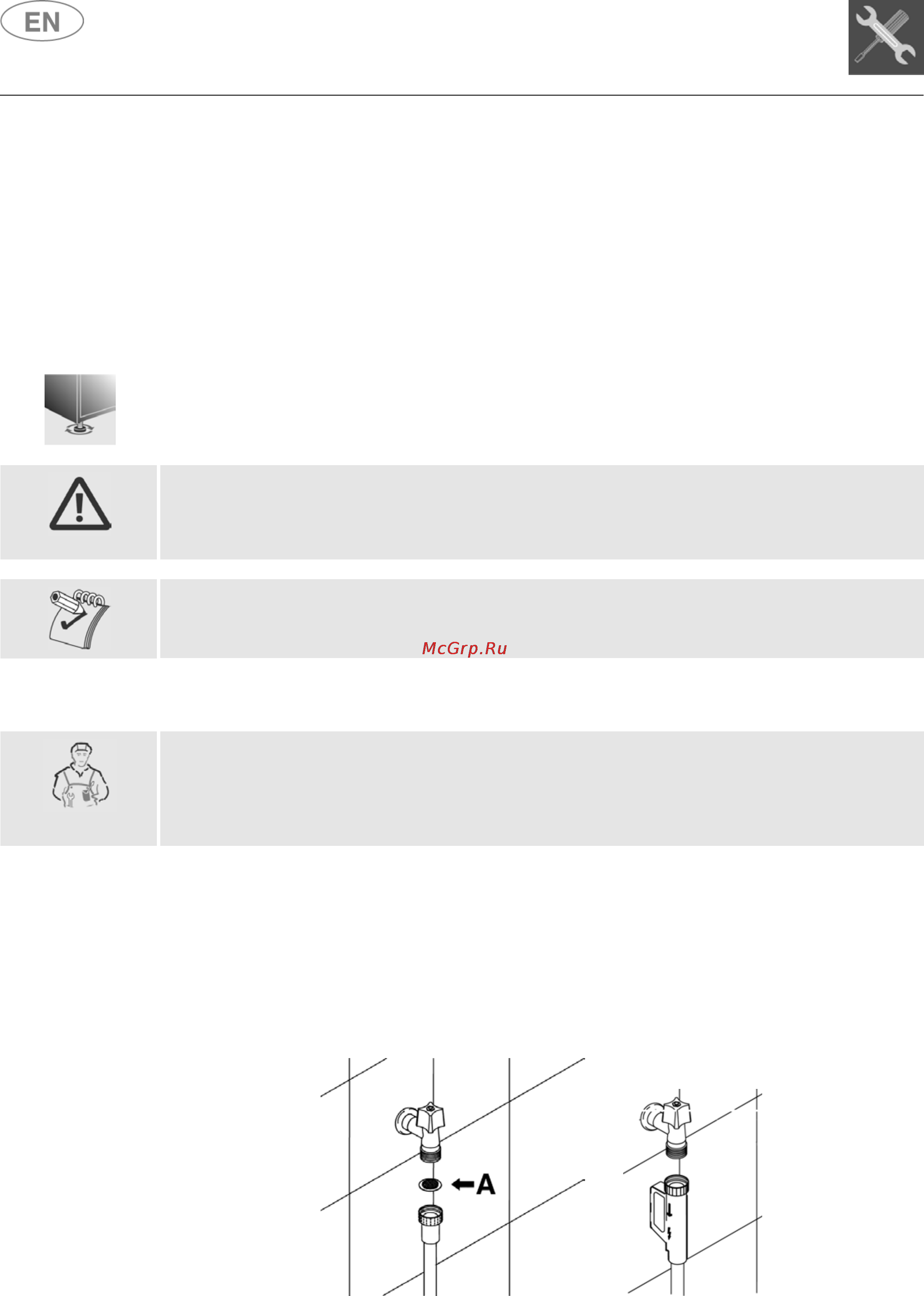

CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾” gas thread, inserting the filter
A
supplied
with the dishwasher.
Take care to screw the hose firmly into place with your hands and then complete by
tightening about ¼ of a turn with pliers. In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded ring.
