Samsung s27e591c [29/101] Connecting and using a source device
![Samsung s27e591c [29/101] Connecting and using a source device](/views2/1188220/page29/bg1d.png)
29
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device

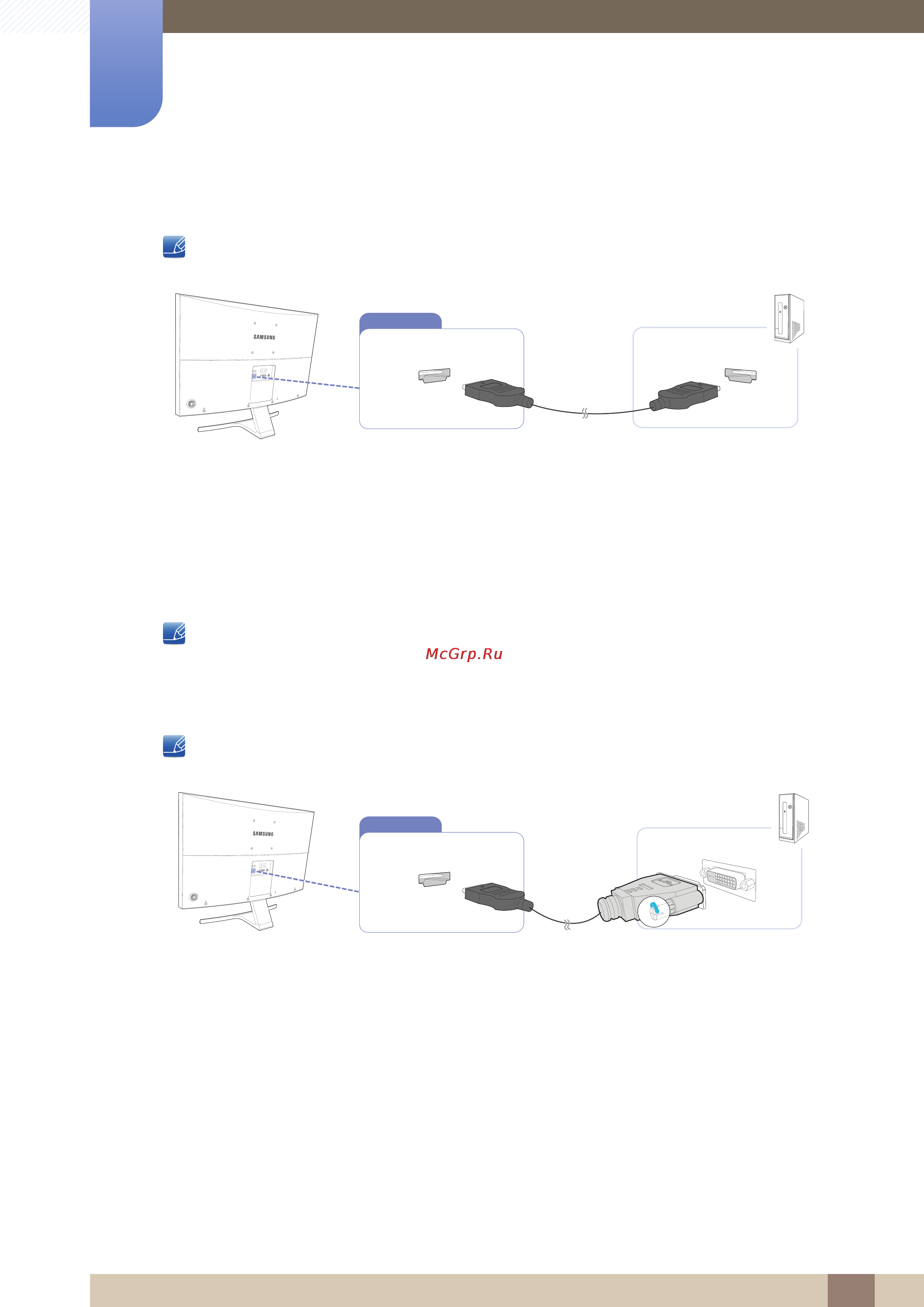

Connection Using the HDMI Cable
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1 Connect the HDMI cable to the [HDMI IN] port on the back of the product and the HDMI port on the
PC.
2 Connect the DC power adapter to the product and a power socket. Next, turn on the power switch
on the PC. (For details, refer to "2.2.2 Connecting the Power".)
3 Change the input source to HDMI controlling the JOG button UP/DOWN, when input source is not
set.
Connection Using an HDMI-DVI Cable
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1 Connect the HDMI-DVI cable to the [HDMI IN] port on the back of the product and the DVI port on
the PC.
2 Connect the DC power adapter to the product and a power socket. Next, turn on the power switch
on the PC. (For details, refer to "2.2.2 Connecting the Power".)
3 Change the input source to HDMI controlling the JOG button UP/DOWN, when input source is not
set.
HDMI IN
HDMI IN
When connecting an HDMI cable, use the cable that came with the components of the monitor.
If you use an HDMI cable other than provided by Samsung, the image quality may be degraded.
