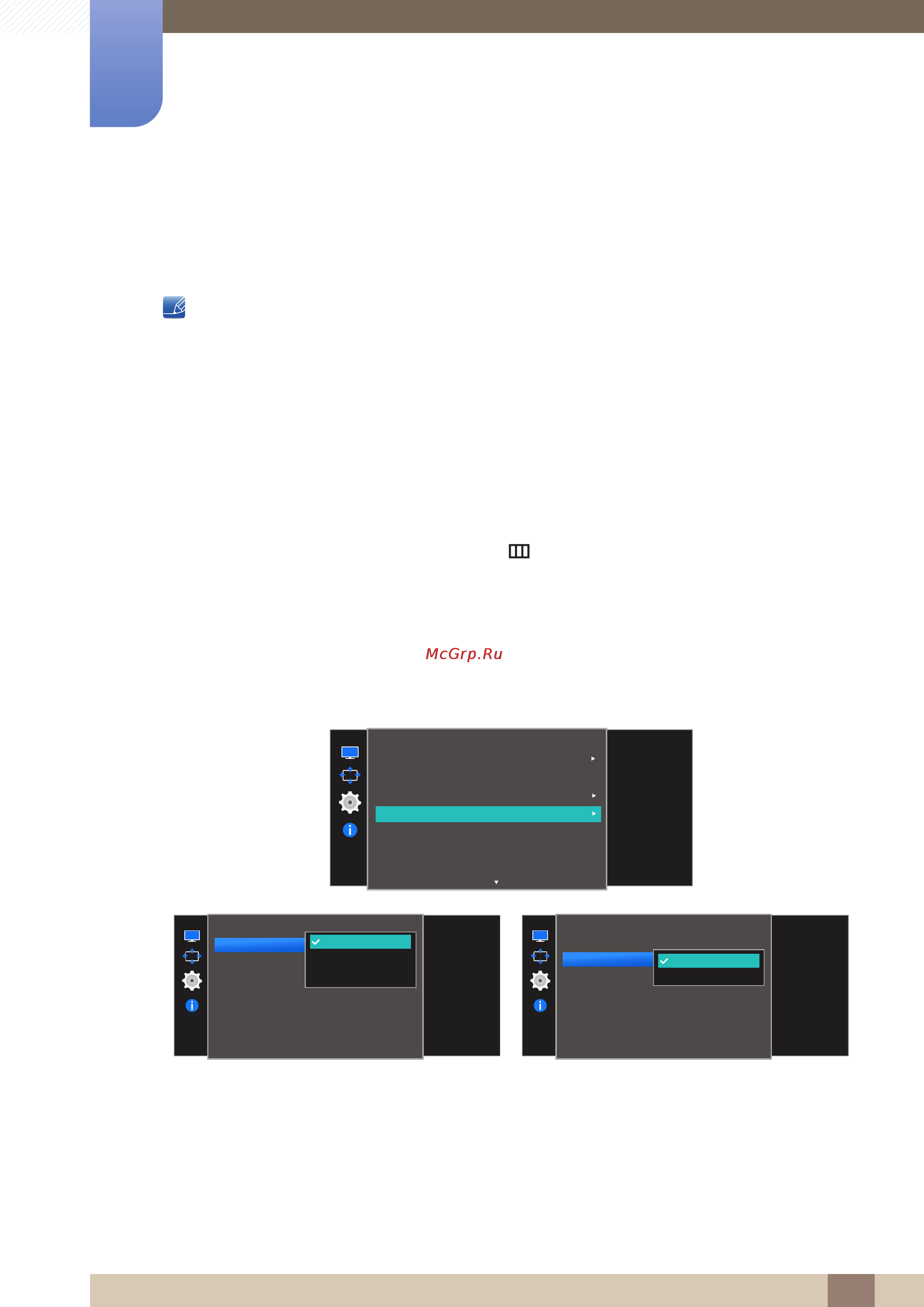

68
Setup and Reset
5
5 Setup and Reset
5.4 PC/AV Mode
Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie.
This function does not support Analog mode.
Supplied for the wide models only such as 16:9 or 16:10.
If the monitor (when set to HDMI or DisplayPort) is in power saving mode or is displaying the
message Check Signal Cable, press the MENU button to display the On Screen Display(OSD).
You can select PC or AV.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
5.4.1 Configuring PC/AV Mode
1 When the Function Key Guide appears, select [ ] by moving the JOG button UP.
Next, press the JOG button.
2 Move to System controlling the JOG button UP/DOWN and press the JOG button.
3 Move to PC/AV Mode controlling the JOG button UP/DOWN and press the JOG button.
4 Move to the HDMI or Display Port controlling the JOG button UP/DOWN and press the JOG
button. The following screen will appear.
5 Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.
6 The selected option will be applied.
System
Off
Auto
Acceleration
Stand-by
Sound
Eco Saving Plus
Off Timer
PC/AV Mode
Source Detection
Key Repeat Time
Power LED On
Set to AV to enlarge
the picture.
PC/AV Mode
HDMI
DisplayPort
PC
AV
DVI PC
Select the PC/AV
mode for the HDMI
source.
PC/AV Mode
HDMI
DisplayPort
PC
AV
Select the
PC/AV mode for the
DisplayPort source.
