Screen Setup
3
3 Screen Setup

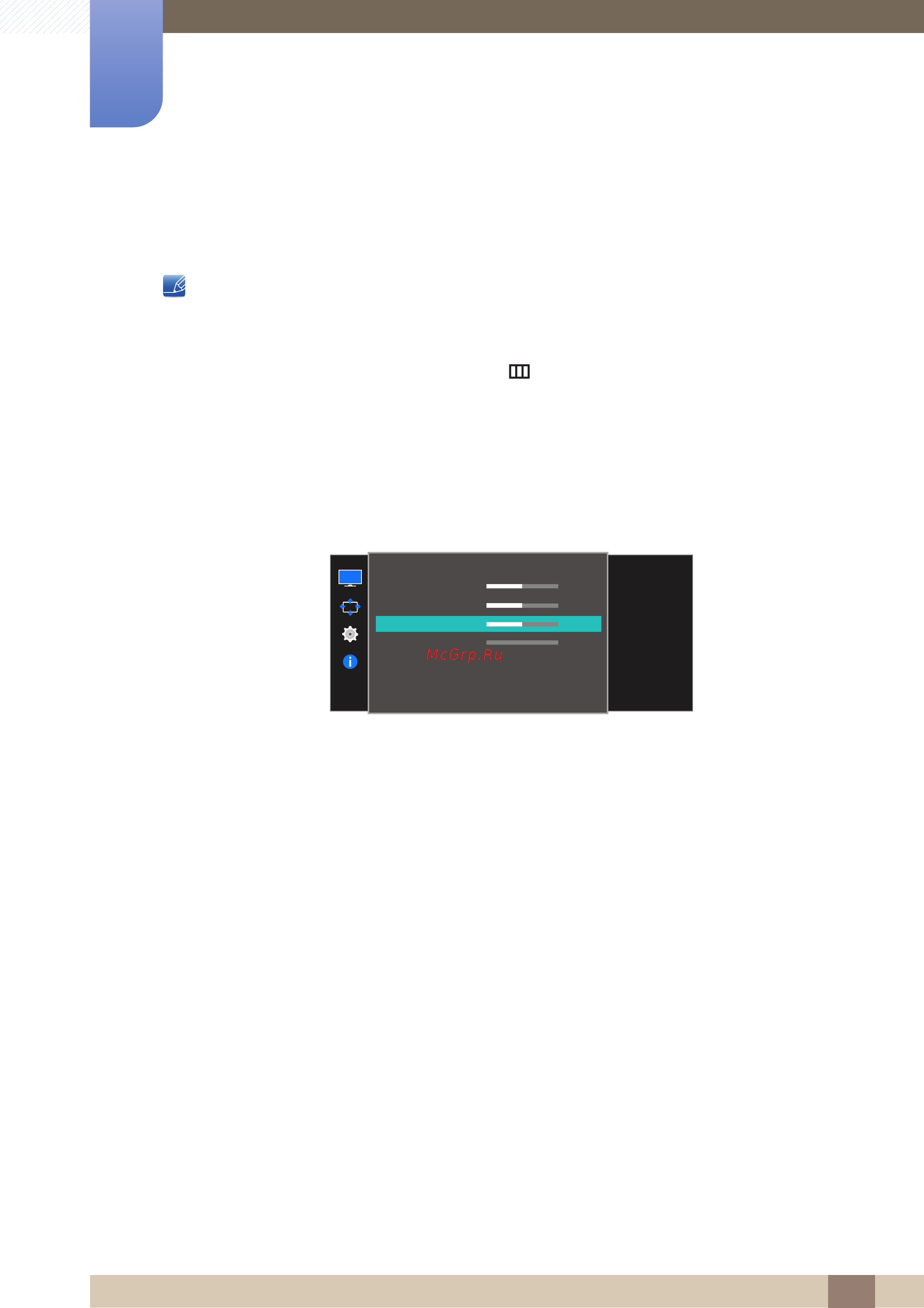

3.12.2 Adjusting Coarse
Adjust the screen frequency.
This menu is available in Analog mode only.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
1 When the Function Key Guide appears, select [ ] by moving the JOG button UP.
Next, press the JOG button.
2 Move to Picture controlling the JOG button UP/DOWN and press the JOG button.
3 Move to Screen Adjustment controlling the JOG button UP/DOWN and press the JOG button.
4 Move to Coarse controlling the JOG button UP/DOWN and press the JOG button.
The following screen will appear.
5 Adjust the Coarse controlling the JOG button LEFT/RIGHT.
6 The selected option will be applied.
100
75
60
50
50
2200
0
Screen Adjustment
H-Position
V-Position
Coarse
Fine
Adjust the screen
frequency.
50
50
1344
0
