TD-W8901N

150Mbps Wireless N ADSL2+ Modem Router User Guide

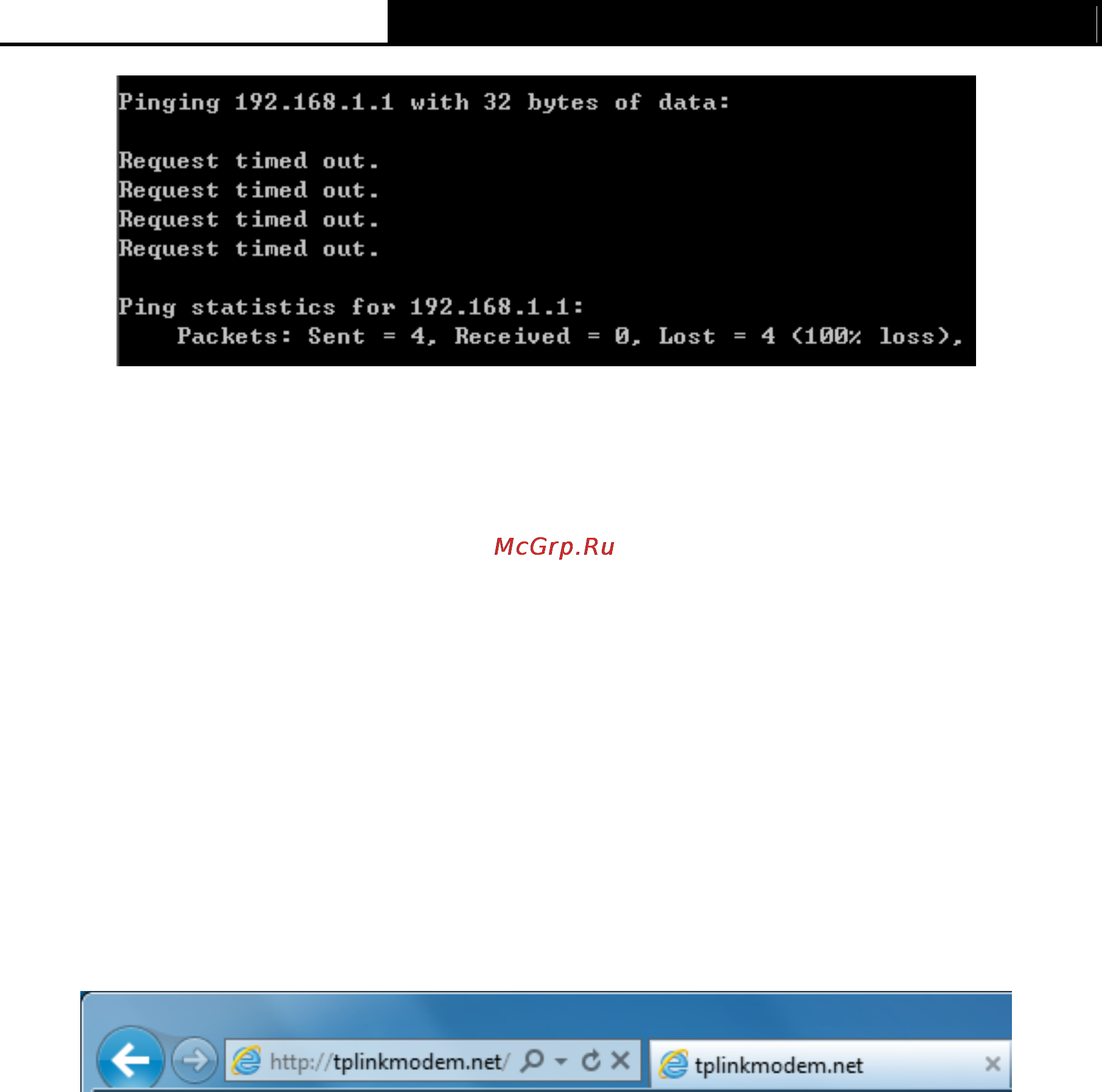

Figure 3-2

You can check it follow the steps below:

1) Is the connection between your PC and the modem router correct?

The LEDs of LAN port which you link to the device and the LEDs on your PC's adapter should

be lit.

2) Is the TCP/IP configuration for your PC correct?

If the modem router's IP address is 192.168.1.1, your PC's IP address must be within the

range of 192.168.1.2 ~ 192.168.1.254.

3.2 Login

Once your host PC is properly configured, please proceed as follows to use the Web-based Utility:

Launch your web browser and enter http://tplinkmodem.net or 192.168.1.1 in the address bar.

After that, you will see the screen shown below, enter the default User Name admin and the

default Password admin, and then click Login to access to the Web-Management page. You can

follow the steps below to complete the Quick Start.
