TD-W8901N

150Mbps Wireless N ADSL2+ Modem Router User Guide

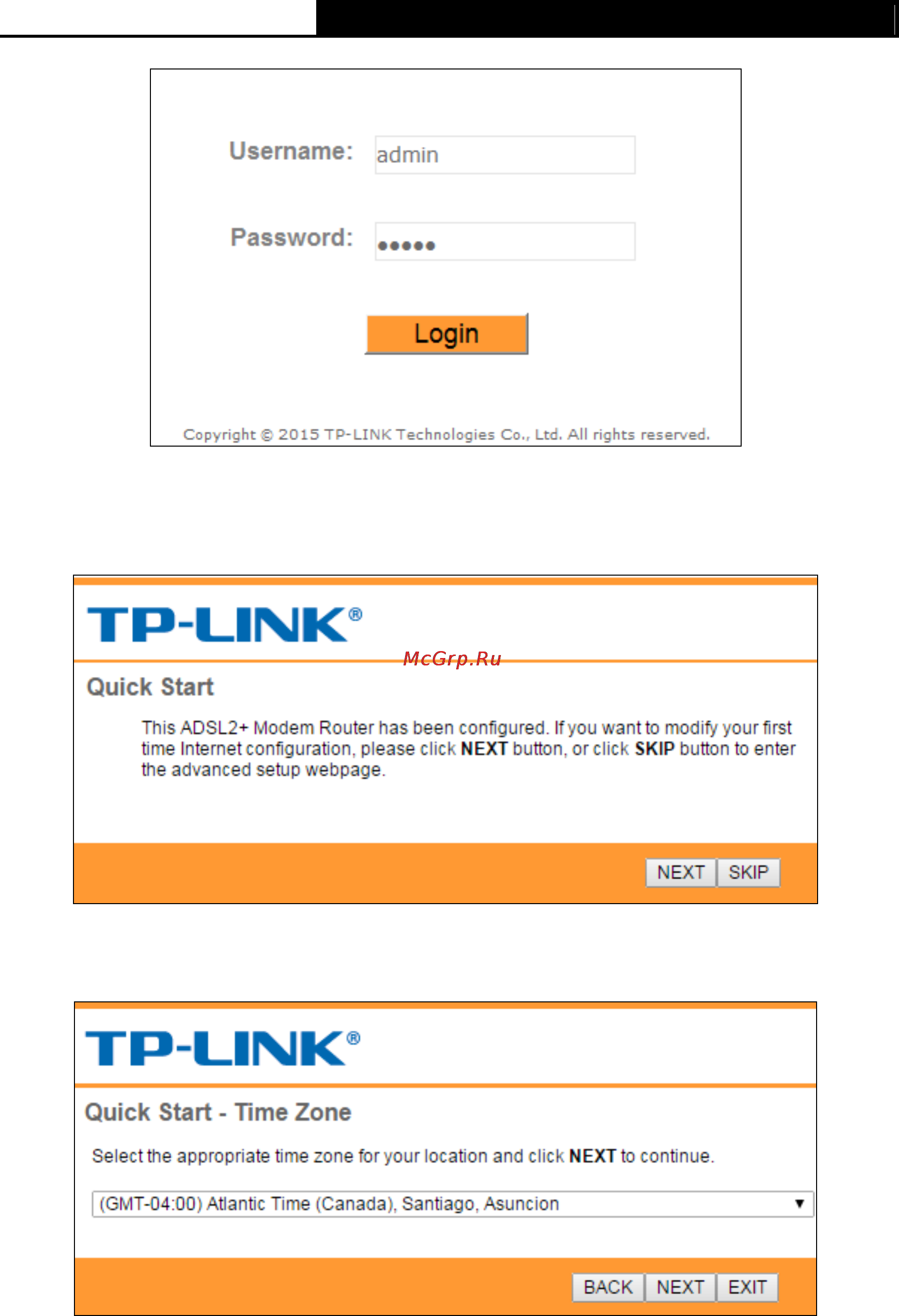

Figure 3-3

Step 1: Select the Quick Start tab, then click RUN WIZARD, and you will see the next screen.

Click the NEXT button.

Figure 3-4

Step 2: Configure the time for the modem router, and then click the NEXT button.

Figure 3-5
