TD-W8901N

150Mbps Wireless N ADSL2+ Modem Router User Guide

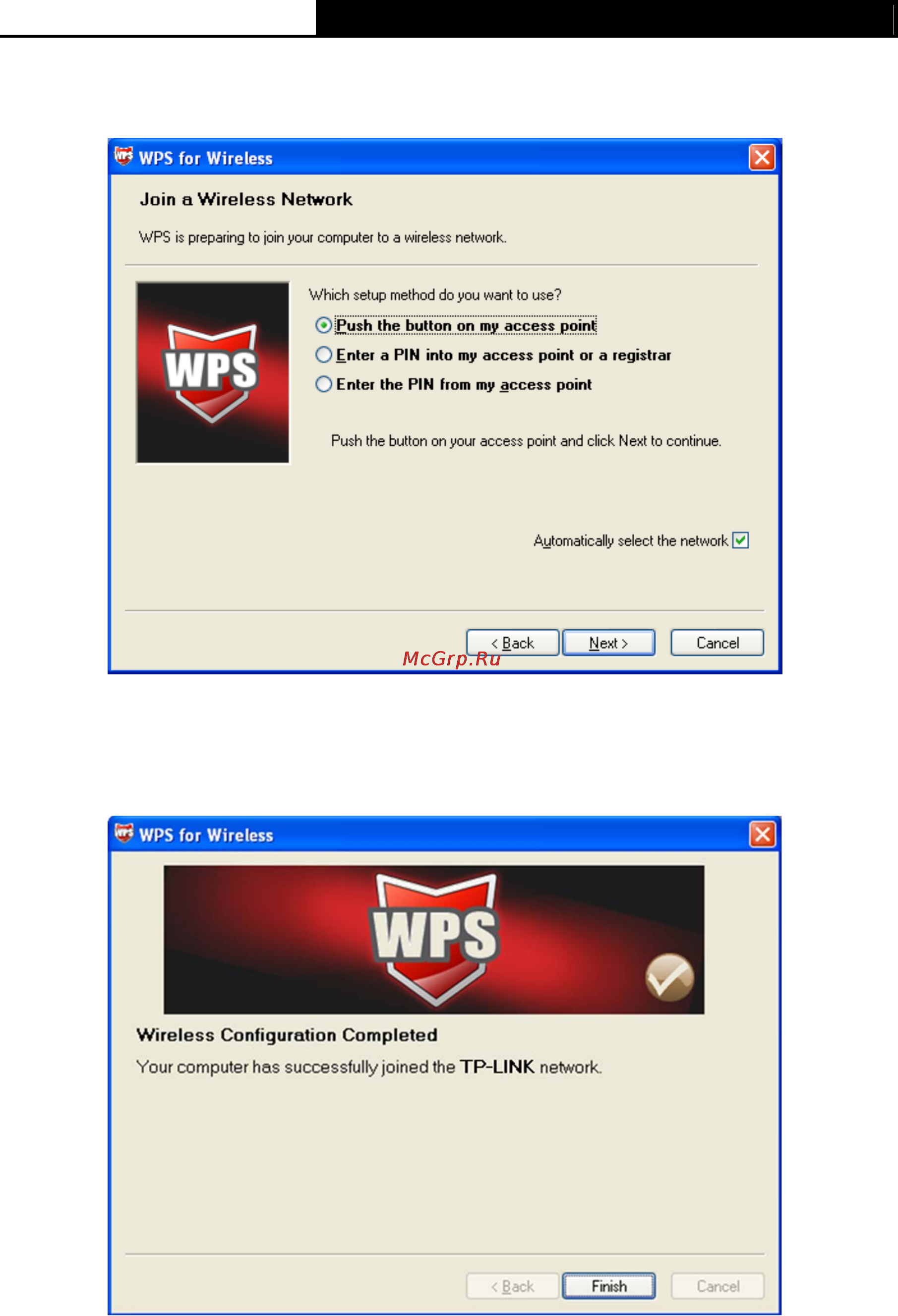

Step 2: For the configuration of the wireless adapter, please choose “Push the button on

my access point” in the configuration utility of the WPS as below, and click Next.

The WPS Configuration Screen of Wireless Adapter

Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS

configuration.

The WPS Configuration Screen of Wireless Adapter
