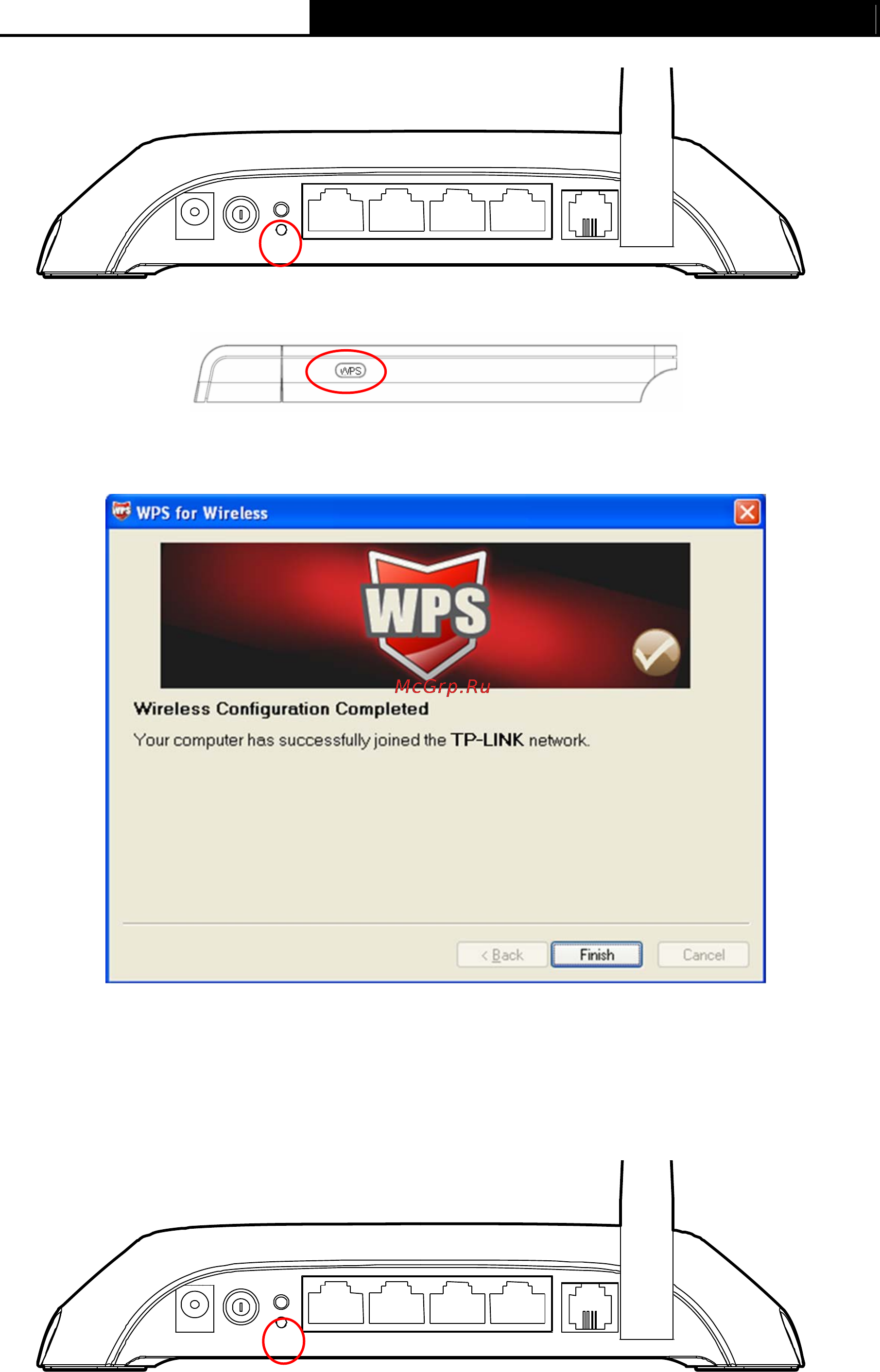

TD-W8901N
150Mbps Wireless N ADSL2+ Modem Router User Guide
POWER ON/OFF
WPS/
RESET
WiFi
LAN4
LAN3
LAN2
LAN1
ADSL
Step 2: Press and hold the WPS button of the adapter directly for 2 or 3 seconds.
Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS
configuration.
The WPS Configuration Screen of Wireless Adapter
Method Two:
Step 1: Press the WPS/RESET button on the back panel of the modem router for about 2
seconds or click Start WPS button in Figure 4-25.
POWER ON/OFF
WPS/
RESET
WiFi
LAN4
LAN3
LAN2
LAN1
ADSL
40
