TD-W8901N

150Mbps Wireless N ADSL2+ Modem Router User Guide

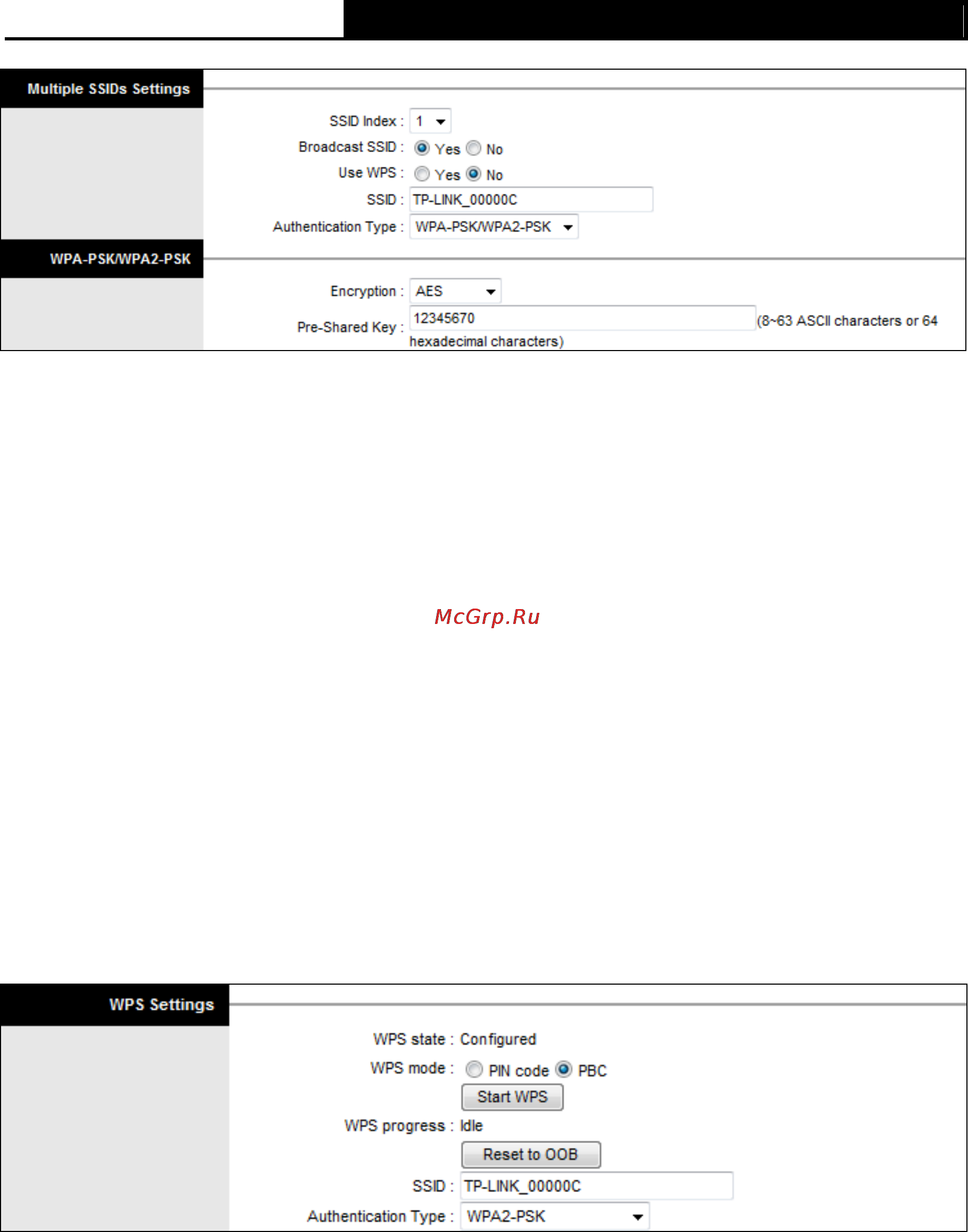

Figure 4-24

WPS Settings

 WPS Settings: WPS can help you to add a new wireless device to an existing network

quickly. This section will guide you how to use WPS function.

• WPS state: Display the current WPS state.

• WPS mode: If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can

establish a wireless connection between wireless adapter and modem router using either

Push Button Configuration (PBC) method or PIN method, please select the one you

want.

• WPS progress: Show the current WPS progress.

• Reset to OOB: Use this button to reset the WPS state to “unconfigured”, so that a new

key will be created when using WPS function next time.

1) PBC

If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration

(PBC) method, you can add it to the network by PBC with the following two methods. Click

PBC, you will see the screen as shown below.

Figure 4-25

Method One:

Step 1: Press the WPS/RESET button on the back panel of the modem router for about 2

seconds or click Start WPS button in Figure 4-25.
