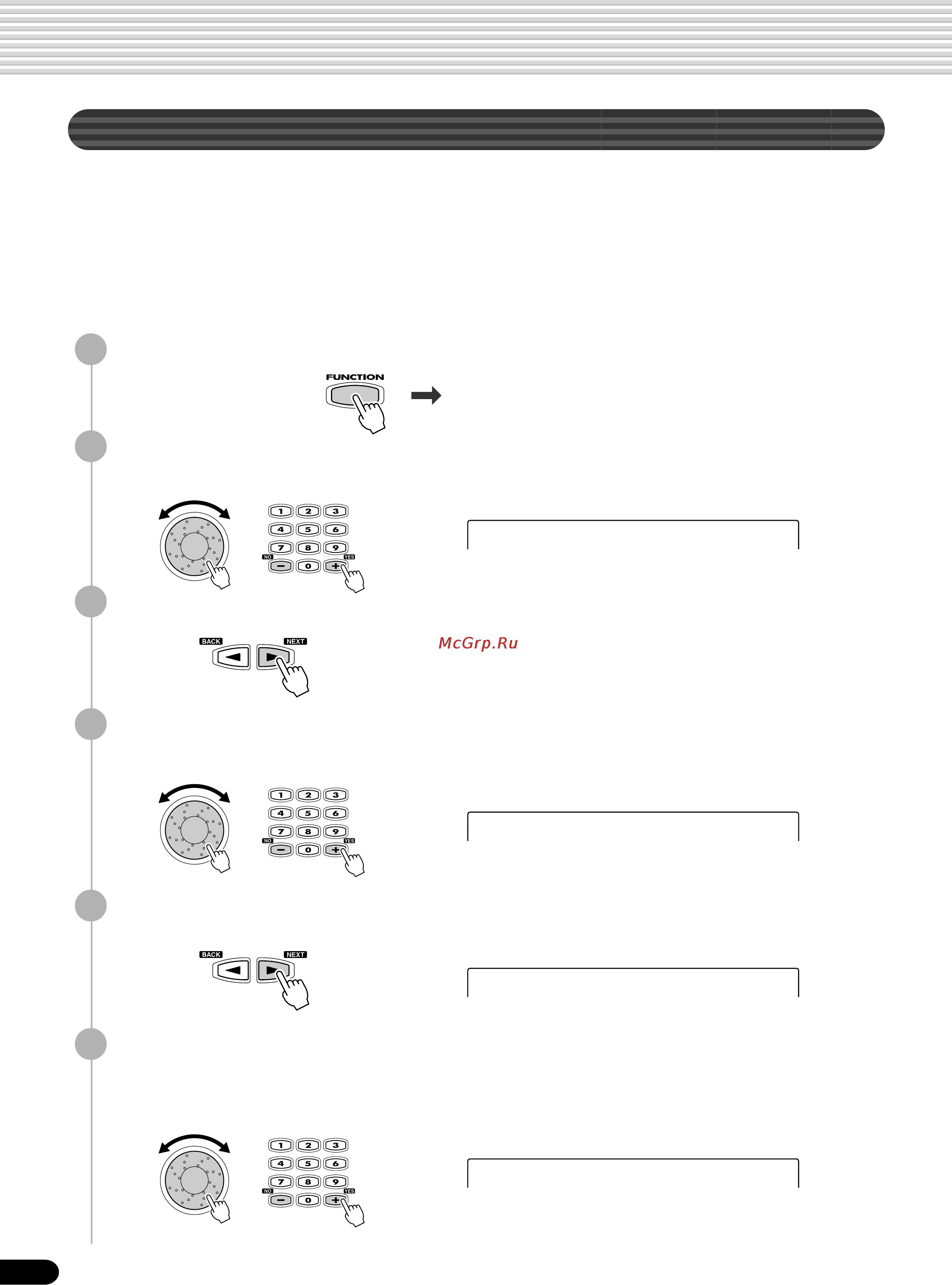

![Yamaha PSR-540 [112/160] Type xg module](/views2/1019243/page112/bg70.png)
112
MIDI Functions
110
MIDI Template
The PSR-540 is capable of transmitting and receiving MIDI data over sixteen indepen-
dent channels. For proper MIDI operation, it is necessary to determine which data is
set to which channel.
The MIDI Template function allows you to instantly configure all appropriate transmit/
receive settings with a single button press.
2
Select “Midi.”
Use the data dial, the [+/YES] button or the [-/NO] button.
3
Press the [NEXT] button to display the MIDI screen.
4
Select “Template.”
Use the data dial, the [+/YES] button or the [-/NO] button.
5
Press the [NEXT] button to display the MIDI Template screen.
6
Select a MIDI Template.
Use the data dial, the [+/YES] button or the [-/NO] button.
For details, refer to the MIDI Template List (page 113).
1
Press the [FUNCTION] button.
FUNCTION
SONG
STYLE
VOICE LR12
F5 Midi
Menu=Template
Type=Acmp Out
Type=XG Module
