56
Registration Memory

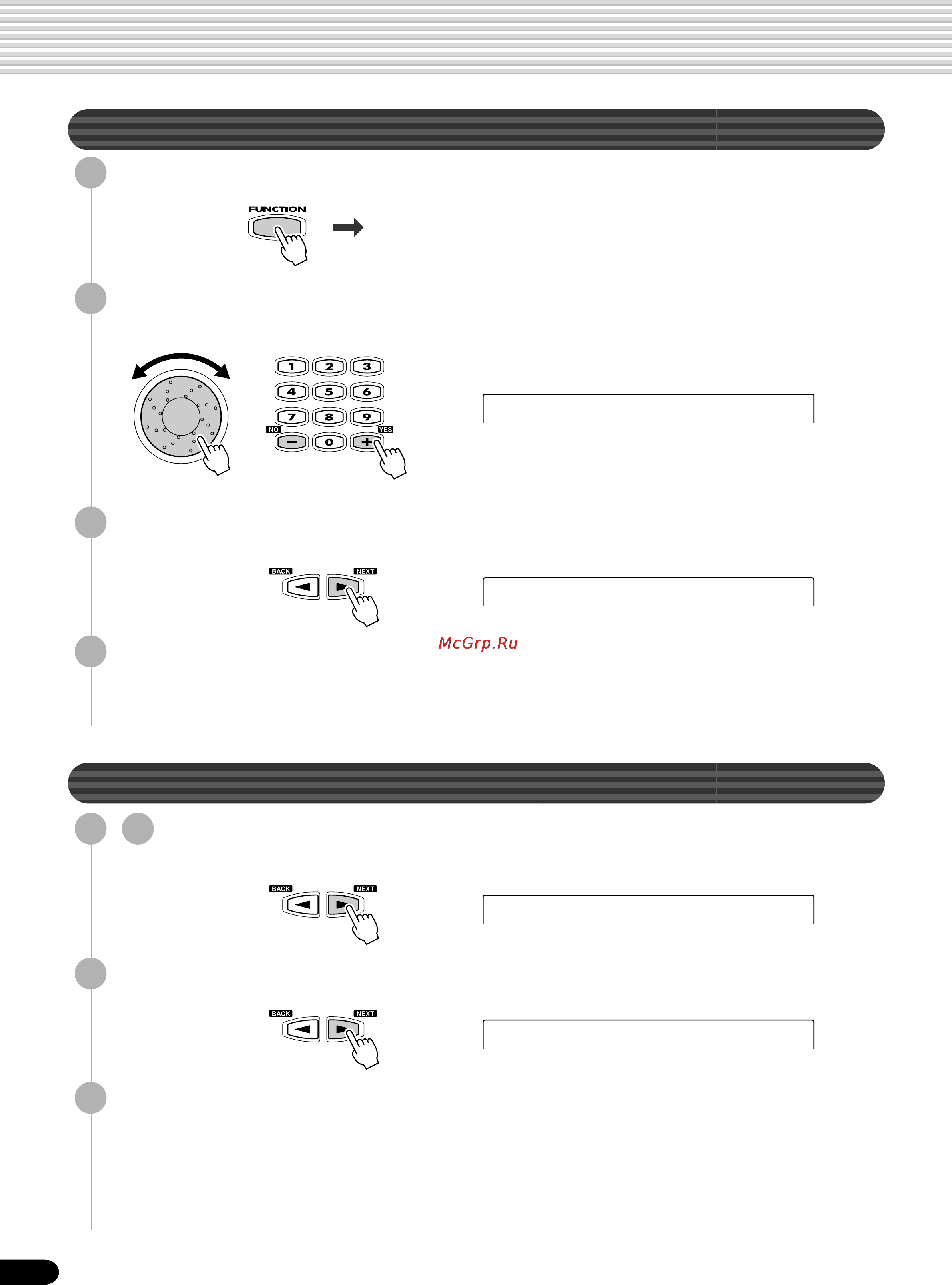

Selecting a Registration Bank
1
Press the [FUNCTION] button.
3
Press the [NEXT] button to display the Registration Memory
Bank screen.
4
Select a bank.
Use the data dial, the [+/YES] button, the [-/NO] button or the number buttons
[1]-[0].
Naming the Registration Banks
1
-
3
Use the same operation as in “Selecting a Registration
Bank” (see above).
4
Press the [NEXT] button to display the Name screen.
5
Enter the desired name for the bank.
Use the keyboard to enter the name (page 21).
Up to eight letters or characters can be used.
FUNCTION
SONG
STYLE
VOICE LR12
F2 Regist Memory
Bank=01 Regist01
Bank=01 Regist01
R.Name =Regist01
2
Select “Regist Memory”.
Use the data dial, the [+/YES] button or the [-/NO] button.
54
