69

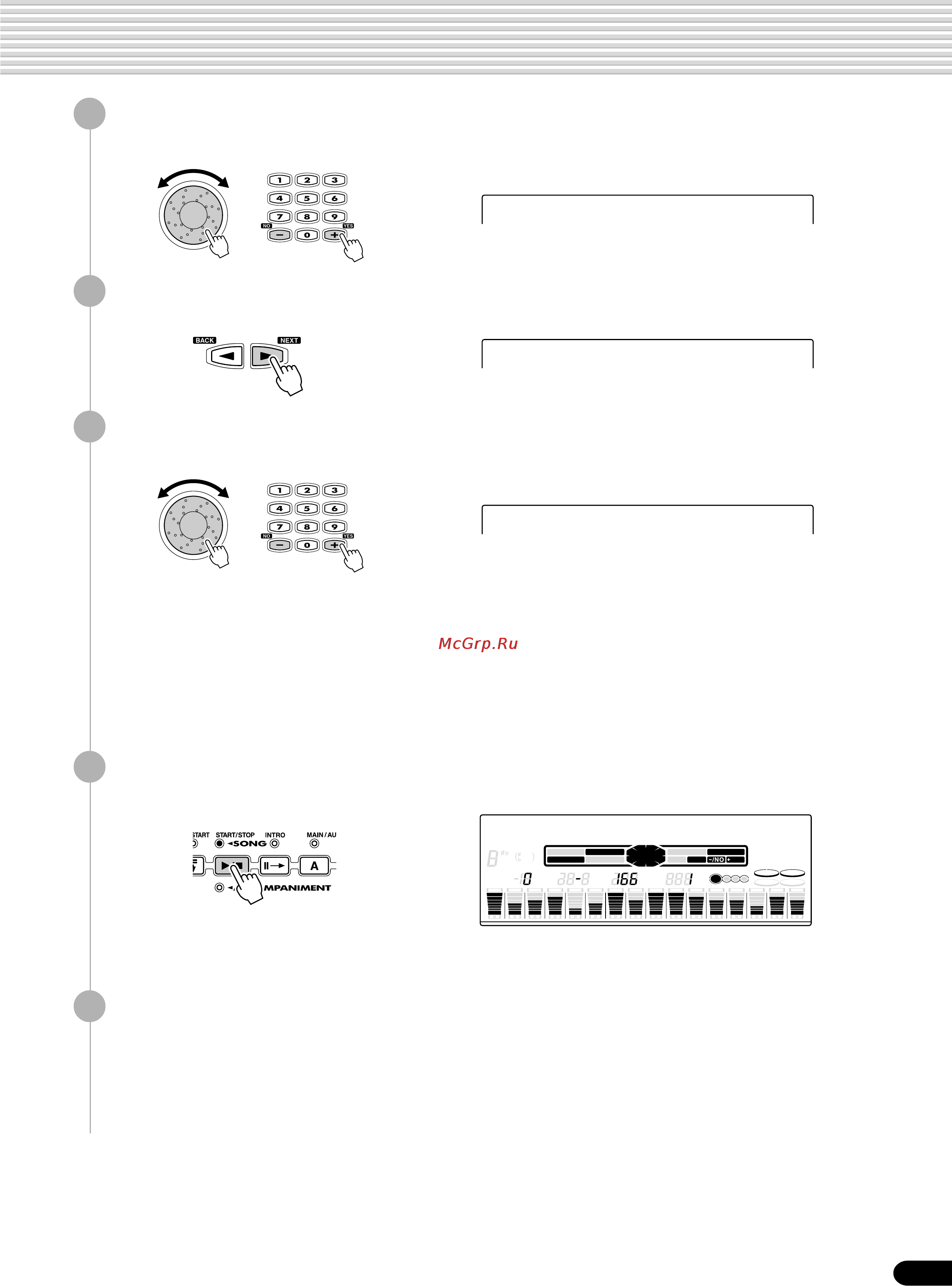

Disk Song Playback
4
Select “PlyMode”.
Use the data dial, the [+/YES] button or the [-/NO] button.
5
Press the [NEXT] button to display the Song Play Mode
screen.
6
Select the desired Play mode.
Use the data dial, the [+/YES] button or the [-/NO] button.
● Single ................................... Play through the selected song, then stop.
● S.Repeat (Single Repeat) .... Play through the selected song repeatedly.
● All ......................................... Continue playback through all the songs on the floppy
disk.
● A.Repeat (All Repeat) .......... Continue playback through all the songs on the floppy
disk repeatedly.
● Random ................................ Continue playback through all the songs at random.
7
Press the [START/STOP] button to start the song.
8
Press the [START/STOP] button again to stop the song.
S.Menu =PlyMode
PlyMode=Single
PlyMode=Single
1
REC
2
REC
3
REC
4
REC
5
REC
6
REC
7
REC
8
REC
9
REC
10
REC
11
REC
12
REC
13
REC
14
REC
15
REC
16
REC
TRANSPOSE
REGIST-
RATION
TEMPO
MEASURE
BEAT
002 TECHNO
DSP(FAST)
SUSTAIN
HARMONY
TOUCH
CHORD
dim
mM
6
7
augsus4
119
513
BACK
NEXT
KEYBOARD
START/STOP
/YES
TRACK(1~16)
PA RT
DIAL
0~9
FUNCTION
SONG
STYLE
VOICE LR12
EASY
NAVIGATOR
67
